19-23 Ram 1500 (Coil/Coil) Suspension Lift Kit - ICON Vehicle Dynamics - K213112T

SUSPENSION SYSTEM
K213112T
OEM Wheels and Tires Fitment: Yes
Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.
00" Backspace / 0mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.
00" Backspace / 0mm Offset
Recommended Aftermarket Tires: 35" x 12.
50" (fender trimming and modifications will be required.
)
APPLICATION NOTE #55: Shocks are fully serviceable.
Lift heights indicated are for a stock equipped vehicle.
APPLICATION NOTE #99: Performance rear springs may cause reduced ride height while towing
APPLICATION NOTE #100: Spring not rated for EcoDiesel equipped trucks
APPLICATION NOTE #105: Not for vehicles with rear factory air ride
APPLICATION NOTE #131: Will not fit 2019-UP Ram 1500 Classic models
APPLICATION NOTE #184: Will not fit Ram 1500 TRX
TECH NOTE: 2019-2023 Ram 1500 Rebel will have front lift height range of 1.
25-2.
25" over stock and 1" of rear lift over stock

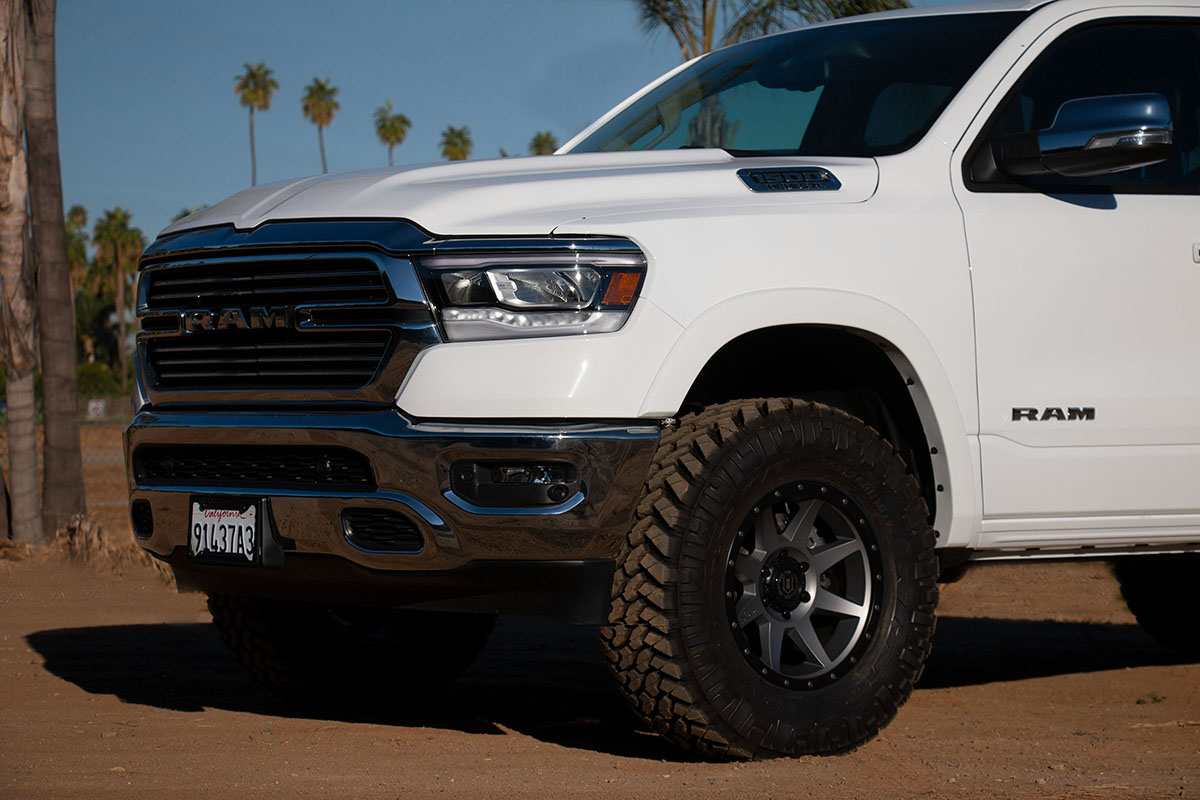

19-23 RAM 1500 2-3" STAGE 2 SUSPENSION SYSTEM W/ TUBULAR UCA
ICON 2019-2023 Ram 1500 suspension systems are designed with maximum performance and the serious driver in mind.
ICON's primary focus is to increase wheel travel and damping ability, translating to outstanding control and ride quality.
ICON Vehicle Dynamics 2019-2023 Ram 1500 suspension systems are designed with maximum performance and the serious driver in mind.
ICON engineers’ primary focus is to increase wheel travel and damping ability, which translates into outstanding vehicle control and ride quality both on and off-road.
This Stage 2 system includes vehicle-specific tuned 2.
5” coilover shocks featuring an internal reservoir for exceptional cooling properties and ICON-engineered coil springs for superior vehicle “feel” through the range of travel.
These coilovers, are also height adjustable for 2-3” of front lift over stock, allowing the use of larger, more aggressive wheel and tire combinations and their longer than stock length improves performance by increasing front wheel travel.
Tubular Delta Joint upper control arms not only add strength and durability, but help retain factory alignment specs, increasing caster over stock and allow proper wheel alignment at the lift height this system provides.
The dual-rate rear coil design provides a softer ride height spring rate with a firmer overload rate that combine to deliver on-road comfort with excellent bottoming resistance and superior off-road performance.
1.
5” of rear lift height over stock allows a for level stance front to rear.
ICON 2.
0 Aluminum Series internal reservoir rear shocks utilize a vehicle-specific valving that balances the performance of the truck from front to rear.
The ICON Vehicle Dynamics 2019-2023 Ram 1500 Stage 2 suspension system is an excellent choice for those drivers looking to enhance the capabilities of their pickup on the road as well as in the dirt.
This system features upper control arms with ICON's patented Delta Joint.
The Delta Joint is a heavy-duty high angle ball joint that combines the durability of a ball joint with the performance characteristics of a traditional uniball.
While the industry standard uniball does a great job of allowing the control arms of a vehicle to articulate with little bind, they do have an inherent weakness that leaves more to be desired when used in a daily driven application - exposure to the elements.
The Delta Joint features a zinc plated housing providing the first layer of corrosion resistance, while a tough grease seal keeps potentially harmful elements out of the inner workings of the joint.
Metal on metal construction and a greaseable design increase the longevity of the Delta Joint while at the same time allowing for noise-free operation.
What makes the Delta Joint unique is that it brings the best of both worlds to ICON upper control arms with features that make it more robust than a uniball, and at the same time capable of greater angularity than a typical ball joint.
Increased wheel travel and ride quality over stock with no change in towing capacity
Vehicle specific tuned front and rear shocks for superior damping and vehicle control
Adjustable coilovers yield 2-3" of front lift height over stock
Corrosion resistant, 2.
5” diameter, CAD plated coilover shock bodies with 7/8" shafts
Tubular Upper Control Arms with Delta Joint ball joints for added strength, durability, and alignment spec range
2.
0 Aluminum Series rear internal reservoir shocks with 5/8" polished shafts
Dual rate rear coil springs improve performance and ride quality while providing 1.
5" of rear lift
6061 Aircraft grade aluminum CNC machined components
FK rod end bearings for extended longevity and minimal deflection
100% Bolt-on system - no drilling, cutting, or welding necessary for install
ICON 2019-2023 Ram 1500, 2-3" Lift, Stage 2 Suspension System, Tubular UCA, K213112T
ICON 2019-2023 Ram 1500, 2-3" Lift, Stage 2 Suspension System, Tubular UCA
ICON 19-23 RAM 1500 2-3" STAGE 2 SUSPENSION SYSTEM W/ TUBULAR UCA.

Detailed Fitment Results
Year Make Model Submodel Qualifiers Fitment Notes 2019 Ram 1500 SLT 2019 Ram 1500 HFE 2019 Ram 1500 ST 2019 Ram 1500 Big Horn 2019 Ram 1500 Laramie 2019 Ram 1500 Limited 2019 Ram 1500 Lone Star 2019 Ram 1500 Rebel 2019 Ram 1500 Sport 2019 Ram 1500 Tradesman 2019 Ram 1500 Laramie Longhorn 2019 Ram 1500 SXT 2020 Ram 1500 SLT 2020 Ram 1500 HFE 2020 Ram 1500 ST 2020 Ram 1500 Big Horn ; ; 2020 Ram 1500 Laramie ; ; 2020 Ram 1500 Laramie Sport 2020 Ram 1500 Limited ; ; 2020 Ram 1500 Lone Star ; ; 2020 Ram 1500 Rebel ; ; 2020 Ram 1500 Sport 2020 Ram 1500 Tradesman ; ; 2020 Ram 1500 Hemi Sport 2020 Ram 1500 Laramie Longhorn ; ; 2020 Ram 1500 Special Service 2021 Ram 1500 SLT 2021 Ram 1500 HFE 2021 Ram 1500 ST 2021 Ram 1500 Big Horn ; ; 2021 Ram 1500 Laramie ; ; 2021 Ram 1500 Laramie Sport 2021 Ram 1500 Limited ; ; 2021 Ram 1500 Lone Star ; ; 2021 Ram 1500 Rebel ; ; 2021 Ram 1500 Sport 2021 Ram 1500 Tradesman ; ; 2021 Ram 1500 Hemi Sport 2021 Ram 1500 Laramie Longhorn ; ;…
