Dodge, Ram (4WD - Coil/Coil) Suspension Lift Kit - Front and Rear - ICON Vehicle Dynamics - K213004

RAM SUSP SYS STG 4
09-18 RAM 1500 4WD.
75-2.
5" STAGE 4
OEM Wheels and Tires Fitment: Yes
Recommended Aftermarket Wheels: ICON Alloys - 17x8.
5" w/ 4.
75” BS / 0mm Offset
Recommended Aftermarket Tires: 33" x 11.
50" (Larger tires may fit but fender trimming and modifications will be required)
APPLICATION NOTE #55: Shocks Are Fully Serviceable.
Coilover Heights Indicated Are For A Stock Equipped Vehicle
APPLICATION NOTE #99: Air Bags Recommended With Performance Rear Springs If Vehicle Used For Towing
TECH NOTE: Compatible with 2019-2022 Ram 1500 Classic models.
Lift height range is.
75-2.
5" over stock
TECH NOTE: Not compatible with models equipped with OE air suspension
Ships in Multiple Boxes
09-18 RAM 1500 4WD.
75-2.
5" STAGE 4 SUSPENSION SYSTEM
2009-2018 RAM 1500 4WD.
75-2.
5" LIFT STAGE 4 SUSPENSION SYSTEM
ICON Vehicle Dynamics Dodge Ram 1500 4WD suspension systems are designed with maximum performance and the serious driver in mind.
ICON engineers’ primary focus is to increase wheel travel and damping ability, which translates into outstanding vehicle control and ride quality both on and off-road.

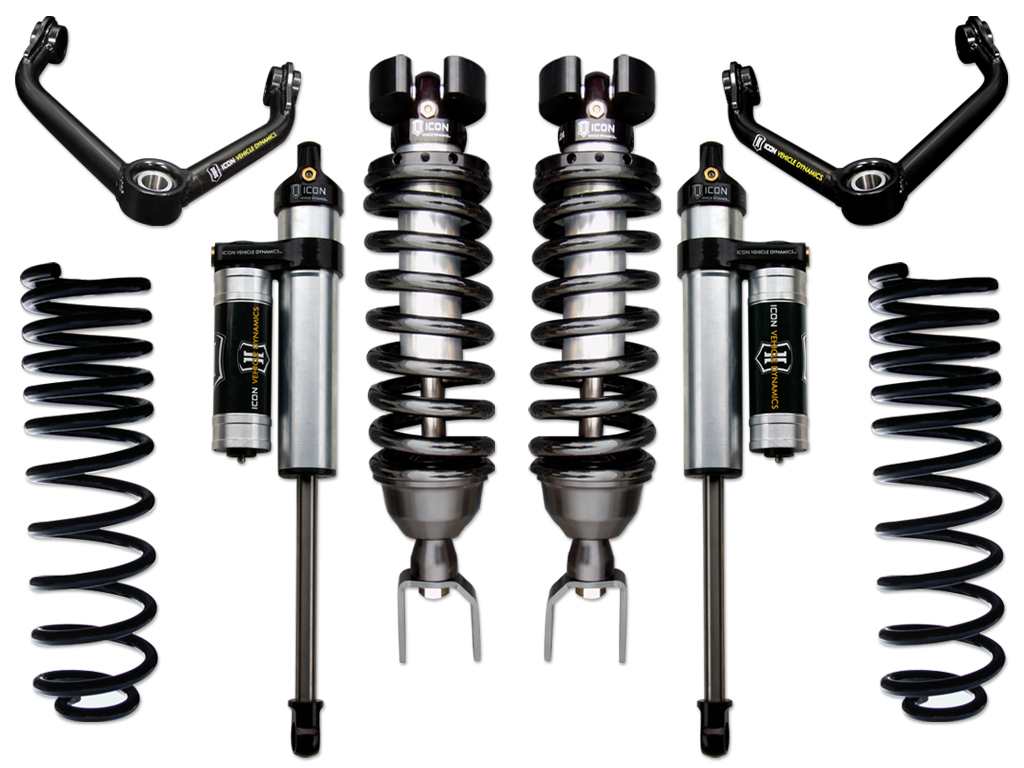

This system includes vehicle-specific tuned 2.
5” coilover shocks featuring internal reservoirs for exceptional cooling properties and ICON-engineered Eibach coil springs for superior vehicle “feel” through the range of travel.
These coilovers are also height adjustable from.
75-2.
5” of lift over stock allowing the use of larger, more aggressive wheel and tire combinations.
ICON 2.
5 Aluminum Series rear shocks utilize a vehicle-specific valving that balances the performance of the truck from front to rear.
The ICON Vehicle Dynamics 2009-2018 Dodge Ram 1500 4WD Stage 4 suspension system is an excellent choice for those drivers looking to enhance the capabilities of their pickup on the road as well as in the dirt.
This system features upper control arms with ICON's patented Delta Joint.
The Delta Joint is a heavy-duty high angle ball joint that combines the durability of a ball joint with the performance characteristics of a traditional uniball.
While the industry standard uniball does a great job of allowing the control arms of a vehicle to articulate with little bind, they do have an inherent weakness that leaves more to be desired when used in a daily driven application - exposure to the elements.
The Delta Joint features a zinc plated housing providing the first layer of corrosion resistance, while a tough grease seal keeps potentially harmful elements out of the inner workings of the joint.
Metal on metal construction and a greasable design increase the longevity of the Delta Joint while at the same time allowing for noise-free operation.
What makes the Delta Joint unique is that it brings the best of both worlds to ICON upper control arms with features that make it more robust than a uniball, and at the same time capable of greater angularity than a typical ball joint.
Increased wheel travel and ride quality over stock with no change in towing capacity
Vehicle specific tuned front and rear shocks for superior shock damping and control
Adjustable coilovers from.
75-2.
5" of lift height
6061 Aircraft grade aluminum CNC machined components
Corrosion resistant CAD plated coilover shock bodies with 7/8" shafts
2.
5 Aluminum Series rear shocks feature one-piece impact extruded aluminum cylinders for excellent corrosion resistance and consistent finish
FK rod end bearings for extended longevity and minimal deflection
100% Bolt-on system - no drilling, cutting, or welding necessary for install
ICON 2009-18 Ram 1500 4WD,.
75-2.
5" Lift, Stage 5 Suspension System, K213004
ICON 2009-18 Ram 1500 4WD,.
75-2.
5" Lift, Stage 4 Suspension System.

Detailed Fitment Results
Year Make Model Submodel Fitment Notes 2009 Dodge Ram 1500 Laramie Recommended Aftermarket Wheel Size: 17x8.5 inch with 5.75” Backspace / 25mm Offset 2009 Dodge Ram 1500 SLT Recommended Aftermarket Wheel Size: 17x8.5 inch with 5.75” Backspace / 25mm Offset 2009 Dodge Ram 1500 ST Recommended Aftermarket Wheel Size: 17x8.5 inch with 5.75” Backspace / 25mm Offset 2009 Dodge Ram 1500 Sport Recommended Aftermarket Wheel Size: 17x8.5 inch with 5.75” Backspace / 25mm Offset 2009 Dodge Ram 1500 TRX4 Recommended Aftermarket Wheel Size: 17x8.5 inch with 5.75” Backspace / 25mm Offset 2010 Dodge Ram 1500 Laramie Recommended Aftermarket Wheel Size: 17x8.5 inch with 5.75” Backspace / 25mm Offset 2010 Dodge Ram 1500 SLT Recommended Aftermarket Wheel Size: 17x8.5 inch with 5.75” Backspace / 25mm Offset 2010 Dodge Ram 1500 ST Recommended Aftermarket Wheel Size: 17x8.5 inch with 5.75” Backspace / 25mm Offset 2010 Dodge Ram 1500 Sport Recommended Aftermarket Wheel Size: 17x8.5 inch with 5.75” Backspace / 25mm Offset 2010 Dodge Ram 1500 TRX4 Recommended Aftermarket Wheel Size: 17x8.5 inch with 5.75” Backspace / 25mm Offset 2011 Ram 1500 Big Horn Recommended Aftermarket Wheel Size: 17x8.5 inch with 5.75” Backspace / 25mm Offset 2011 Ram 1500 Laramie Recommended Aftermarket Wheel Size: 17x8.5 inch with 5.75” Backspace / 25mm Offset 2011 Ram 1500 Laramie Longhorn Recommended Aftermarket Wheel Size: 17x8.5 inch with 5.75” Backspace / 25mm Offset 2011 Ram 1500 Outdoorsman Recommended Aftermarket Wheel Size: 17x8.5 inch with 5.75” Backspace / 25mm Offset 2011 Ram 1500 SLT Recommended Aftermarket Wheel Size: 17x8.5 inch with 5.75” Backspace / 25mm Offset 2011 Ram 1500 ST Recommended Aftermarket Wheel Size: 17x8.5 inch with 5.75” Backspace / 25mm Offset 2011 Ram 1500 Sport Recommended Aftermarket Wheel Size: 17x8.5 inch with 5.75” Backspace / 25mm Offset 2011 Ram 1500 Tradesman Recommended Aftermarket Wheel Size: 17x8.5 inch with 5.75” Backspace / 25mm Offset 2011 Ram 1500 SXT Recommended Aftermarket Wheel Size: 17x8.5 inch with 5.75” Backspace / 25mm Offset 2012 Ram 1500 Big Horn Recommended Aftermarket Wheel Size: 17x8.5 inch with 5.75” Backspace / 25mm Offset 2012 Ram 1500 Laramie Recommended Aftermarket Wheel Size: …
