14-22 Ram 2500 (4WD - Air) Suspension Lift Kit - Front and Rear - ICON Vehicle Dynamics - K212542A

SUSPENSION SYSTEM
14-UP RAM 2500 4WD 2.
5" STAGE 2 AIR RIDE
OEM Wheels and Tires Fitment: Yes
Recommended Aftermarket Wheels: ICON Alloys - 17x8.
5" w/ 5.
25” BS / 13mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.
50" BS / 12mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.
50" BS / 12mm Offset
Recommended Aftermarket Tires: 35" x 12.
50" (Larger tires may fit but fender trimming and modifications will be required)
APPLICATION NOTE #6: Springs Are Rated For Diesel Engines Only
APPLICATION NOTE #30: An Adjustable Track Bar May Be Needed To Realign The Axle From Left To Right, Or To Add Additional Strength
APPLICATION NOTE #55: Shocks Are Fully Serviceable.
Coilover Heights Indicated Are For A Stock Equipped Vehicle
APPLICATION NOTE #90: May Not Be Compatible With Other Manufacturers Aftermarket Trackbars
Ships in Multiple Boxes
14-UP RAM 2500 4WD 2.
5" STAGE 2 SUSPENSION SYSTEM (AIR RIDE)
2014-UP RAM 2500 4WD 2.
5" LIFT STAGE 2 SUSPENSION SYSTEM (AIR RIDE)

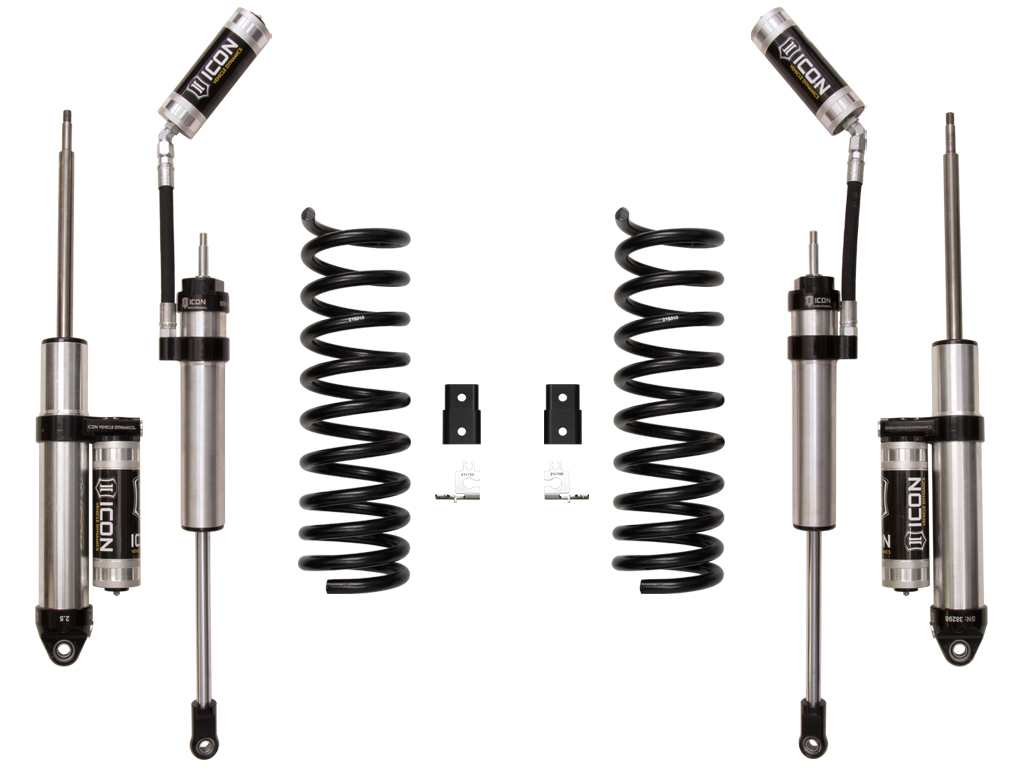

ICON's 2014-UP RAM 2500 4WD 2.
5” Stage 2 Suspension System is made up of dual rate front coil springs, necessary bracketry and hardware, as well as 2.
5 Aluminum Series reservoir front and rear shocks.
This system improves ride quality and performance both on and off road.
The ICON stage 2 system is great for towing, rough construction site terrains, and country dirt roads all while keeping a smooth highway feel.
ICON 2.
5 Aluminum Series reservoir shocks ensure optimum performance by increasing the duration of consistent damping regardless of situation, keeping the shocks at a cooler operating temperature during heavy use.
With the endless hours ICON has spent testing and tuning our suspension components and shocks as a complete package, you can rest assured you have the best suspension solution on the market.
After a thorough inspection of the Ram’s air ride assembly, ICON developed components that properly locate the airbags and associated parts so they are not over-traveled and damaged.
This air ride-specific system allows for full functionality of factory air ride modes.
Use of optional ICON 2" Air Ride Kit (Part #214212) allows for end-user adjustability of rear ride height from stock to 2" over stock.
ICON engineered dual rate coil springs with match tuned 2.
5 Series reservoir shocks
Increased wheel travel and ride quality over stock with no change in towing capacity
Less body roll than stock
No drive shaft modifications needed
Optional ICON 2" Air Ride Kit (Part #214212) allows for end-user adjustability of rear ride height
ICON 2014-Up Ram 2500 4WD, 2.
5" Lift, Stage 2 Suspension System, w/ OEM Air Ride.

Detailed Fitment Results
Year Make Model 2014 Ram 2500 2015 Ram 2500 2016 Ram 2500 2017 Ram 2500 2018 Ram 2500 2019 Ram 2500 2020 Ram 2500 2021 Ram 2500 2022 Ram 2500
