Dodge, Ram (4WD) Suspension Lift Kit - Front and Rear - ICON Vehicle Dynamics - K212505T

2.
5" SUSP SYS STG 5
03-12 RAM HD 4WD 2.
5" STAGE 5 SUSP SYS
OEM Wheels and Tires Fitment: Yes
Recommended Aftermarket Wheels: ICON Alloys - 17x8.
5" w/ 5.
25” BS / 13mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.
50" BS / 12mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.
50" BS / 12mm Offset
Recommended Aftermarket Tires: 33" x 11.
50" (Larger tires may fit but fender trimming and modifications will be required)
APPLICATION NOTE #6: Springs Are Rated For Diesel Engines Only
APPLICATION NOTE #55: Shocks Are Fully Serviceable.
Coilover Heights Indicated Are For A Stock Equipped Vehicle
Ships in Multiple Boxes
03-12 RAM 2500/3500 4WD 2.
5" STAGE 5 SUSPENSION SYSTEM
2003-2012 RAM 2500/3500 4WD 2.
5" LIFT STAGE 4 SUSPENSION SYSTEM
2003-2012 Ram 2500/3500 2.
5” Stage 5 is our ultimate performance kit, with user adjustability, that offers extraordinary diversity across any terrain.
This system not only levels out the stance, it increases ride quality and performance substantially both on and off-road.

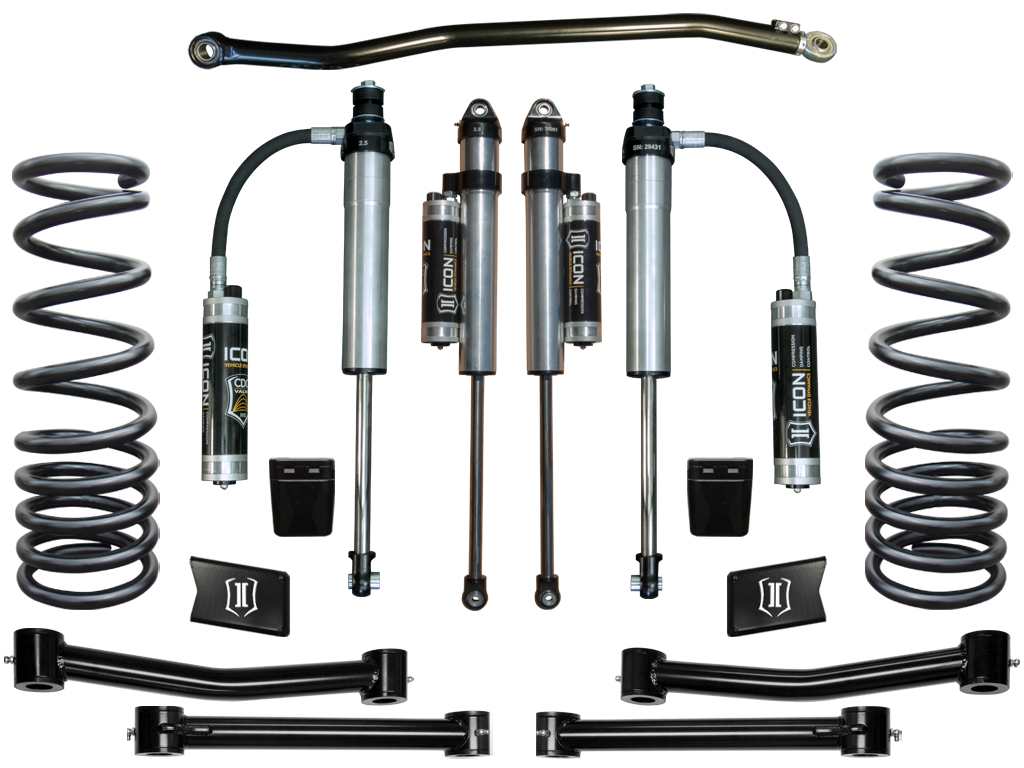

The Stage 5 System is comprised of dual rate coil springs, polyurethane bump stops, sway bar drop brackets, 2.
5 Aluminum Series shocks w/ CDCV, bearing style adjustable track bar, and front steel upper and lower links.
ICON 2.
5 Aluminum Series shocks with CDCV extend the performance of the kit by increasing the duration of consistent damping regardless of situation, and give you the ability to tune the compression damping with the turn of an external knob.
These shocks include FK bearings, billet top cap and rod ends, 7/8” shafts for strength.
The adjustable track bar with bearings not only improves rigidity over flexible factory joints, but offers adjustability to center the front axle under the truck.
ICON tubular upper and lower links offer eye catching style, polyurethane bushings to decrease the bind found in the factory link bushings, and improved alignment range.
ICON has spent endless hours testing and tuning our suspension components and shocks together, so you can rest assured you have the best suspension solution on the market.
ICON engineered dual rate coil springs with match tuned 2.
5" V.
S.
Series shocks with CDCV
2.
5 Aluminum Series front and rear shocks feature one-piece impact extruded aluminum cylinders for excellent corrosion resistance and consistent finish
CDCV (Compression Damping Control Valve) allows external adjustability of compression valving
Adjustable track bar with PTFE lined FK bearings
Heavy-duty steel upper and lower link bars
Increased wheel travel and ride quality over stock with no change in towing capacity
Level stance front to rear
Less body roll than stock
No drive shaft modifications needed
ICON 2003-12 Ram 2500/3500 4WD, 2.
5" Lift, Stage 5 Suspension System, K212505T
ICON 2003-12 Ram 2500/3500 4WD, 2.
5" Lift, Stage 5 Suspension System.

Detailed Fitment Results
Year Make Model 2003 Dodge Ram 2500 2003 Dodge Ram 3500 2004 Dodge Ram 2500 2004 Dodge Ram 3500 2005 Dodge Ram 2500 2005 Dodge Ram 3500 2006 Dodge Ram 2500 2006 Dodge Ram 3500 2007 Dodge Ram 2500 2007 Dodge Ram 3500 2008 Dodge Ram 2500 2008 Dodge Ram 3500 2009 Dodge Ram 2500 2009 Dodge Ram 3500 2010 Dodge Ram 2500 2010 Dodge Ram 3500 2011 Ram 2500 2011 Ram 3500 2012 Ram 2500 2012 Ram 3500 2013 Ram 2500
