Dodge, Ram (4WD) Suspension Lift Kit - Front and Rear - ICON Vehicle Dynamics - K212504T

2.
5" SUSP SYS STG 4
03-12 RAM HD 4WD 2.
5" STAGE 4 SUSP SYS
OEM Wheels and Tires Fitment: Yes
Recommended Aftermarket Wheels: ICON Alloys - 17x8.
5" w/ 5.
25” BS / 13mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.
50" BS / 12mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.
50" BS / 12mm Offset
Recommended Aftermarket Tires: 33" x 11.
50" (Larger tires may fit but fender trimming and modifications will be required)
APPLICATION NOTE #6: Springs Are Rated For Diesel Engines Only
APPLICATION NOTE #55: Shocks Are Fully Serviceable.
Coilover Heights Indicated Are For A Stock Equipped Vehicle
Ships in Multiple Boxes
03-12 RAM 2500/3500 4WD 2.
5" STAGE 4 SUSPENSION SYSTEM
2003-2012 RAM 2500/3500 4WD 2.
5" LIFT STAGE 4 SUSPENSION SYSTEM
2003-2012 Ram 2500/3500 2.
5" Stage 4 Suspension System is our ultimate performance kit that offers extraordinary diversity across any terrain.
This system not only levels out the stance, it increases ride quality and performance substantially both on and off-road.

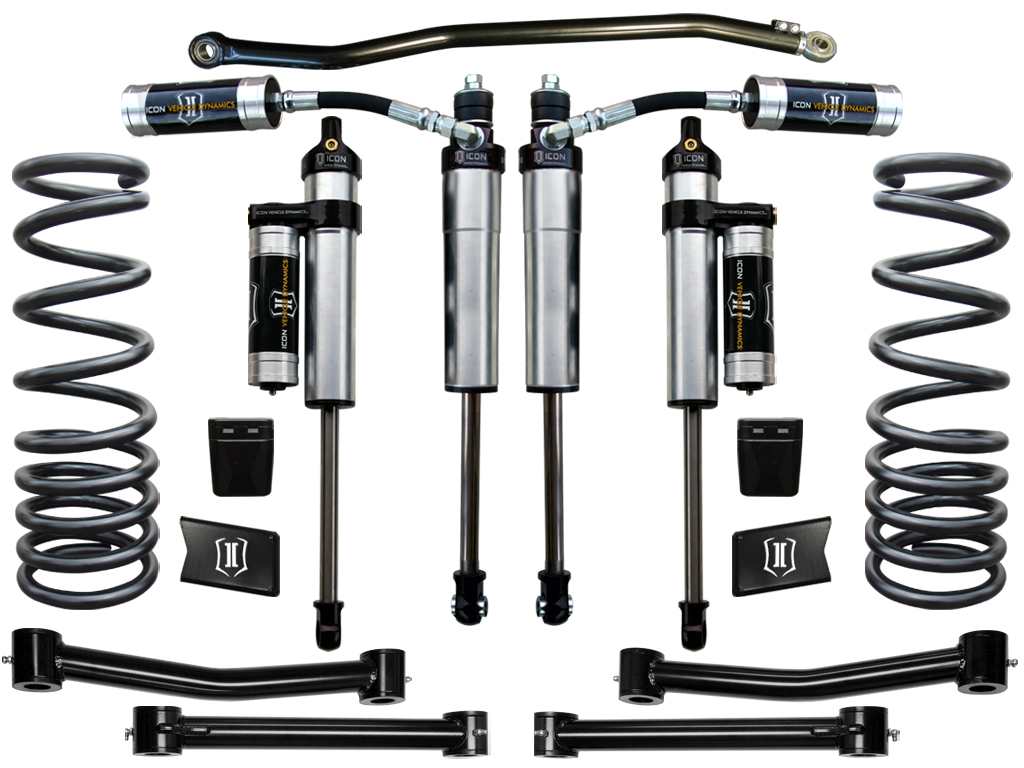

The Stage 4 System is comprised of dual rate coil springs, polyurethane bump stops, sway bar drop brackets, 2.
5" V.
S.
Aluminum Series shocks, bearing style adjustable track bar, and tubular steel upper and lower links.
ICON 2.
5" Aluminum Series shocks extend the performance of the kit by increasing the duration of consistent damping regardless of situation.
These shocks include FK bearings, billet top cap and rod ends, and 7/8" shafts for strength.
The adjustable track bar with bearings not only improves rigidity over the flexible factory joints, but offers adjustability to center the front axle under the truck.
ICON steel upper and lower links increase performance, strength, and range of alignment.
These link arms decrease the bind found in the factory link bushings.
ICON has spent endless hours testing and tuning our suspension components and shocks together, so you can rest assured you have the best suspension solution on the market.
ICON engineered dual rate coil springs with match tuned 2.
5" V.
S.
Aluminum Series shocks
2.
5 Aluminum Series shocks feature one-piece impact extruded aluminum cylinders for excellent corrosion resistance and consistent finish
Adjustable track bar with PTFE lined FK bearings
Heavy-duty steel upper and lower link bars
Increased wheel travel and ride quality over stock with no change in towing capacity
Level stance front to rear
Less body roll than stock
No drive shaft modifications needed
ICON 2003-12 Ram 2500/3500 4WD, 2.
5" Lift, Stage 4 Suspension System, K212504T
ICON 2003-12 Ram 2500/3500 4WD, 2.
5" Lift, Stage 4 Suspension System.

Detailed Fitment Results
Year Make Model 2003 Dodge Ram 2500 2003 Dodge Ram 3500 2004 Dodge Ram 2500 2004 Dodge Ram 3500 2005 Dodge Ram 2500 2005 Dodge Ram 3500 2006 Dodge Ram 2500 2006 Dodge Ram 3500 2007 Dodge Ram 2500 2007 Dodge Ram 3500 2008 Dodge Ram 2500 2008 Dodge Ram 3500 2009 Dodge Ram 2500 2009 Dodge Ram 3500 2010 Dodge Ram 2500 2010 Dodge Ram 3500 2011 Ram 2500 2011 Ram 3500 2012 Ram 2500 2012 Ram 3500 2013 Ram 2500
