Dodge, Ram (4WD) Suspension Lift Kit - Front and Rear - ICON Vehicle Dynamics - K212501

2.
5" SUSP SYS STG 1
03-12 RAM HD 4WD 2.
5" STAGE 1 SUSP SYS
OEM Wheels and Tires Fitment: Yes
Recommended Aftermarket Wheels: ICON Alloys - 17x8.
5" w/ 5.
25” BS / 13mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.
50" BS / 12mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.
50" BS / 12mm Offset
Recommended Aftermarket Tires: 33" x 11.
50" (Larger tires may fit but fender trimming and modifications will be required)
APPLICATION NOTE #6: Springs Are Rated For Diesel Engines Only
APPLICATION NOTE #30: An Adjustable Track Bar May Be Needed To Realign The Axle From Left To Right, Or To Add Additional Strength
APPLICATION NOTE #55: Shocks Are Fully Serviceable.
Coilover Heights Indicated Are For A Stock Equipped Vehicle
Ships in Multiple Boxes
03-12 RAM 2500/3500 4WD 2.
5" STAGE 1 SUSPENSION SYSTEM
2003-2012 RAM 2500/3500 4WD 2.
5" LIFT STAGE 1 SUSPENSION SYSTEM
2003-2012 Ram 2500/3500 2.
5 Inch Stage 1 Suspension System is ICON's entry level system.
This system not only levels out the stance, it increases ride quality and performance both on and off road.

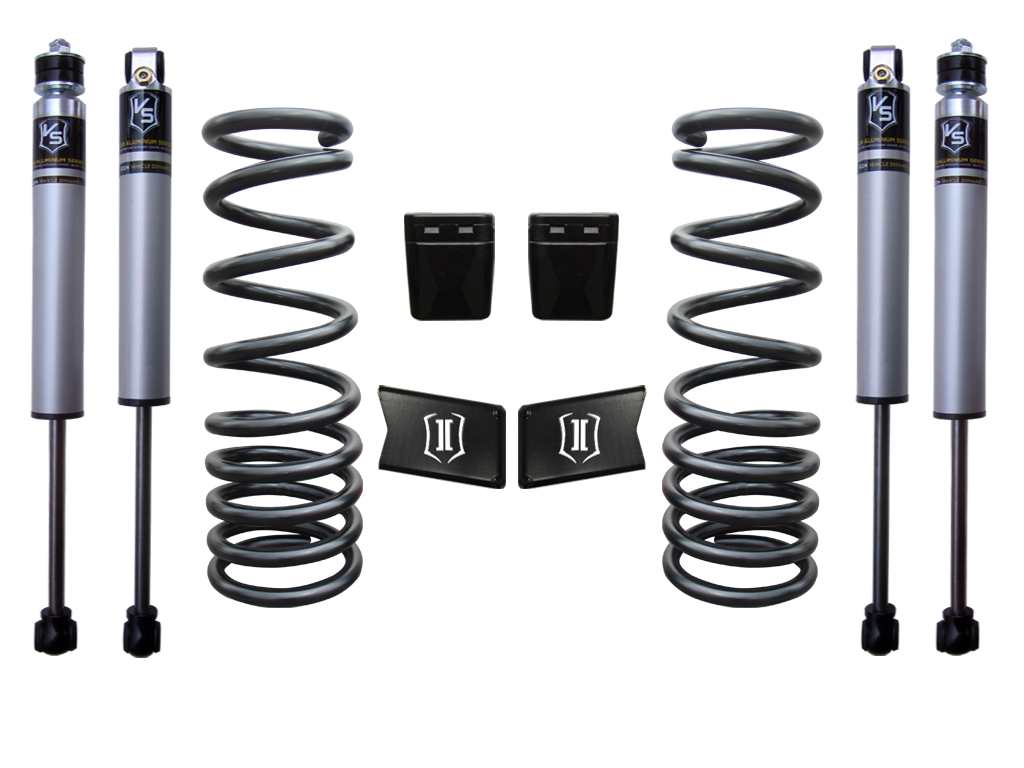

The Stage 1 System is comprised of dual rate coil springs, polyurethane bumpstops, sway bar drop brackets, and ICON 2.
0 Aluminum Series internal reservoir shocks.
This entry level system is great for towing, rough construction site terrains, and country dirt roads all while keeping a smooth highway feel.
With the endless hours ICON has spent testing and tuning our suspension components and shocks as a complete package, you can rest assured you have the best suspension solution on the market.
ICON engineered dual rate coil springs with match tuned 2.
0 Aluminum Series shocks
Increased wheel travel and ride quality over stock with no change in towing capacity
Level stance front to rear
Less body roll than stock
No drive shaft modifications needed
ICON 2003-12 Ram 2500/3500 4WD, 2.
5" Lift, Stage 5 Suspension System, K212501
ICON 2003-12 Ram 2500/3500 4WD, 2.
5" Lift, Stage 1 Suspension System.

Detailed Fitment Results
Year Make Model 2003 Dodge Ram 2500 2003 Dodge Ram 3500 2004 Dodge Ram 2500 2004 Dodge Ram 3500 2005 Dodge Ram 2500 2005 Dodge Ram 3500 2006 Dodge Ram 2500 2006 Dodge Ram 3500 2007 Dodge Ram 2500 2007 Dodge Ram 3500 2008 Dodge Ram 2500 2008 Dodge Ram 3500 2009 Dodge Ram 2500 2009 Dodge Ram 3500 2010 Dodge Ram 2500 2010 Dodge Ram 3500 2011 Ram 2500 2011 Ram 3500 2012 Ram 2500 2012 Ram 3500 2013 Ram 2500
