21-24 Ford F-150 Raptor Suspension Control Arm Kit - ICON Vehicle Dynamics - 98564DJ

UPPER CONTROL ARMS
98564DJ
OEM Wheels and Tires Fitment: Yes
Recommended Aftermarket Wheels: ICON Alloys - 17" x 8.
5" with 5" Backspace/6mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 18" x 9" with 5.
25" Backspace/6mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 20" x 9" with 5.
625" Backspace/16mm Offset
Recommended Aftermarket Tires: 35X12.
50" (Larger Tires May Fit but Fender Trimming and Modifications will be Required)
21-24 RAPTOR BILLET UCA DJ PRO KIT
ICON billet UCAs are made from CNC machined 6061 aluminum and feature PTFE-lined rod ends and ICON’s Delta Joint Pro, a hardcore high-angle ball joint that combines the durability of a ball joint with the performance of a uniball.
This ICON billet aluminum upper control arm kit is designed to improve the overall performance of the new Gen3 Ford Raptor with corrected front end geometry, adjustable camber and caster, and improved suspension component clearance.
These are constructed of CNC machined 6061 billet aluminum merging light weight with high strength properties.
Replacing the OE ball joint with the ICON Delta Joint PRO allows for full bump and droop travel of the front suspension while eliminating bind.

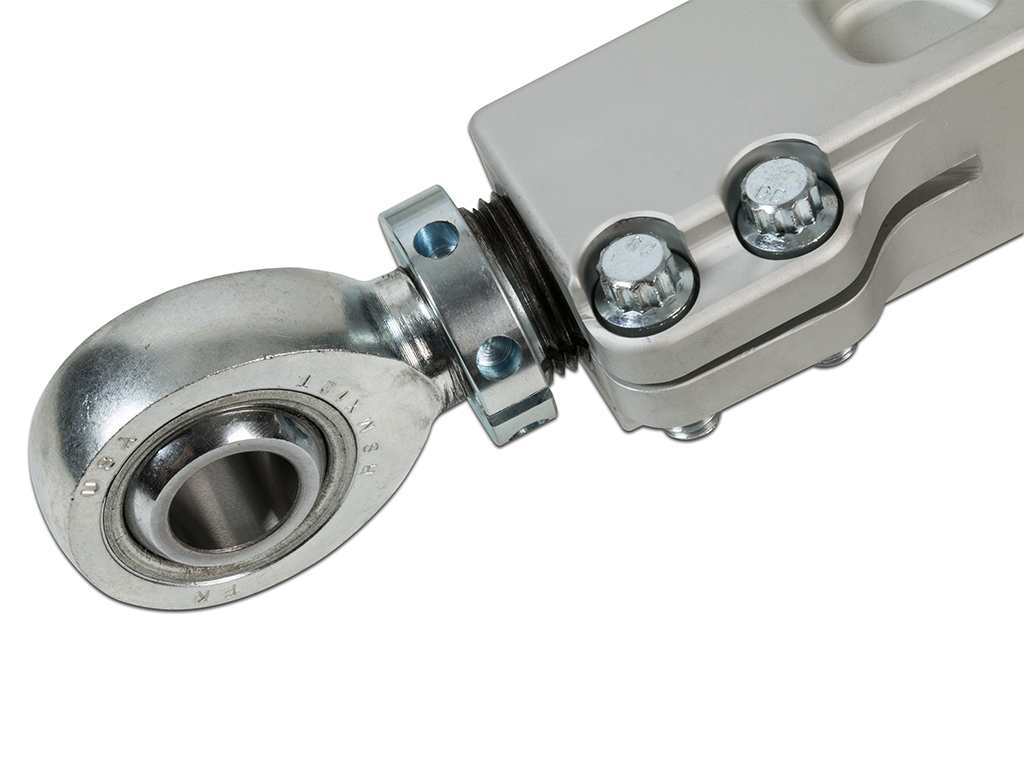

FK Rod End 7/8” heim joints provide precise and smooth function throughout the range of travel while ICON’s signature double adjuster sleeve allows for on-vehicle camber and caster adjustment.
Included with all components and hardware necessary for a complete install, these billet UCAs are the perfect upgrade for the 2021-2023 Ford Raptor.
Delta Joint PRO is ICON's innovative new suspension articulation joint which combines the durability and longevity of factory style ball joints with performance and strength that exceeds traditional motorsports-style ball joints.
Strength and durability are improved by using a larger ball with 56% more bearing surface than our standard Delta Joint, along with improved lubrication sealing.
But improved performance is at the heart of the Delta Joint PRO, with a full 90 degrees of articulation, from one extreme to the other.
This represents a 14% improvement in range of motion, over the highly capable original Delta Joint, allowing for maximum bind-free suspension movement through the complete range of travel.
The Delta Joint PRO is built to take the abuse, with a chromoly ball and shaft that has a bearing surface hardened to Rockwell C 55.
The replaceable races are made of graphite-impregnated sintered metal, machined to the finest tolerance to provide a flawless, metal-to-metal bearing interface.
We also redesigned the lubrication system, with lubricant channels that distribute grease more efficiently without extending past the bearing seal.
CNC machined 6061 billet aluminum construction with satin anodized finish
Corrects suspension geometry and allows for proper wheel alignment on Gen3 Raptors with up to 3” of front lift
Quick, precise, on-vehicle adjustment for both caster and camber
Patented Delta Joint PRO (U.
S.
Pat.
10,731,700) allows maximum articulation without binding
Delta Joint PRO is 100% serviceable and rebuildable
FK Rod Ends at chassis pivots for strength and precision driving characteristics
Built in O-ring sealed dust cover cap
ICON 2021-2024 Ford F-150 Raptor, Billet Upper Control Arm w/ Delta Joint Pro, Kit, 98564DJ
ICON 2021-2024 Ford F-150 Raptor, Billet Upper Control Arm w/ Delta Joint Pro, Kit
ICON 21-24 RAPTOR BILLET UCA DJ PRO KIT.

Detailed Fitment Results
Year Make Model Submodel 2021 Ford F-150 Raptor 2022 Ford F-150 Raptor 2023 Ford F-150 Raptor 2024 Ford F-150 Raptor
