21-24 Ford F-150 (4WD - Leaf) Suspension Control Arm - ICON Vehicle Dynamics - 98522DJ

UCA KIT
98522DJ
OEM Wheels and Tires Fitment: Not compatible with all available OE wheel/tire combinations.
Aftermarket wheels with lower offset/less backspace recommended.
Recommended Aftermarket Wheels: ICON Alloys - 17x8.
5" w/ 5” Backspace / 6mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.
25" Backspace / 6mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.
625" Backspace / 16mm Offset
Recommended Aftermarket Tires: 34" x 12.
50" (Larger Tires May Fit but Fender Trimming and Modifications will be Required)
APPLICATION NOTE #129: Will not work with factory installed electronically controlled suspension
TECH NOTE: Only compatible with OE or ICON steering knuckles.
DO NOT install in combination with ANY other aftermarket steering knuckles.
TECH NOTE: Compatible with 1.
75-3.
5" of front lift on all F-150 submodels except Raptor and Tremor with OE steering knuckles
TECH NOTE: Compatible with 3.
5-4.
5" of front lift on all F-150 submodels except Raptor and Tremor with ICON Front Knuckle Kit Part # 94000
TECH NOTE: Compatible with 1-3" of front lift over stock on F-150 Tremor with OE steering knuckles
TECH NOTE: Not compatible with F-150 Raptor
21-24 F150 TUBULAR UCA DJ PRO KIT

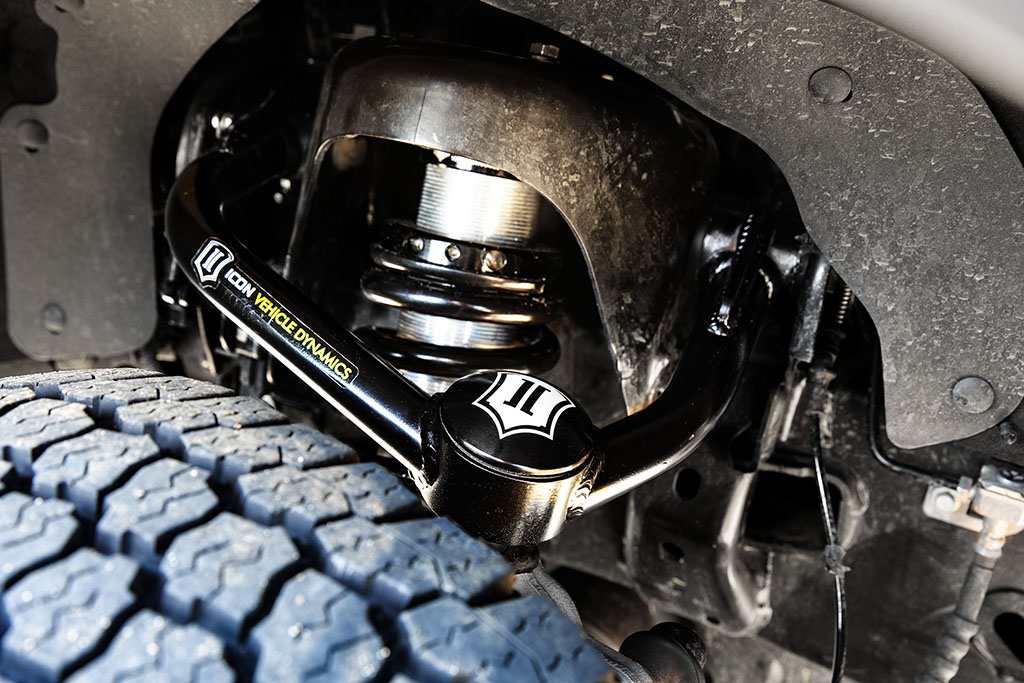

ICON tubular upper control arms feature 1026 DOM tube construction, polyurethane bushings, and ICON’s Delta Joint Pro, a rebuildable high-angle ball joint with the the durability of a ball joint and the performance of a traditional uniball.
These tubular steel upper control arms free up your 2021-2024 Ford F-150 front suspension movement to allow maximum travel for performance shocks and coilovers at an easier price point compared to our range-topping billet components.
Additional caster is built in to correct geometry to allow for better front-end alignment on lifted vehicles.
The all-new Delta Joint PRO provides a host of durability and performance improvements compared to our standard Delta Joints, including up to 90° of free articulation to maximize suspension travel without bind.
It’s also larger and fully rebuildable.
The Delta Joint PRO’s grease fitting is protected by an anodized billet aluminum dust cap, included with the kit.
Serviceable Heavy Duty Dual Stage bushings at the frame pivots are greaseable and rebuildable, and fit into precision machined bushing housings to ensure a responsive driving experience.
ICON Tubular Upper Control Arms are constructed of heavy wall DOM tubing, CNC formed and fixture welded before receiving our multi-stage black powder coat finish.
Includes all components and hardware necessary for a complete install, these tubular UCAs are the perfect front end upgrade for the 2021-2024 Ford F-150.
ICON suspension components with the all-new Delta Joint PRO represent the state of the art in off-road performance and durability.
Delta Joint PRO is ICON's innovative new suspension articulation joint which combines the durability and longevity of factory style ball joints with performance and strength that exceeds traditional motorsports-style ball joints.
The Delta Joint PRO features a new rebuildable, serviceable design in which any component may be removed, inspected, and replaced without having to purchase a whole new joint.
Strength and durability are improved by using a larger ball with 56% more bearing surface than our standard Delta Joint, along with improved lubrication sealing.
But improved performance is at the heart of the Delta Joint PRO, with a full 90 degrees of articulation, from one extreme to the other.
This represents a 14% improvement in range of motion, over the highly capable original Delta Joint, allowing for maximum bind-free suspension movement through the complete range of travel.
The Delta Joint PRO is built to take the abuse, with a chromoly ball and shaft that has a bearing surface hardened to Rockwell C 55.
The replaceable races are made of graphite-impregnated sintered metal, machined to the finest tolerance to provide a flawless, metal-to-metal bearing interface.
We also redesigned the lubrication system, with lubricant channels that distribute grease more efficiently without extending past the bearing seal.
Built in added caster for better handling on lifted vehicles
Delta Joint PRO allows maximum articulation without binding
Delta Joint PRO is 100% serviceable and rebuildable
Serviceable dual stage polyurethane pivot bushings
CNC machined housings for bushings and Delta Joint PRO
1026 DOM tube construction with black powder coat finish
Includes billet dust caps for Delta Joint PRO
ICON 2021-2024 Ford F-150, Front, Tubular Upper Control Arms w/ Delta Joint Pro, 98522DJ
ICON 2021-2024 Ford F-150, Front, Tubular Upper Control Arms w/ Delta Joint Pro
ICON 21-24 F150 TUBULAR UCA DJ PRO KIT.

Detailed Fitment Results
Year Make Model Submodel 2021 Ford F-150 Police Responder 2021 Ford F-150 SSV 2021 Ford F-150 XL 2021 Ford F-150 XLT 2021 Ford F-150 Tremor 2021 Ford F-150 King Ranch 2021 Ford F-150 Lariat 2021 Ford F-150 Platinum 2022 Ford F-150 Police Responder 2022 Ford F-150 SSV 2022 Ford F-150 XL 2022 Ford F-150 XLT 2022 Ford F-150 Tremor 2022 Ford F-150 King Ranch 2022 Ford F-150 Lariat 2022 Ford F-150 Platinum 2023 Ford F-150 Police Responder 2023 Ford F-150 SSV 2023 Ford F-150 XL 2023 Ford F-150 XLT 2023 Ford F-150 Tremor 2023 Ford F-150 King Ranch 2023 Ford F-150 Lariat 2023 Ford F-150 Platinum 2024 Ford F-150 Police Responder 2024 Ford F-150 SSV 2024 Ford F-150 XL 2024 Ford F-150 XLT 2024 Ford F-150 Tremor 2024 Ford F-150 STX 2024 Ford F-150 Lariat
