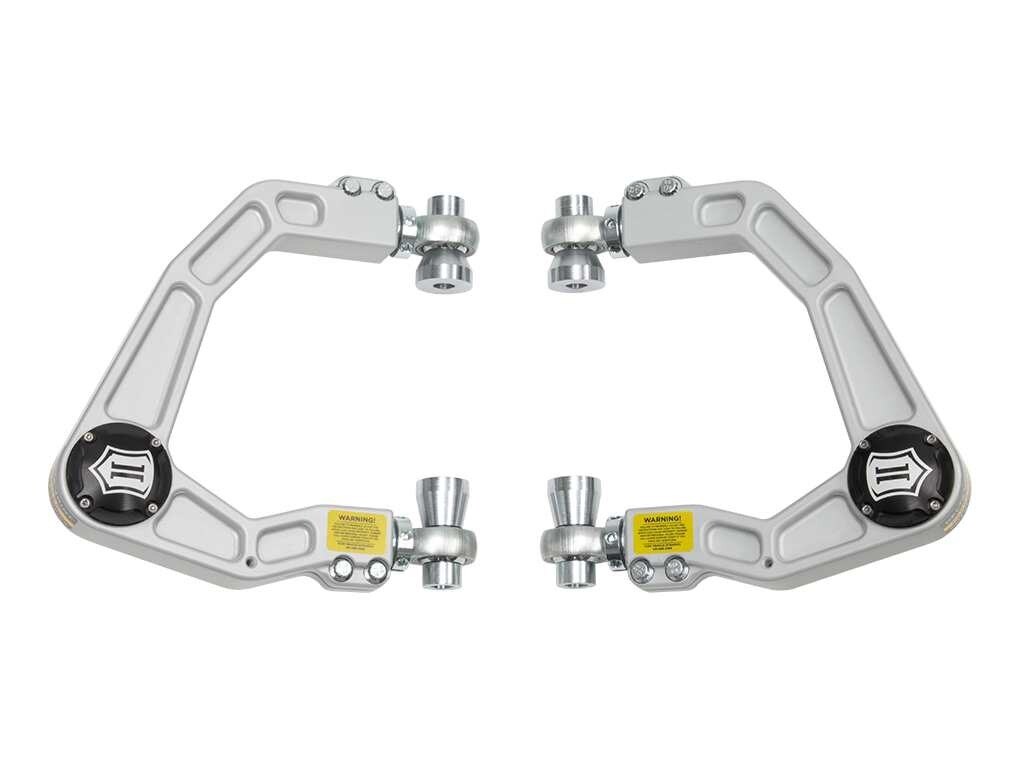

20-23 Ford Ranger Suspension Control Arm Kit - Front Upper - ICON Vehicle Dynamics - 98521DJ

BILLET UCA KIT
98521DJ
TECH NOTE: Compatible with 2020-2023 Rangers equipped with steel knuckles only
TECH NOTE: Not compatible with Ranger Raptor
20-23 RANGER BILLET UCA DJ KIT (STEEL KNUCKLE ONLY)
ICON billet UCAs are made from CNC machined 6061 aluminum and feature PTFE-lined rod ends and ICON’s Delta Joint, a hardcore high-angle ball joint that combines the durability of a ball joint with the performance of a traditional uniball.
This ICON billet aluminum upper control arm kit is designed to improve the overall performance of the 2020-2023 Ford Ranger with corrected front-end geometry, adjustable camber and caster, and improved suspension component clearance.
These are constructed of CNC machined 6061 billet aluminum merging light weight with high strength properties.
Replacing the OE ball joint with the ICON Delta Joint allows for full bump and droop travel of the front suspension while eliminating bind.
FK Rod End 7/8” heim joints provide precise and smooth function throughout the range of travel while ICON’s signature double adjuster sleeve allows for on-vehicle camber and caster adjustment.
Included with all components and hardware necessary for a complete install, these billet UCAs are the perfect upgrade for the 2020-2023 Ford Ranger truck.
These upper control arms feature ICON's patented Delta Joint.
The Delta Joint is a heavy-duty high angle ball joint that combines the durability of a ball joint with the performance characteristics of a traditional uniball.
While the industry standard uniball does a great job of allowing the control arms of a vehicle to articulate with little bind, they do have an inherent weakness that leaves more to be desired when used in a daily driven application - exposure to the elements.
The Delta Joint features a zinc plated housing providing the first layer of corrosion resistance, while a tough grease seal keeps potentially harmful elements out of the inner workings of the joint.
Metal on metal construction and a greaseable design increase the longevity of the Delta Joint while at the same time allowing for noise-free operation.
What makes the Delta Joint unique is that it brings the best of both worlds to ICON upper control arms with features that make it more robust than a uniball, and at the same time capable of greater angularity than a typical ball joint.
CNC machined 6061 billet aluminum construction for light weight and exceptional strength
Features ICON's Patented Delta Joint (U.
S.
Patent No.
10,731,700)
Camber and caster adjustability allows for precise wheel alignment
ICON double adjuster sleeves allow for on-vehicle adjustment
Vehicle specific taper pin provides OE-like fitment
PTFE Lined 7/8” FK Rod Ends for improved response
Built in o-ring sealed dust cover cap
ICON 2020-2023 Ford Ranger Billet Upper Control Arm/Delta Joint Kit, Steel Knuckles, 98521DJ
ICON 20-23 Ford Ranger Billet Upper Control Arm/Delta Joint Kit, Steel Knuckle
ICON 20-23 RANGER BILLET UCA DJ KIT (STEEL KNUCKLE ONLY).

Detailed Fitment Results
Year Make Model Submodel Fitment Notes 2020 Ford Ranger XL Recommended Aftermarket Wheel Size: 17x8.5 inch with 5.75” Backspace / 25mm Offset 2020 Ford Ranger XLT Recommended Aftermarket Wheel Size: 17x8.5 inch with 5.75” Backspace / 25mm Offset 2020 Ford Ranger Lariat Recommended Aftermarket Wheel Size: 17x8.5 inch with 5.75” Backspace / 25mm Offset 2021 Ford Ranger XL Recommended Aftermarket Wheel Size: 17x8.5 inch with 5.75” Backspace / 25mm Offset 2021 Ford Ranger XLT Recommended Aftermarket Wheel Size: 17x8.5 inch with 5.75” Backspace / 25mm Offset 2021 Ford Ranger Lariat Recommended Aftermarket Wheel Size: 17x8.5 inch with 5.75” Backspace / 25mm Offset 2021 Ford Ranger XLT Plus Recommended Aftermarket Wheel Size: 17x8.5 inch with 5.75” Backspace / 25mm Offset 2022 Ford Ranger XL Recommended Aftermarket Wheel Size: 17x8.5 inch with 5.75” Backspace / 25mm Offset 2022 Ford Ranger XLT Recommended Aftermarket Wheel Size: 17x8.5 inch with 5.75” Backspace / 25mm Offset 2022 Ford Ranger Lariat Recommended Aftermarket Wheel Size: 17x8.5 inch with 5.75” Backspace / 25mm Offset 2022 Ford Ranger XLT Plus Recommended Aftermarket Wheel Size: 17x8.5 inch with 5.75” Backspace / 25mm Offset 2023 Ford Ranger XL Recommended Aftermarket Wheel Size: 17x8.5 inch with 5.75” Backspace / 25mm Offset 2023 Ford Ranger XLT Recommended Aftermarket Wheel Size: 17x8.5 inch with 5.75” Backspace / 25mm Offset 2023 Ford Ranger Lariat Recommended Aftermarket Wheel Size: 17x8.5 inch with 5.75” Backspace / 25mm Offset
