19-21 Ford Ranger Suspension Control Arm Kit - Front Upper - ICON Vehicle Dynamics - 98510DJ

TUBULAR UCA KIT
98510DJ
TECH NOTE: Compatible with 2019-2021 Rangers equipped with aluminum knuckles only
TECH NOTE: Not compatible with Ranger Raptor.

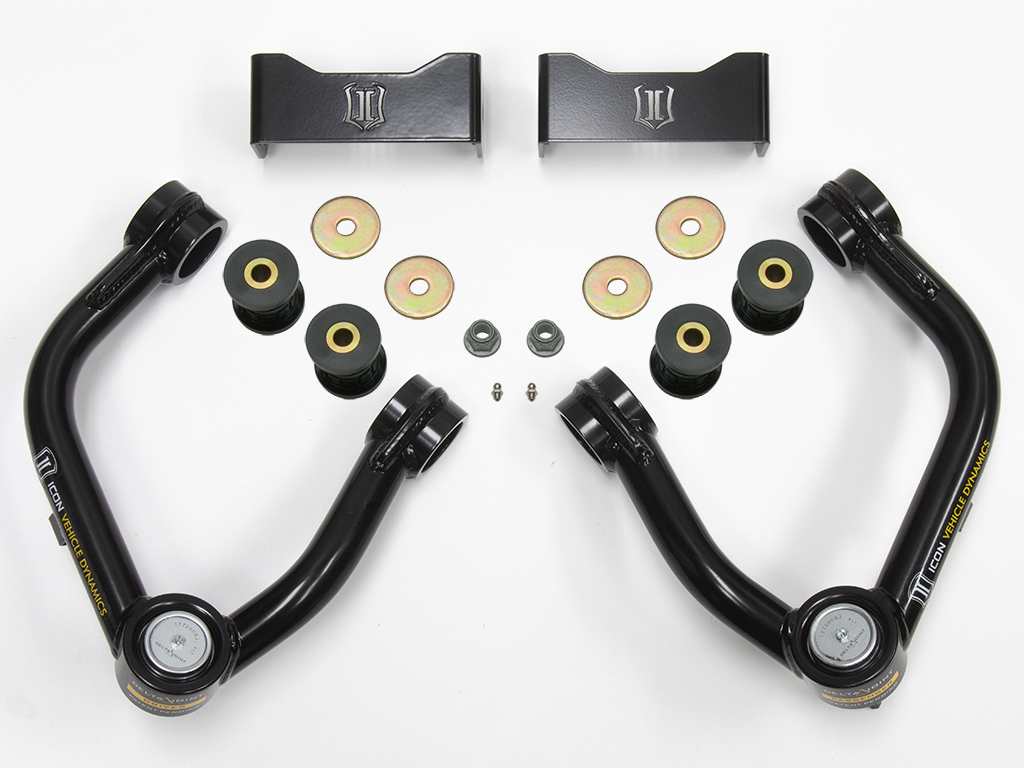

19-21 RANGER TUBULAR UCA DJ KIT (AL KNUCKLE ONLY)
These upper control arms feature ICON's patented Delta Joint, a heavy-duty high-angle ball joint that combines the durability of a ball joint with the performance characteristics of a traditional uniball.
Take the performance of your 2019-2021 Ford Ranger to new levels with the ICON Vehicle Dynamics Delta Joint tubular upper control arm kit.
All ICON tubular upper control arms are constructed from CNC bent 1026 DOM steel tubing and then powder coated to a semi-gloss black finish for maximum strength and corrosion resistance.
ICON upper control arms are engineered with built-in caster correction for optimal alignment specifications and confidence inspiring handling.
A main benefit of ICON upper control arms is the potential for increased wheel travel when paired with our 2.
5 Series coilovers, translating into superior performance and ride quality for your vehicle.
These upper control arms feature ICON's patented Delta Joint.
The Delta Joint is a heavy-duty high angle ball joint that combines the durability of a ball joint with the performance characteristics of a traditional uniball.
While the industry standard uniball does a great job of allowing the control arms of a vehicle to articulate with little bind, they do have an inherent weakness that leaves more to be desired when used in a daily driven application - exposure to the elements.
The Delta Joint features a zinc plated housing providing the first layer of corrosion resistance, while a tough grease seal keeps potentially harmful elements out of the inner workings of the joint.
Metal on metal construction and a greaseable design increase the longevity of the Delta Joint while at the same time allowing for noise-free operation.
What makes the Delta Joint unique is that it brings the best of both worlds to ICON upper control arms with features that make it more robust than a uniball, and at the same time capable of greater angularity than a typical ball joint.
Features ICON's Patented Delta Joint (U.
S.
Patent No.
10,731,700)
1026 DOM Steel Construction
CNC Bent Tubing
Serviceable Dual Stage Bushings
CNC Machined Bushing Housings and Sleeves
Built-In Caster Correction
Black Semi-Gloss Powder Coat Finish
ICON 2019-2021 Ford Ranger Tubular Upper Control Arm/Delta Joint Kit, Aluminum Knuckle, 98510DJ
ICON 2019-2021 Ford Ranger Tubular Upper Control Arm/Delta Joint Kit, Al Knuckle
ICON 19-21 RANGER TUBULAR UCA DJ KIT (AL KNUCKLE ONLY).

Detailed Fitment Results
Year Make Model Submodel Fitment Notes 2019 Ford Ranger XL Recommended Aftermarket Wheel Size: 17x8.5 inch with 5.75” Backspace / 25mm Offset 2019 Ford Ranger XLT Recommended Aftermarket Wheel Size: 17x8.5 inch with 5.75” Backspace / 25mm Offset 2019 Ford Ranger Lariat Recommended Aftermarket Wheel Size: 17x8.5 inch with 5.75” Backspace / 25mm Offset 2020 Ford Ranger XL Recommended Aftermarket Wheel Size: 17x8.5 inch with 5.75” Backspace / 25mm Offset 2020 Ford Ranger XLT Recommended Aftermarket Wheel Size: 17x8.5 inch with 5.75” Backspace / 25mm Offset 2020 Ford Ranger Lariat Recommended Aftermarket Wheel Size: 17x8.5 inch with 5.75” Backspace / 25mm Offset 2021 Ford Ranger XL Recommended Aftermarket Wheel Size: 17x8.5 inch with 5.75” Backspace / 25mm Offset 2021 Ford Ranger XLT Recommended Aftermarket Wheel Size: 17x8.5 inch with 5.75” Backspace / 25mm Offset 2021 Ford Ranger Lariat Recommended Aftermarket Wheel Size: 17x8.5 inch with 5.75” Backspace / 25mm Offset 2021 Ford Ranger XLT Plus Recommended Aftermarket Wheel Size: 17x8.5 inch with 5.75” Backspace / 25mm Offset
