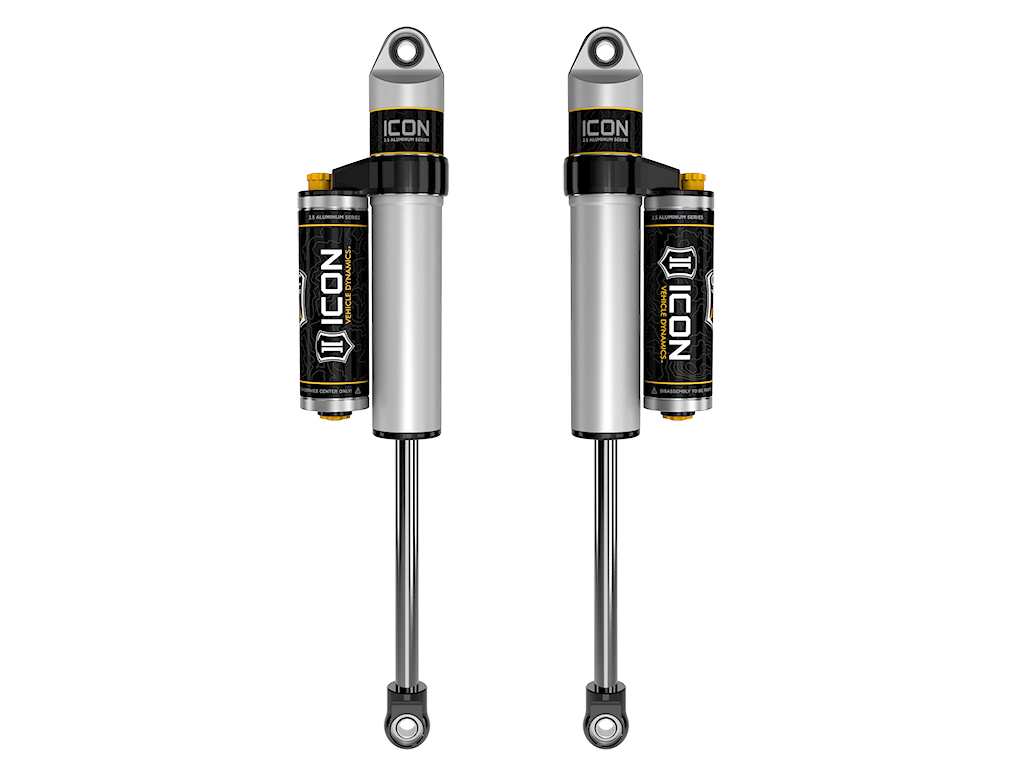

19-23 Ford Ranger Suspension Shock Absorber Set - Rear - ICON Vehicle Dynamics - 97730CP

SHOCK ABSORBER PAIR
97730CP
TECH NOTE: Compatible with Rangers equipped with 0-1.
5" of rear lift over stock
TECH NOTE: Not compatible with Ranger Raptor
19-23 RANGER REAR 2.
5 VS PB CDCV PAIR
ICON 2.
5 Series shocks are designed to give you outstanding performance off-road and a smooth ride on the street.
With a vehicle-specific design, these shocks are configured specifically for each application in both length and damping tune.
ICON Vehicle Specific (V.
S.
) 2.
5 Aluminum Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street.
These shocks are configured specifically for each application in both length and damping tune.
Like all ICON'S Shock Absorbers, V.
S.
2.
5 Aluminum Series shocks are 100% rebuildable and 100% revalveable.
For piggyback and specific remote reservoir applications, ICON'S unique use of a 6061 billet aluminum manifold a few inches below the top cap of the shock creates an internal Bump Zone that when used creates an additional 20% of damping force.
This additional force helps prevent harsh bottom outs and controls the suspension when compressing at high velocity.
The ICON CDC Valve is an externally adjustable valve that restricts oil flow into the reservoir which creates 10 levels of compression damping force ranges.
ICON's CDC Valve technology allows for 10 levels of high-resolution compression adjustability with the turn of a knob
ICON’s internal “Bump Zone” increases damping by 20% to provide more control as the shock approaches full compression
Remote reservoir design improves heat dissipation to reduce shock fade during prolonged use
Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
Nitrogen charged monotube design with piggyback reservoir
One piece digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
7/8” diameter induction hardened, chrome plated shock shaft
PTFE lined spherical bearings and application specific mounting hardware
6061 aircraft grade aluminum CNC machined components
One-piece impact extruded aluminum cylinders offer excellent corrosion resistance and consistent finish
100% Rebuildable
100% Revalveable
ICON 2019-2023 Ford Ranger, Rear 2.
5 VS Shocks w/Piggyback Reservoir/CDCV, Pair, 97730CP
ICON 2019-2023 Ford Ranger, Rear 2.
5 VS Shocks w/Piggyback Reservoir/CDCV, Pair
ICON 19-23 RANGER REAR 2.
5 VS PB CDCV PAIR.

Detailed Fitment Results
Year Make Model Submodel 2019 Ford Ranger XL 2019 Ford Ranger XLT 2019 Ford Ranger Lariat 2020 Ford Ranger XL 2020 Ford Ranger XLT 2020 Ford Ranger Lariat 2021 Ford Ranger XL 2021 Ford Ranger XLT 2021 Ford Ranger Lariat 2021 Ford Ranger XLT Plus 2022 Ford Ranger XL 2022 Ford Ranger XLT 2022 Ford Ranger Lariat 2022 Ford Ranger XLT Plus 2023 Ford Ranger XL 2023 Ford Ranger XLT 2023 Ford Ranger Lariat
