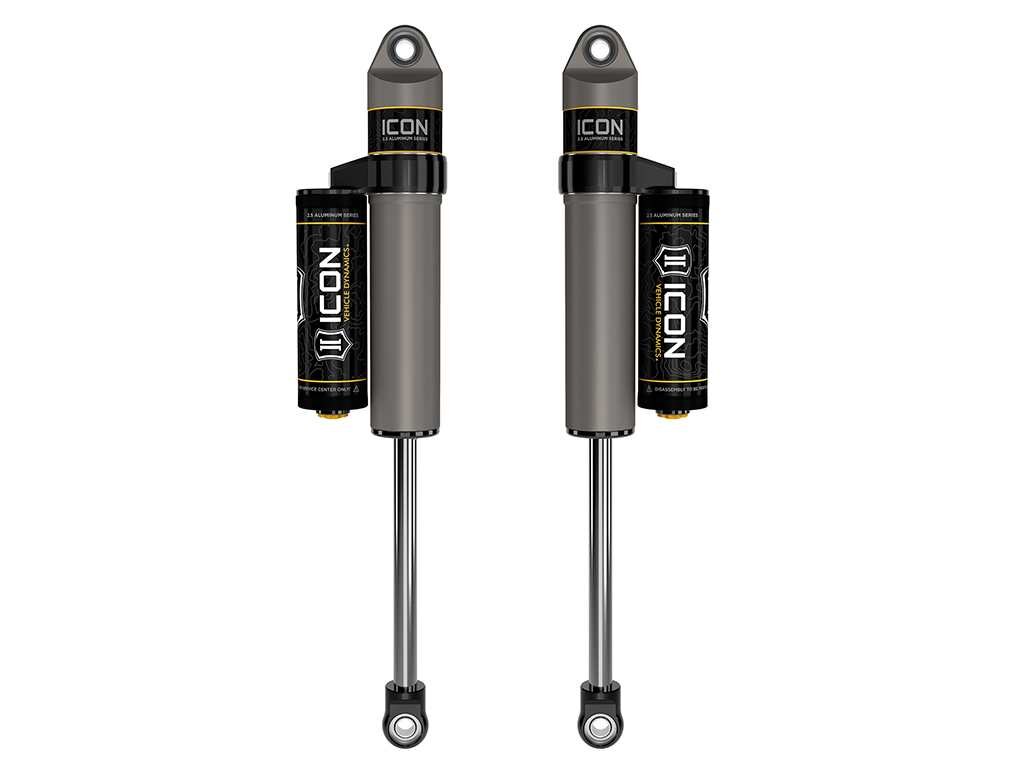

21-24 Ford F-150 (4WD - Leaf) Suspension Shock Absorber Set - ICON Vehicle Dynamics - 97721P

SHOCK ABSORBERS
97721P
APPLICATION NOTE #55: Shocks are fully serviceable.
Lift heights indicated are for a stock equipped vehicle.
APPLICATION NOTE #129: Will not work with factory installed electronically controlled suspension.
TECH NOTE: Compatible with 0-2" of rear lift over stock on most F-150 4WD models
TECH NOTE: Not compatible with F-150 Raptor
TECH NOTE: Not compatible with models equipped with BlueCruise
21-24 F150 4WD TREMOR REAR 2.
5 VS PB PAIR
ICON 2.
5 Series shocks are configured specifically for each application in both length and damping tune.
Piggyback reservoir improves cooling and creates an internal Bump Zone that when used creates an additional 20% of damping force.
ICON Vehicle Specific (V.
S.
) 2.
5 Aluminum Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street.
These shocks are configured specifically for each application in both length and damping tune.
Like all ICON'S Shock Absorbers, V.
S.
2.
5 Aluminum Series shocks are 100% rebuildable and 100% revalveable.
For piggyback and specific remote reservoir applications, ICON'S unique use of a 6061 billet aluminum manifold a few inches below the top cap of the shock creates an internal Bump Zone that when used creates an additional 20% of damping force.
This additional force helps prevent harsh bottom outs and controls the suspension when compressing at high velocity.
If you are looking for a more user defined tune, consider looking into the Compression Damping Control Valve (CDCV) shocks.
ICON’s internal “Bump Zone” increases damping by 20% to provide more control as the shock approaches full compression
Nitrogen charged monotube design with piggyback reservoir
Piggyback reservoir design improves heat dissipation to reduce shock fade during prolonged use
All ICON 2.
5 Series Piggyback and Remote Reservoir shocks can be upgraded to ICON’s Compression Damping Control Valve (CDCV)
Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
One-piece digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
7/8” diameter induction hardened, chrome plated shock shaft
One-piece, hard anodized, impact extruded aluminum cylinders offer excellent corrosion resistance and consistent finish
PTFE lined spherical bearings and application specific mounting hardware
6061 aircraft grade aluminum CNC machined components
100% Rebuildable
100% Revalveable
ICON 2021-2024 Ford F-150 4WD/F-150 Tremor, 0-2" Lift, Rear, V.
S.
2.
5 Aluminum Series Shock Absorbers, Piggyback Reservoir, Pair, 97721P
ICON 2021-2024 Ford F-150 4WD/F-150 Tremor, 0-2" Lift, Rear, V.
S.
2.
5 Aluminum Series Shock Absorbers, Piggyback Reservoir, Pair
ICON 21-24 F150 4WD TREMOR REAR 2.
5 VS PB PAIR.

Detailed Fitment Results
Year Make Model Submodel 2021 Ford F-150 SSV 2021 Ford F-150 Police Responder 2021 Ford F-150 XL 2021 Ford F-150 XLT 2021 Ford F-150 King Ranch 2021 Ford F-150 Platinum 2021 Ford F-150 Lariat 2021 Ford F-150 Tremor 2022 Ford F-150 SSV 2022 Ford F-150 Police Responder 2022 Ford F-150 XL 2022 Ford F-150 XLT 2022 Ford F-150 Tremor 2022 Ford F-150 King Ranch 2022 Ford F-150 Lariat 2022 Ford F-150 Platinum 2023 Ford F-150 SSV 2023 Ford F-150 Police Responder 2023 Ford F-150 XL 2023 Ford F-150 XLT 2023 Ford F-150 Tremor 2023 Ford F-150 King Ranch 2023 Ford F-150 Lariat 2023 Ford F-150 Platinum 2024 Ford F-150 SSV 2024 Ford F-150 Police Responder 2024 Ford F-150 XL 2024 Ford F-150 Tremor 2024 Ford F-150 XLT 2024 Ford F-150 STX 2024 Ford F-150 Lariat
