04-24 Ford F-150 (4WD - Leaf) Suspension Shock Absorber Set - ICON Vehicle Dynamics - 97720XP

SHOCK ABSORBERS
97720XP
APPLICATION NOTE #55: Shocks are fully serviceable.
Lift heights indicated are for a stock equipped vehicle.
APPLICATION NOTE #129: Will not work with factory installed electronically controlled suspension.
TECH NOTE: Compatible with 0-1" of rear lift over stock on most F-150 models
TECH NOTE: Not compatible with F-150 Tremor or F-150 Raptor
TECH NOTE: Not compatible with models equipped with BlueCruise
09-24 F150 2/4WD 04-08 F150 4WD REAR 2.
5 VS PB CDXS PAIR

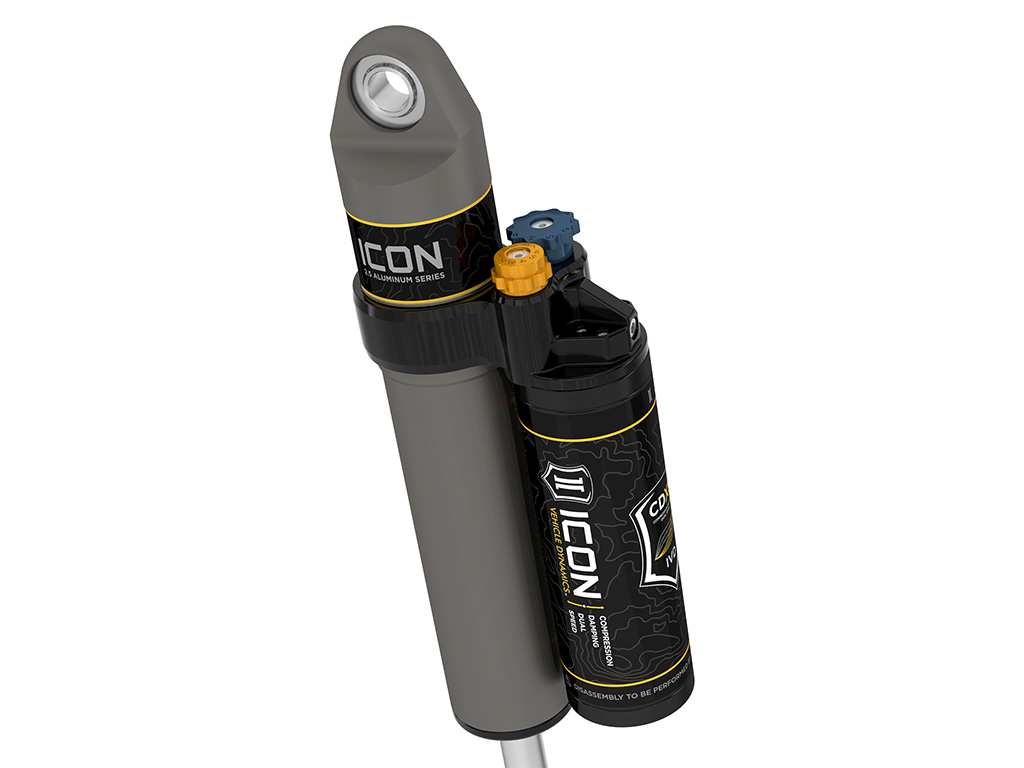

ICON 2.
5 Series shocks are configured specifically for each application.
These hardcore units are fitted with piggyback reservoirs to stay cooler during intense wheeling and ICON’s CDCV which offers 10 adjustment points.
ICON Vehicle Specific (V.
S.
) 2.
5 Aluminum Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street.
These shocks are configured specifically for each application in both length and damping tune.
Like all ICON'S Shock Absorbers, V.
S.
2.
5 Aluminum Series shocks are 100% rebuildable and 100% revalveable.
For piggyback and specific remote reservoir applications, ICON'S unique use of a 6061 billet aluminum manifold a few inches below the top cap of the shock creates an internal Bump Zone that when used creates an additional 20% of damping force.
This additional force helps prevent harsh bottom outs and controls the suspension when compressing at high velocity.
ICON's exclusive Compression Damping Dual Speed (CDXS) valves are included for precisely dialing in your suspension performance.
CDXS controls fluid flow under compression, with independent adjustability of high speed and low speed compression force.
10 discreet detented settings for both low and high-speed adjustment knobs allow separate adjustments for handling response and overall aggressiveness.
ICON CDXS equipped for independent adjustability of high speed and low speed compression force for handling response and aggressiveness
One-piece, hard anodized, impact extruded aluminum cylinders offer excellent corrosion resistance and consistent finish
ICON’s internal “Bump Zone” increases damping by 20% to provide more control as the shock approaches full compression
Piggyback reservoir design improves heat dissipation to reduce shock fade during prolonged use
Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
Nitrogen charged monotube design with piggyback reservoir
One piece digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
7/8” diameter induction hardened, chrome plated shock shaft
PTFE lined spherical bearings and application specific mounting hardware
6061 aircraft grade aluminum CNC machined components
100% Rebuildable
100% Revalveable
ICON 2009-2024 Ford F-150/2004-2008 Ford F-150 4WD, 0-1" Lift, Rear, V.
S.
2.
5 Aluminum Series Shock Absorbers, Piggyback Reservoir w/ CDXS, Pair, 97720XP
ICON 2009-2024 Ford F-150/2004-2008 Ford F-150 4WD, 0-1" Lift, Rear, V.
S.
2.
5 Aluminum Series Shock Absorbers, Piggyback Reservoir w/ CDXS, Pair
ICON 09-24 F150 2/4WD 04-08 F150 4WD REAR 2.
5 VS PB CDXS PAIR.

Detailed Fitment Results
Year Make Model Submodel 2004 Ford F-150 FX4 2004 Ford F-150 Lariat 2004 Ford F-150 STX 2004 Ford F-150 XLT 2004 Ford F-150 XL 2005 Ford F-150 FX4 2005 Ford F-150 Lariat 2005 Ford F-150 STX 2005 Ford F-150 XLT 2005 Ford F-150 XL 2005 Ford F-150 King Ranch 2006 Ford F-150 FX4 2006 Ford F-150 Lariat 2006 Ford F-150 STX 2006 Ford F-150 XLT 2006 Ford F-150 XL 2006 Ford F-150 King Ranch 2006 Ford F-150 Harley-Davidson Edition 2007 Ford F-150 FX4 2007 Ford F-150 Lariat 2007 Ford F-150 STX 2007 Ford F-150 XLT 2007 Ford F-150 XL 2007 Ford F-150 King Ranch 2007 Ford F-150 Harley-Davidson Edition 2008 Ford F-150 FX4 2008 Ford F-150 Lariat 2008 Ford F-150 STX 2008 Ford F-150 XLT 2008 Ford F-150 XL 2008 Ford F-150 King Ranch 2008 Ford F-150 Harley-Davidson Edition 2008 Ford F-150 THE 60TH ANNIVERSARY EDITION 2008 Ford F-150 XTR 2009 Ford F-150 FX4 2009 Ford F-150 XL 2009 Ford F-150 XLT 2009 Ford F-150 King Ranch 2009 Ford F-150 Platinum 2009 Ford F-150 Lariat 2009 Ford F-150 STX 2009 Ford F-150 Flotillera 2010 Ford F-150 FX4 2010 Ford F-150 XL 2010 Ford F-150 XLT 2010 Ford F-150 King Ranch 2010 Ford F-150 Platinum 2010 Ford F-150 Lariat 2010 Ford F-150 STX 2010 Ford F-150 FX2 2010 Ford F-150 Harley-Davidson Edition 2011 Ford F-150 FX4 2011 Ford F-150 XL 2011 Ford F-150 XLT 2011 Ford F-150 King Ranch 2011 Ford F-150 Platinum 2011 Ford F-150 Lariat 2011 Ford F-150 STX 2011 Ford F-150 FX2 2011 Ford F-150 Harley-Davidson Edition 2011 Ford F-150 Lariat Limited 2012 Ford F-150 FX4 2012 Ford F-150 XL 2012 Ford F-150 XLT 2012 Ford F-150 King Ranch 2012 Ford F-150 Platinum 2012 Ford F-150 Lariat 2012 Ford F-150 STX 2012 Ford F-150 FX2 2012 Ford F-150 Harley-Davidson Edition 2013 Ford F-150 FX4 2013 Ford F-150 XL 2013 Ford F-150 XLT 2013 Ford F-150 King Ranch 2013 Ford F-150 Platinum 2013 Ford F-150 Lariat 2013 Ford F-150 STX 2013 Ford F-150 FX2 2013 Ford F-150 Limited 2014 Ford F-150 FX4 2014 Ford F-150 XL 2014 Ford F-150 XLT 2014 Ford F-150 King Ranch 2014 Ford F-150 Platinum 2014 Ford F-150 Lariat 2014 Ford F-150 STX 2014 Ford F-150 FX2 2014 Ford F-150 Limited 2014 Ford F-150 Tremor 2015 Ford F-150 XL 2015 Ford F-150 XLT 2015 Ford F-150 King Ranch 2015 Ford F-150 Platinum 2015 Ford F-150 Lariat 2016 Ford F-150 XL 2016 Ford F-150 XLT 2016 Ford F-150 King Ranch 2016 Ford F-150 Platinum 2016 Ford F-150 Lariat 2016 Ford F-150 Limited 2016 Ford F-150 SSV 2017 Ford F-150 XL 2017 Ford F-150 XLT 2017 Ford F-150 King Ranch 2017 Ford F-150 Platinum 2017 Ford F-150 Lariat 2017 Ford F-150 Limited 2017 Ford F-150 SSV 2018 Ford F-150 XL 2018 Ford F-150 XLT 2018 Ford F-150 King Ranch 2018 Ford F-150 Platinum 2018 Ford F-150 Lariat 2018 Ford F-150 Limited 2018 Ford F-150 Police Responder 2018 Ford F-150 SSV 2019 Ford F-150 XL 2019 Ford F-150 XLT …
