21-24 Ford F-150 Raptor Coil Spring Set - ICON Vehicle Dynamics - 95230

COIL SPRING KIT
95230
OEM Wheels and Tires Fitment: Yes
Recommended Aftermarket Wheels: ICON Alloys - 17x8.
5" w/ 5” Backspace / 6mm Offset
Recommended Aftermarket Tires: 35" x 12.
50" (Minor fender trimming and modifications may be required)
APPLICATION NOTE #85: Advertised lift height ranges are for a stock equipped vehicle.
Increasing weight of vehicle due to accessories will alter lift range.
APPLICATION NOTE #180: Do not combine with coil spacers or damage may occur

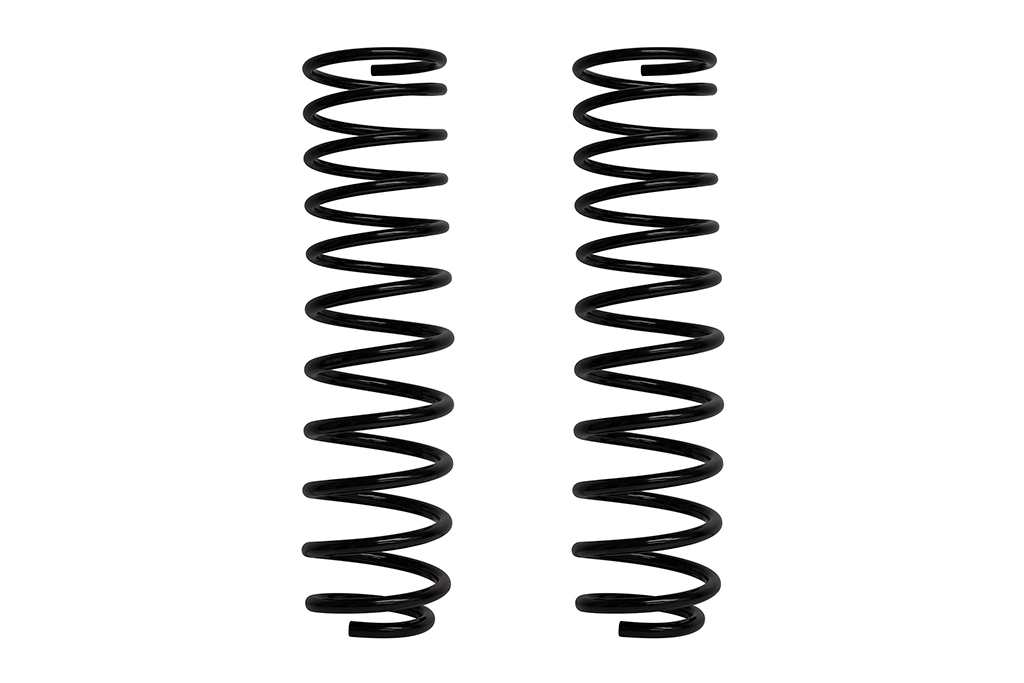

21-24 F-150 RAPTOR TRIPLE RATE REAR COIL SPRING KIT
The ICON triple-rate coil springs provide softer ride and droop rates with firmer overload rate that combine to deliver on-road comfort with excellent bottoming resistance and superior off-road performance.
ICON Triple Rate rear coil springs for 2021-2024 Ford F-150 Raptor provides a modest increase in ground clearance while greatly enhancing on- and off-road performance, especially when used with ICON shocks and suspension components.
The triple-rate coil design combines a performance ride rate for compliance and comfort, with an overload rate for load and bottom out resistance, and an extra soft initial rate for maximum droop travel.
A unique tapered wire design helps achieve maximum travel and efficiency and an extra-long free height ensures the coils stay seated in their coil buckets for up to 17” of droop travel.
In addition, these springs are also designed to net 1" of rear lift on a stock weight Gen3 Raptor for a more aggressive stance and increased fender clearance for larger wheels and tires.
Like all ICON coil springs, these feature a lifetime guarantee against sagging/breakage to provide confidence in knowing that you have the best suspension products available for the 2021-2024 Ford F-150 Raptor.
Vehicle specific design for the Gen3 F-150 Raptor
1" rear lift height over stock on Raptors without additional weight in the rear
Triple rate rear coil springs with ICON-engineered droop, ride, and overload rates
Performance ride rate for compliance and comfort, overload rate for load and bottom out resistance, extra soft initial rate for maximum droop travel
Tapered wire design achieves maximum travel and efficiency
Tall free height - will not come loose from coil buckets for up to 17” of droop
Significantly improves on- and off-road ride quality and performance over stock
Dual stage powder coating for maximum corrosion resistance
Lifetime guarantee against sagging/breakage
ICON 2021-2024 Ford F-150 Raptor, Rear, 1" Lift, Triple Rate Coil Spring Kit, 95230
ICON 2021-2024 Ford F-150 Raptor, Rear, 1" Lift, Triple Rate Coil Spring Kit
ICON 21-24 F-150 RAPTOR TRIPLE RATE REAR COIL SPRING KIT.

Detailed Fitment Results
Year Make Model Submodel Fitment Notes 2021 Ford F-150 Raptor Do Not Use with Aftermarket Coil Spacers
without Additional Weight Added to Rear of Vehicle 2022 Ford F-150 Raptor Do Not Use with Aftermarket Coil Spacers
without Additional Weight Added to Rear of Vehicle 2023 Ford F-150 Raptor Do Not Use with Aftermarket Coil Spacers
without Additional Weight Added to Rear of Vehicle 2024 Ford F-150 Raptor Do Not Use with Aftermarket Coil Spacers
without Additional Weight Added to Rear of Vehicle
