Out of Stock
Randy's Worldwide : ICON Vehicle DynamicsSKU: BSD-ICN-93502
Ford Active Suspension Control Module - N/A - ICON Vehicle Dynamics - 93502
$1,177.41
Shipping Estimate
Enter destination details for an instant shipping estimate. Final rates are confirmed at checkout.
Description
IIC INSTALL KIT
93502
TECH NOTE: An iOS operated device is required to run ICON Intelligent Control App
TECH NOTE: Also requires installation of CDEV front and rear shock absorbers
TECH NOTE: Included wire harnesses allows IIC to operate 4 CDEV equipped shocks, 2 fronts and 2 rears.
For optional CDEV secondary front shocks in addition to CDEV primary shocks, part number 191207 is also required.
23-24 FSD IIC INSTALL KIT
ICON Intelligent Control (IIC) monitors, analyzes, and processes data in real-time.
Info from the onboard G-force sensor and Gyroscope perform calculations based on algorithms and user-defined settings to predict terrain and wheel position.
ICON Intelligent Control (IIC) is the computer that monitors, analyzes, and processes data in real-time.
Information from the onboard G-force sensor and Gyroscope perform calculations based on algorithms and user-defined settings to predict terrain and wheel position.
IIC has the capability to collect information at over 1000 times per second, process the data and make adjustments, then deliver those changes to Compression Damping Electronic Valve (CDEV) in the shock absorbers in under 40 milliseconds.
IIC also works as a data driver to connect the user to ICON’s proprietary mobile App interface for monitoring and adjusting shock settings.
The IIC is mounted to the 2017-UP Ford Super Duty and the 2015-UP Ford F-150 using application specific mounting brackets, hardware and wire harnesses, ensuring an easy and clean looking install.
The IIC App brings all of this technology together by offering a user-friendly interface to monitor, record, and adjust the system’s performance via Bluetooth connection.
Users can easily alter the shocks’ baseline settings for firmness, as well as adjust the sensitivity of vertical “G-Boost” and lateral “Corner Boost” with a few simple taps from their favorite iOS device.

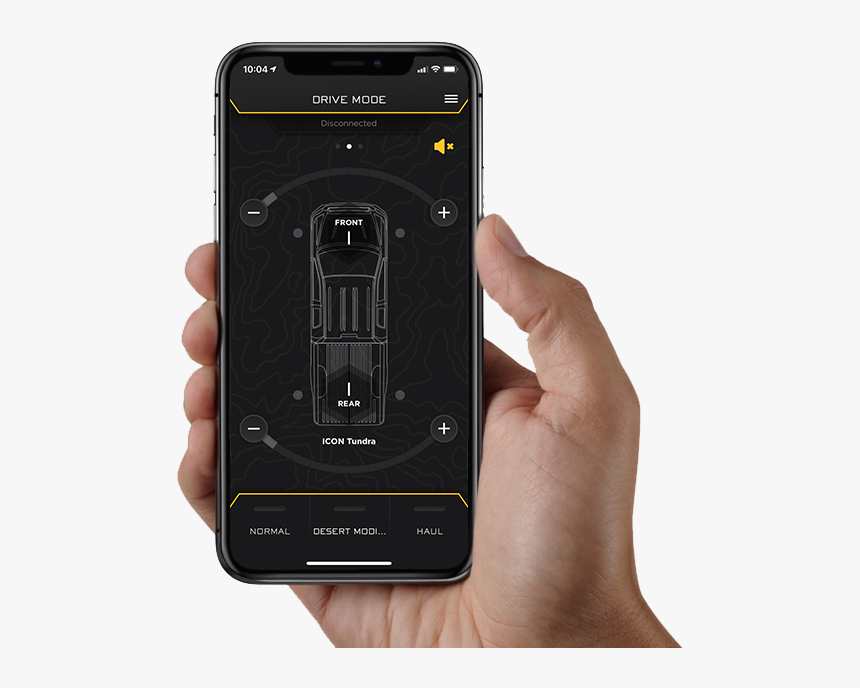

The App includes several preconfigured ‘Drive Modes’ (Normal, Desert, and Haul) but also offers the ability for users to create an unlimited number of unique presets using their own custom settings.
To top it all off, you can record data from your trip including time, speed, distance and G-Forces for your very own ICONIC Overview.
Offers selectable active shock damping adjustment as well as manual adjustment of baseline settings without exiting vehicle
Onboard sensors monitor G-forces and movement of vehicle chassis
Performs calculations based on sensor inputs, custom algorithms, and user defined settings at a rate of over 1000 times per second
Sends necessary damping adjustments to CDEV shocks that react in under 40 milliseconds
User interface provided by IIC Mobile App via Bluetooth connection to iOS device
Mobile app offers preconfigured “Drive Modes” as well as the ability to create custom presets
Also functions as a data logger for time, speed, distance, and G-force allowing you to record data from your trips
Application specific mounting brackets, hardware and wire harnesses
ICON 2023-2024 Ford F-250/F-350 Super Duty, ICON Intelligent Control Install Kit, 93502
ICON 2023-2024 Ford F-250/F-350 Super Duty, ICON Intelligent Control Install Kit
ICON 23-24 FSD IIC INSTALL KIT.
Detailed Fitment Results
Year Make Model 2023 Ford F-250 Super Duty 2023 Ford F-350 Super Duty 2024 Ford F-250 Super Duty 2024 Ford F-350 Super Duty
