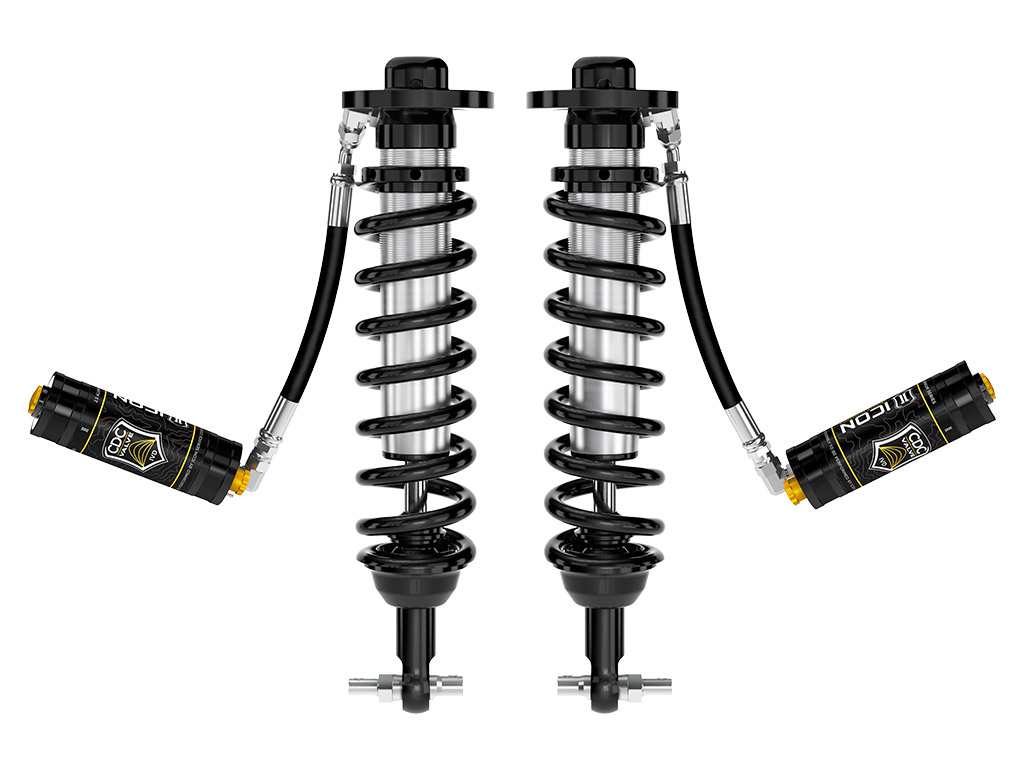

21-23 Ford F-150 (RWD - Leaf) Coilover Spring and Shock Assembly - Front - ICON Vehicle Dynamics - 91818C

COILOVER KIT
91818C
Factory Wheels and Tires Fitment: Yes
Recommended Aftermarket Wheels: ICON Alloys - 17x8.
5" w/ 5” Backspace / 6mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.
25" Backspace / 6mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.
625" Backspace / 16mm Offset
Recommended Aftermarket Tires: 33" x 11.
50" (Larger Tires May Fit but Fender Trimming and Modifications will be Required)
APPLICATION NOTE #55: Shocks are fully serviceable.
Lift heights indicated are for a stock equipped vehicle.
APPLICATION NOTE #129: Will not work with factory installed electronically controlled suspension.
APPLICATION NOTE #179: Only compatible with stock or original ICON Delta Joint UCAs.
Not compatible with ICON Delta Joint Pro UCAs.
TECH NOTE: Only compatible with rear-wheel drive (2WD) models
TECH NOTE: Models equipped with PowerBoost hybrid engines will have lift height range of 0-2.
75" over stock
TECH NOTE: Models equipped with Power-Stroke diesel engines will have lift height range of 0-2.
5" over stock
TECH NOTE: Not compatible with models equipped with BlueCruise
21-23 F150 2WD 0-3" 2.
5 VS RR CDCV COILOVER KIT
ICON 2.
5 Series coilovers with remote reservoirs with CDCV provide ride height adjustability from 0-3" of lift over stock.
The larger 2.
5” shock body and piston area over stock components provides improved damping ability and ride quality.
The ICON Vehicle Dynamics V.
S.
Series 2.
5” remote reservoir coilover shocks w/ CDCV are an incredible upgrade for the front end of the 2021-2023 Ford F-150 2WD truck.
ICON’s Vehicle-specific valving provides a sport tuned feel on and off-road while offering 0-3” of lift height adjustability for use of larger, more aggressive wheel and tire combinations.
ICON's larger 2.
5” shock body and increased piston area over stock components provides improved damping ability and outstanding ride characteristics across varying types of terrain.
Remote reservoirs ensure optimum performance by increasing the duration of consistent damping regardless of situation, keeping the shocks at a cooler operating temperature during heavy use.
The ICON CDC Valve upgrade is included for those desiring an easy way to tune the ride externally with 10 settings from soft to hard.
When paired with ICON rear 2.
0 Aluminum Series or 2.
5 Aluminum Series shocks, vehicle control will be balanced front to rear resulting in the best overall driving experience for your 2021-2023 F-150 2WD.
Increased wheel travel and ride quality over stock
100% Bolt-on - no cutting or welding necessary for installation
Vehicle specific tuned for superior shock damping and control
External reservoirs to attain cooler operating temperatures during extended off-road use
ICON CDCV equipped for external tuneability of your shocks
Adjustable 0-3" lift height over stock
ICON engineered Eibach Springs
6061 Aircraft grade aluminum CNC machined components
Corrosion resistant CAD plated shock bodies with 7/8" shafts
High strength alloy CNC machined lower bar pins
FK rod end bearings for extended longevity and minimal deflection
ICON 2021-2023 Ford F-150 2WD, 0-3" Lift, Front, V.
S.
2.
5 Series Coilovers, Remote Reservoir w/ CDCV, Pair, 91818C
ICON 2021-2023 Ford F-150 2WD, 0-3" Lift, Front, V.
S.
2.
5 Series Coilovers, Remote Reservoir w/ CDCV, Pair
ICON 21-23 F150 2WD 0-3" 2.
5 VS RR CDCV COILOVER KIT.

Detailed Fitment Results
Year Make Model Submodel Qualifiers Fitment Notes 2021 Ford F-150 XLT ; ; ; ; ; ; 2021 Ford F-150 XL ; ; ; ; ; ; 2021 Ford F-150 SSV 2021 Ford F-150 King Ranch ; ; ; ; ; ; 2021 Ford F-150 Platinum ; ; ; ; ; ; 2021 Ford F-150 Lariat ; ; ; ; ; ; 2022 Ford F-150 XLT ; ; ; ; 2022 Ford F-150 XL ; ; ; ; 2022 Ford F-150 SSV 2022 Ford F-150 Platinum ; ; ; ; 2022 Ford F-150 King Ranch ; ; ; ; 2022 Ford F-150 Lariat ; ; ; ; 2023 Ford F-150 XLT ; ; ; ; 2023 Ford F-150 XL ; ; ; ; 2023 Ford F-150 SSV 2023 Ford F-150 Platinum ; ; ; ; 2023 Ford F-150 King Ranch ; ; ; ; 2023 Ford F-150 Lariat ; ; ; ;
