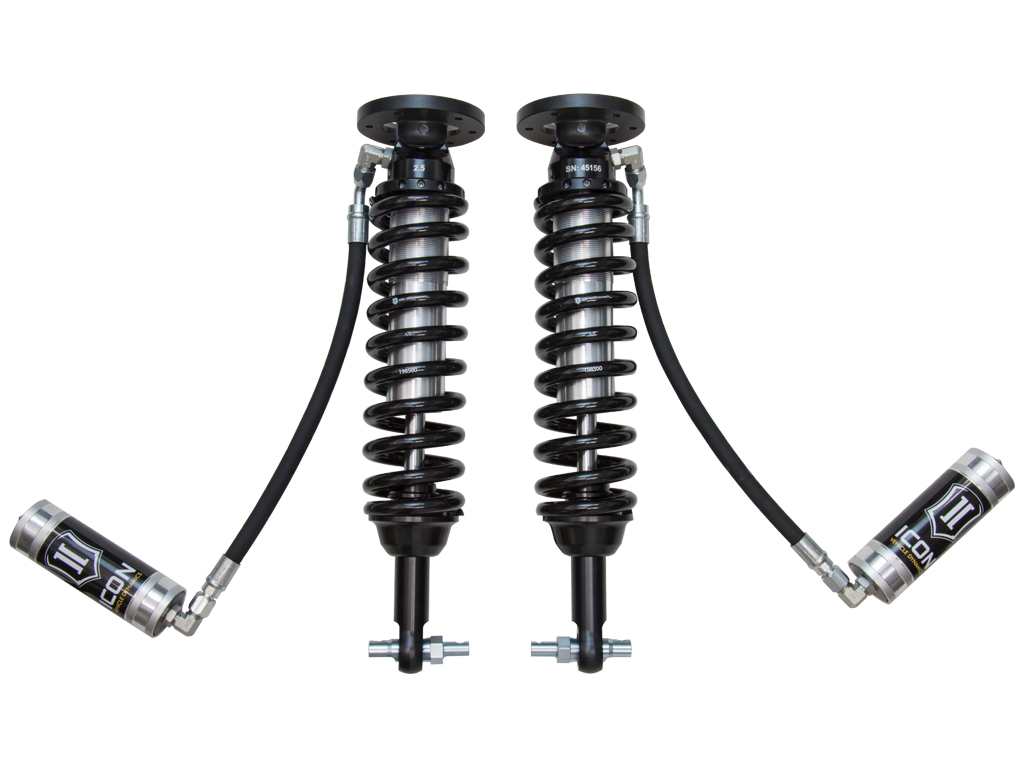

15-20 Ford F-150 (RWD - Leaf) Coilover Spring and Shock Assembly - Front - ICON Vehicle Dynamics - 91816

F150 COILOVER KIT
F150 2WD 2.
5 VS RR COILOVER KIT
Factory Wheels and Tires Fitment: Yes
Recommended Aftermarket Wheels: ICON Alloys - 17x8.
5" w/ 5.
00” Backspace / 6mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.
25" Backspace / 6mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.
625" Backspace / 16mm Offset
Recommended Aftermarket Tires: 33" x 11.
50" (Larger Tires May Fit but Fender Trimming and Modifications will be Required)
TECH NOTE: Only compatible with rear wheel drive (2WD/RWD) models
TECH NOTE: Models equipped with Power-Stroke diesel engines will have lift height range of 1.
25-2.
5" over stock
TECH NOTE: Lift heights above 2” over stock may require aftermarket front upper control arms to maintain proper alignment
15-20 F150 2WD 1.
75-3" 2.
5 VS RR COILOVER KIT
2015-2020 F150 2WD 1.
75-3" LIFT 2.
5 VS REMOTE RESERVOIR COILOVER KIT
ICON Vehicle Dynamics V.
S.
Series 2.
5” remote reservoir coilover shocks are an incredible upgrade for the front end of the 2015-2020 Ford F150 2WD.
ICON’s Vehicle-specific valving provides a sport tuned feel on and off-road while offering 1.
75-3” of lift height adjustability for use of larger, more aggressive wheel and tire combinations.
The larger 2.
5” shock body and increased piston area over stock components provides improved damping ability and outstanding ride characteristics across varying types of terrain.
Remote reservoirs ensure optimum performance by increasing the duration of consistent damping regardless of situation, keeping the shocks at a cooler operating temperature during heavy use.
When paired with ICON rear 2.
0 Aluminum Series or 2.
5" Series shocks, vehicle control will be balanced front to rear resulting in the best overall driving experience for your F150.
Increased wheel travel over stock
Vehicle specific tuned front shocks for superior shock damping and control
External reservoir to attain cooler operating temperatures during extended off-road use
Improved ride quality over stock both on and off-road
Height-adjustable coilovers offer 1.
75-2.
63” of lift height adjustment
ICON engineered coil springs
6061 Aircraft grade aluminum CNC machined components
Corrosion resistant CAD plated shock body with 7/8" induction hardened, chrome plated shaft
High strength alloy CNC machined lower bar pIN
FK Rod End bearings for extended longevity and minimal deflection
100% Bolt-on - no cutting or welding necessary for installation
ICON 15-20 Ford F150 2WD 1.
75-3” Lift Front 2.
5 VS Remote Reservoir Coilover Kit, 91816
ICON 15-20 Ford F150 2WD 1.
75-3” Lift Front 2.
5 VS Remote Reservoir Coilover Kit.

Detailed Fitment Results
Year Make Model Submodel Qualifiers Fitment Notes 2015 Ford F-150 King Ranch Lift heights above 2” over stock may require aftermarket front upper control arms to maintain proper alignment
Recommended Aftermarket Wheel Size: 17x8.5 inch with 5” Backspace / 6mm Offset 2015 Ford F-150 Lariat Lift heights above 2” over stock may require aftermarket front upper control arms to maintain proper alignment
Recommended Aftermarket Wheel Size: 17x8.5 inch with 5” Backspace / 6mm Offset 2015 Ford F-150 XLT Lift heights above 2” over stock may require aftermarket front upper control arms to maintain proper alignment
Recommended Aftermarket Wheel Size: 17x8.5 inch with 5” Backspace / 6mm Offset 2015 Ford F-150 XL Lift heights above 2” over stock may require aftermarket front upper control arms to maintain proper alignment
Recommended Aftermarket Wheel Size: 17x8.5 inch with 5” Backspace / 6mm Offset 2015 Ford F-150 Platinum Lift heights above 2” over stock may require aftermarket front upper control arms to maintain proper alignment
Recommended Aftermarket Wheel Size: 17x8.5 inch with 5” Backspace / 6mm Offset 2016 Ford F-150 King Ranch Lift heights above 2” over stock may require aftermarket front upper control arms to maintain proper alignment
Recommended Aftermarket Wheel Size: 17x8.5 inch with 5” Backspace / 6mm Offset 2016 Ford F-150 Lariat Lift heights above 2” over stock may require aftermarket front upper control arms to maintain proper alignment
Recommended Aftermarket Wheel Size: 17x8.5 inch with 5” Backspace / 6mm Offset 2016 Ford F-150 XLT Lift heights above 2” over stock may require aftermarket front upper control arms to maintain proper alignment
Recommended Aftermarket Wheel Size: 17x8.5 inch with 5” Backspace / 6mm Offset 2016 Ford F-150 XL Lift heights above 2” over stock may require aftermarket front upper control arms to maintain proper alignment
Recommended Aftermarket Wheel Size: 17x8.5 inch with 5” Backspace / 6mm Offset 2016 Ford F-150 Platinum Lift heights above 2” over stock may require aftermarket front upper control arms to maintain proper alignment
Recommended Aftermarket Wheel Size: 17x8.5 inch with 5” Backspace / 6mm Offset 2016 Ford F-150 Limited Lift heights above 2” over stock may require aftermarket front upper control arms to maintain proper alignment
Recommended Aftermarket Wheel Size: 17x8.5 inch with 5” Backspace / 6mm Offset 2016 Ford F-150 SSV Lift heights above 2” over stock may require aftermarket front upper control arms to maintain proper alignment
Recommended Aftermarket Wheel Size: 17x8.5 inch with 5” Backspace / 6mm Offset 2017 Ford F-150 King Ranch Lift heights above 2” over stock may require aftermarket front upper control arms to maintain proper alignment
Recommended Aftermarket Wheel Size: 17x8.5 inch with 5” Backspace / 6mm Offset 2017 Ford F-150 Lariat Lift heights above 2” over stock may require aftermarket front upper control arms to maintain proper alignment
Recommended Aftermarket Wheel Size: 17x8.5 inch with 5” Backspace / 6mm Offset 2017 Ford F-150 XLT Lift heights above 2” over stock may require aftermarket front upper control arms to maintain proper alignment
Recommended Aftermarket Wheel Size: 17x8.5 inch with 5” Backspace / 6mm Offset 2017 Ford F-150 XL Lift heights above 2” over stock may requi…
