21-24 Ford F-150 (RWD - Leaf) Coilover Spring and Shock Assembly - ICON Vehicle Dynamics - 91717

COILOVER KIT
91717
Factory Wheels and Tires Fitment: Yes
Recommended Aftermarket Wheels: ICON Alloys - 17x8.
5" w/ 5” Backspace / 6mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.
25" Backspace / 6mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.
625" Backspace / 16mm Offset
Recommended Aftermarket Tires: 33" x 11.
50" (Larger Tires May Fit but Fender Trimming and Modifications will be Required)
APPLICATION NOTE #55: Shocks are fully serviceable.
Lift heights indicated are for a stock equipped vehicle.
APPLICATION NOTE #129: Will not work with factory installed electronically controlled suspension.
APPLICATION NOTE #179: Only compatible with stock or original ICON Delta Joint UCAs.
Not compatible with ICON Delta Joint Pro UCAs.
TECH NOTE: Only compatible with rear-wheel drive (2WD) models
TECH NOTE: Models equipped with PowerBoost hybrid engines will have lift height range of 0-2.
75" over stock
TECH NOTE: Models equipped with Power-Stroke diesel engines will have lift height range of 0-2.
5" over stock
TECH NOTE: Not compatible with models equipped with BlueCruise
21-23 F150 2WD 0-3" 2.
5 VS IR COILOVER KIT
ICON 2.
5 Series coilovers with internal reservoirs provide ride height adjustability from 0-3" of lift over stock.
The larger 2.
5” shock body and piston area over stock components provides improved damping ability and ride quality.
ICON Vehicle Dynamics V.
S.
Series 2.
5” coilover shocks are an incredible upgrade for the front end of 2021-2023 Ford F-150 2WD trucks.
ICON’s Vehicle-specific valving provides a sport tuned feel on and off-road while 0-3” lift height adjustability over stock allows the use of larger, more aggressive wheel and tire combinations.
The larger 2.
5” shock body and increased piston area over stock components provides improved damping ability and outstanding ride characteristics across varying types of terrain.
When paired with ICON rear 2.
0 Aluminum Series or 2.
5 Aluminum Series shocks vehicle control will be balanced front to rear, resulting in the best overall driving experience for your F-150 truck.
Increased wheel travel and ride quality over stock
100% Bolt-on - no drilling,cutting or welding necessary for installation
Vehicle specific tuned for superior shock damping and control
Adjustable 0-3" lift height over stock
ICON engineered coil springs
6061 Aircraft grade aluminum CNC machined components
Corrosion resistant CAD plated shock bodies with 7/8" shafts
High strength alloy CNC machined lower bar pin
FK rod end bearings for extended longevity and minimal deflection

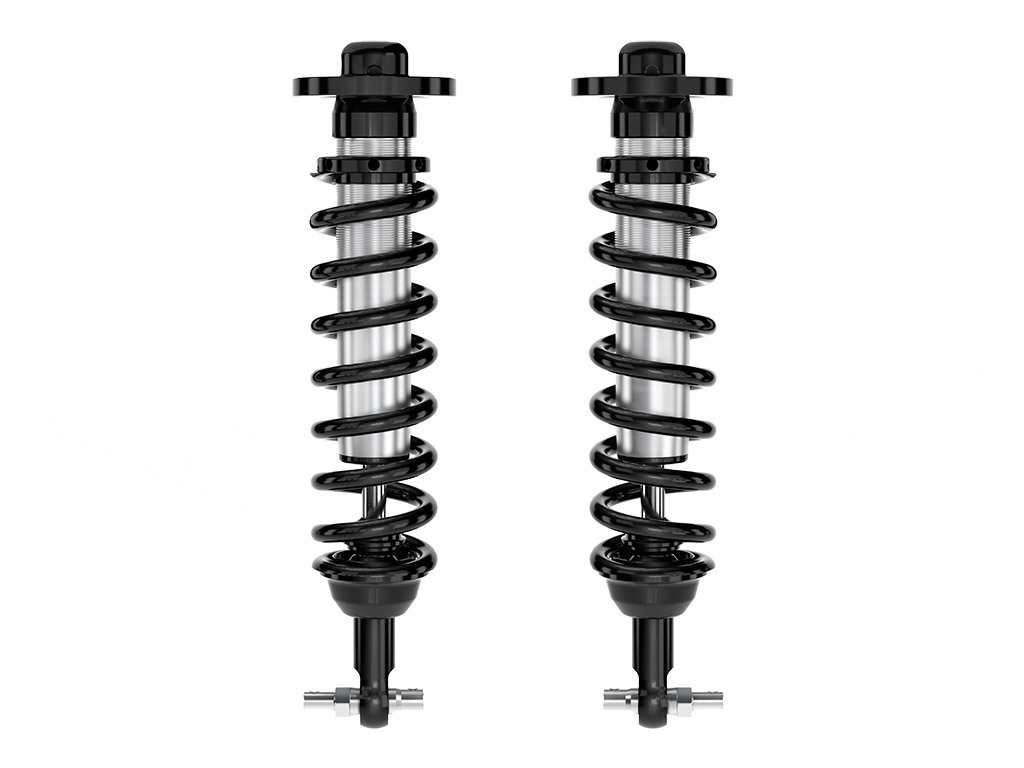

ICON 2021-2023 Ford F-150 2WD, 0-3" Lift, Front, V.
S.
2.
5 Series Coilovers, Internal Reservoir, Pair, 91717
ICON 2021-2023 Ford F-150 2WD, 0-3" Lift, Front, V.
S.
2.
5 Series Coilovers, Internal Reservoir, Pair
ICON 21-24 F150 2WD 0-3" 2.
5 VS IR COILOVER KIT.

Detailed Fitment Results
Year Make Model Submodel Qualifiers Fitment Notes 2021 Ford F-150 SSV 2021 Ford F-150 XLT ; ; ; ; ; ; 2021 Ford F-150 XL ; ; ; ; ; ; 2021 Ford F-150 Platinum ; ; ; ; ; ; 2021 Ford F-150 Lariat ; ; ; ; ; ; 2021 Ford F-150 King Ranch ; ; ; ; ; ; 2022 Ford F-150 SSV 2022 Ford F-150 XLT ; ; ; ; 2022 Ford F-150 XL ; ; ; ; 2022 Ford F-150 Lariat ; ; ; ; 2022 Ford F-150 King Ranch ; ; ; ; 2022 Ford F-150 Platinum ; ; ; ; 2023 Ford F-150 SSV 2023 Ford F-150 XLT ; ; ; ; 2023 Ford F-150 XL ; ; ; ; 2023 Ford F-150 Lariat ; ; ; ; 2023 Ford F-150 King Ranch ; ; ; ; 2023 Ford F-150 Platinum ; ; ; ; 2024 Ford F-150 SSV
