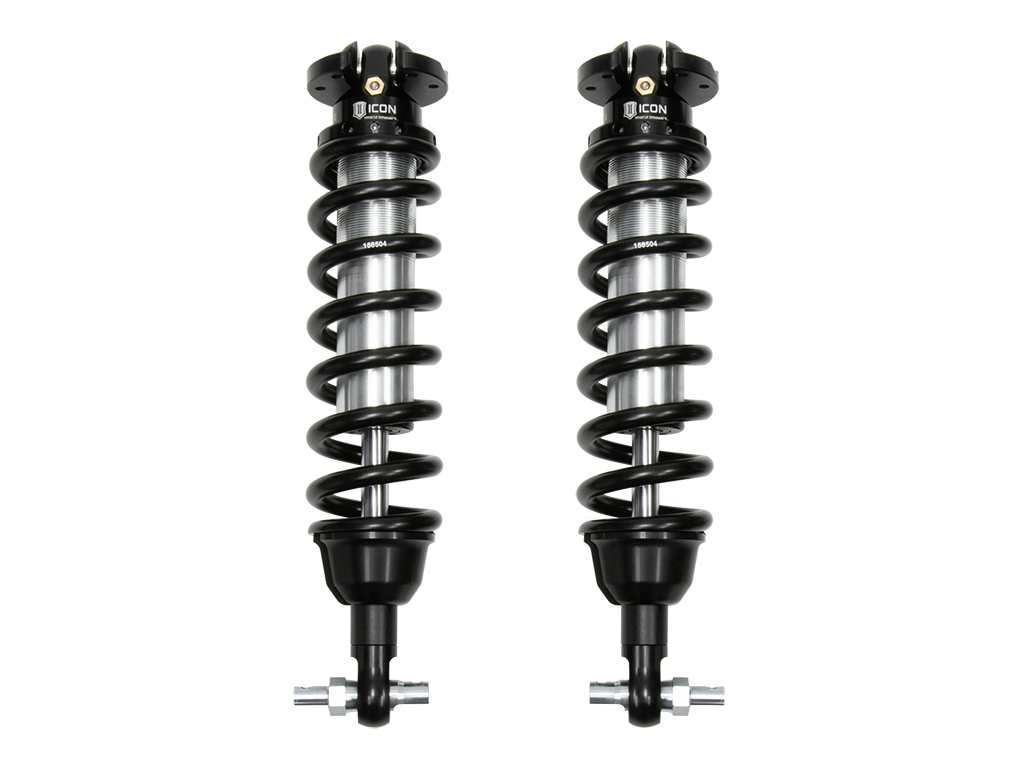

19-23 Ford Ranger Coilover Spring and Shock Assembly - Front - ICON Vehicle Dynamics - 91250

COILOVER KIT
91250
Factory Wheels and Tires Fitment: Yes
Recommended Aftermarket Wheels: ICON Alloys - 17x8.
5" w/ 5.
75” Backspace / 25mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 6.
00” Backspace / 25mm Offset
Recommended Aftermarket Tires: 33"x11.
25" (Larger Tires May Fit but Fender Trimming and Modifications will be Required)
APPLICATION NOTE #55: Shocks Are Fully Serviceable.
Coilover Heights Indicated Are For A Stock Equipped Vehicle
APPLICATION NOTE #110: Minor Trimming Required For Recommended Tire Size
TECH NOTE: Ranger XLT or Lariat models equipped with Tremor package have front lift height range of 0-2.
5" over stock.
TECH NOTE: Not compatible with Ranger Raptor
19-23 RANGER 2.
5 VS IR COILOVER KIT
ICON’s Vehicle-specific shock length and valving along with the larger 2.
5” shock body and increased piston area over stock yield the maximum travel possible along with superior ride quality and suspension performance both on- and off-road.
ICON Vehicle Dynamics V.
S.
2.
5 Series internal reservoir front coilover shocks are an incredible upgrade for the front end of the 2019-2023 Ford Ranger.
These adjustable coilovers allow up to 0-3.
5” of lift height adjustability, allowing the use of larger, more aggressive wheel and tire combinations.
ICON’s Vehicle-specific shock length and valving along with the larger 2.
5” shock body and increased piston area over stock components yield the maximum travel possible with OE front upper control arms along with superior ride quality and suspension performance both on- and off-road.
When paired with ICON 2.
0 or 2.
5 Aluminum Series rear shock absorbers vehicle control will be balanced front to rear, resulting in the best overall driving experience for your Ford Ranger.
Adjustable coilovers yield 0-3.
5” of front lift height
Increased wheel travel and vehicle specific valving provides unrivaled ride quality across a wide range of on and off-road use
Superior low speed control reduces body roll and increases on-road stability
High quality ICON-engineered coil springs are guaranteed for life against sagging or breakage
Corrosion resistant CAD plated shock body with 7/8" diameter shaft
Fully serviceable design allows for revalves, rebuilds, and an immeasurable service life
Bolt-in design makes for an easy install into OEM shock location
ICON 2019-2023 Ford Ranger, 0-3.
5” Lift, 2.
5 VS Coilover Kit, 91250
ICON 2019-2023 Ford Ranger, 0-3.
5” Lift, 2.
5 VS Coilover Kit
ICON 19-23 RANGER 2.
5 VS IR COILOVER KIT.

Detailed Fitment Results
Year Make Model Submodel Qualifiers Fitment Notes 2019 Ford Ranger XL Recommended Aftermarket Wheel Size: 17x8.5 inch with 5.75” Backspace / 25mm Offset 2019 Ford Ranger XLT Recommended Aftermarket Wheel Size: 17x8.5 inch with 5.75” Backspace / 25mm Offset 2019 Ford Ranger Lariat Recommended Aftermarket Wheel Size: 17x8.5 inch with 5.75” Backspace / 25mm Offset 2020 Ford Ranger XL Recommended Aftermarket Wheel Size: 17x8.5 inch with 5.75” Backspace / 25mm Offset 2020 Ford Ranger XLT Recommended Aftermarket Wheel Size: 17x8.5 inch with 5.75” Backspace / 25mm Offset 2020 Ford Ranger Lariat Recommended Aftermarket Wheel Size: 17x8.5 inch with 5.75” Backspace / 25mm Offset 2021 Ford Ranger XL Recommended Aftermarket Wheel Size: 17x8.5 inch with 5.75” Backspace / 25mm Offset 2021 Ford Ranger XLT Recommended Aftermarket Wheel Size: 17x8.5 inch with 5.75” Backspace / 25mm Offset 2021 Ford Ranger Lariat ; Recommended Aftermarket Wheel Size: 17x8.5 inch with 5.75” Backspace / 25mm Offset; 2021 Ford Ranger XLT Plus Recommended Aftermarket Wheel Size: 17x8.5 inch with 5.75” Backspace / 25mm Offset 2022 Ford Ranger XL Recommended Aftermarket Wheel Size: 17x8.5 inch with 5.75” Backspace / 25mm Offset 2022 Ford Ranger XLT Recommended Aftermarket Wheel Size: 17x8.5 inch with 5.75” Backspace / 25mm Offset 2022 Ford Ranger Lariat ; Recommended Aftermarket Wheel Size: 17x8.5 inch with 5.75” Backspace / 25mm Offset; 2022 Ford Ranger XLT Plus Recommended Aftermarket Wheel Size: 17x8.5 inch with 5.75” Backspace / 25mm Offset 2023 Ford Ranger XL Recommended Aftermarket Wheel Size: 17x8.5 inch with 5.75” Backspace / 25mm Offset 2023 Ford Ranger XLT Recommended Aftermarket Wheel Size: 17x8.5 inch with 5.75” Backspace / 25mm Offset 2023 Ford Ranger Lariat ; Recommended Aftermarket Wheel Size: 17x8.5 inch with 5.75” Backspace / 25mm Offset;
