16-23 Nissan TITAN XD Suspension Control Arm - Front Upper - ICON Vehicle Dynamics - 88510DJ

UPPER CONTROL ARMS
88510DJ
OEM Wheels and Tires Fitment: Yes
Recommended Aftermarket Wheels: ICON Alloys - 17x8.
5" w/ 4.
75” Backspace / 0mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.
00" Backspace / 0mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.
00" Backspace / 0mm Offset
Recommended Aftermarket Tires: 33" x 11.
50" (Larger tires may fit but fender trimming and modifications will be required.
)
16-23 TITAN XD UCA DJ KIT
ICON tubular UCAs feature 1026 DOM tube construction, polyurethane bushings, and ICON’s serviceable Delta Joint, a hardcore high-angle ball joint that combines the durability of a ball joint with the performance of a traditional uniball.
Take the performance of your 2016-2023 Nissan XD to new levels with the ICON Vehicle Dynamics Delta Joint tubular upper control arm kit.
All ICON tubular upper control arms are constructed from CNC bent 1026 DOM steel tubing and then powder coated to a semi-gloss black finish for maximum strength and corrosion resistance.
ICON upper control arms are engineered with built-in caster correction for optimal alignment specifications and confidence inspiring handling.
A main benefit of ICON upper control arms is the potential for increased wheel travel when paired with our 2.
5 series coilovers, this translates into superior performance and ride quality for your 2016-2023 Nissan XD.
These upper control arms feature ICON's patented Delta Joint.
The Delta Joint is a heavy duty high angle ball joint that combines the durability of a ball joint with the performance characteristics of a traditional uniball.
While the industry standard uniball does a great job of allowing the control arms of a vehicle to articulate with little bind, they do have an inherent weakness that leaves more to be desired when used in a daily driven application - exposure to the elements.
The Delta Joint features a zinc plated housing providing the first layer of corrosion resistance, while a tough grease seal keeps potentially harmful elements out of the inner workings of the joint.
Metal on metal construction and a greasable design increase the longevity of the Delta Joint while at the same time allowing for noise-free operation.
What makes the Delta Joint unique is that it brings the best of both worlds to ICON upper control arms with features that make it more robust than a uniball, and at the same time capable of greater angularity than a typical ball joint.
ICON Delta Joint
1026 DOM Steel Construction
CNC Bent Tubing

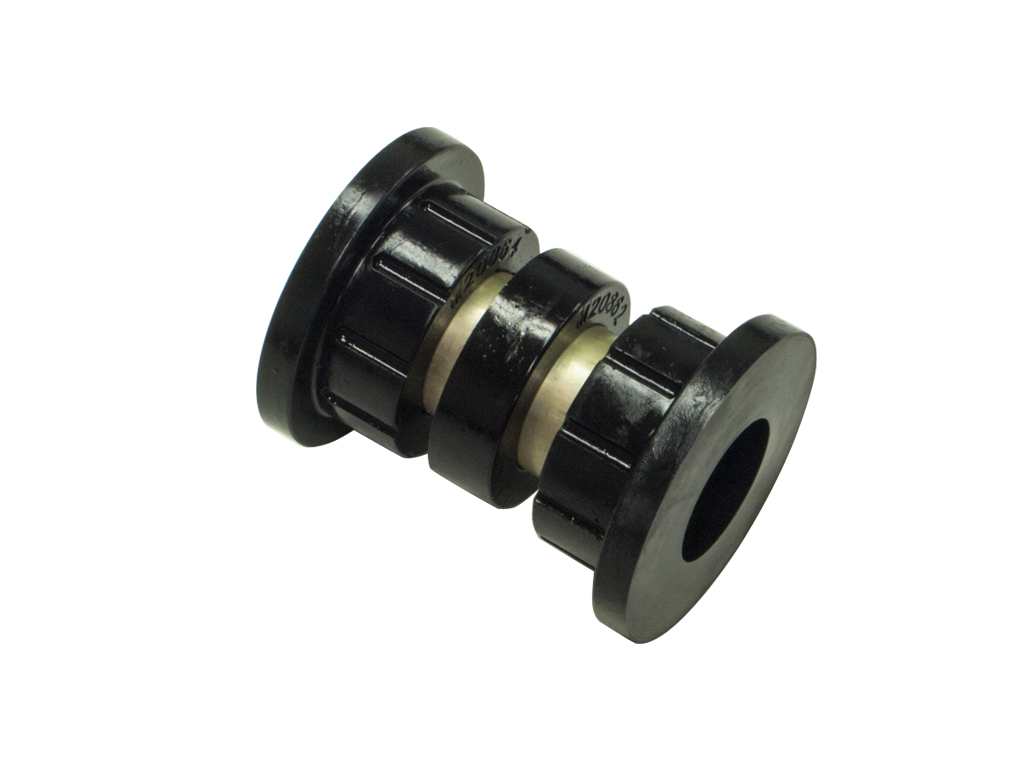

Serviceable Dual Stage Bushings
CNC Machined Bushing Housings and Sleeves
Built-In Caster Correction
Black Semi-Gloss Powder Coat Finish
ICON 2016-2023 Nissan Titan XD, Upper Control Arm/Delta Joint Kit, 88510DJ
ICON 2016-2023 Nissan Titan XD, Upper Control Arm/Delta Joint Kit
ICON 16-23 TITAN XD UCA DJ KIT.

Detailed Fitment Results
Year Make Model Fitment Notes 2016 Nissan TITAN XD Recommended Aftermarket Wheel Size: 17x8.5 inch with 4.75” Backspace / 0mm Offset 2017 Nissan TITAN XD Recommended Aftermarket Wheel Size: 17x8.5 inch with 4.75” Backspace / 0mm Offset 2018 Nissan TITAN XD Recommended Aftermarket Wheel Size: 17x8.5 inch with 4.75” Backspace / 0mm Offset 2019 Nissan TITAN XD Recommended Aftermarket Wheel Size: 17x8.5 inch with 4.75” Backspace / 0mm Offset 2020 Nissan TITAN XD Recommended Aftermarket Wheel Size: 17x8.5 inch with 4.75” Backspace / 0mm Offset 2021 Nissan TITAN XD Recommended Aftermarket Wheel Size: 17x8.5 inch with 4.75” Backspace / 0mm Offset 2022 Nissan TITAN XD Recommended Aftermarket Wheel Size: 17x8.5 inch with 4.75” Backspace / 0mm Offset 2023 Nissan TITAN XD Recommended Aftermarket Wheel Size: 17x8.5 inch with 4.75” Backspace / 0mm Offset
