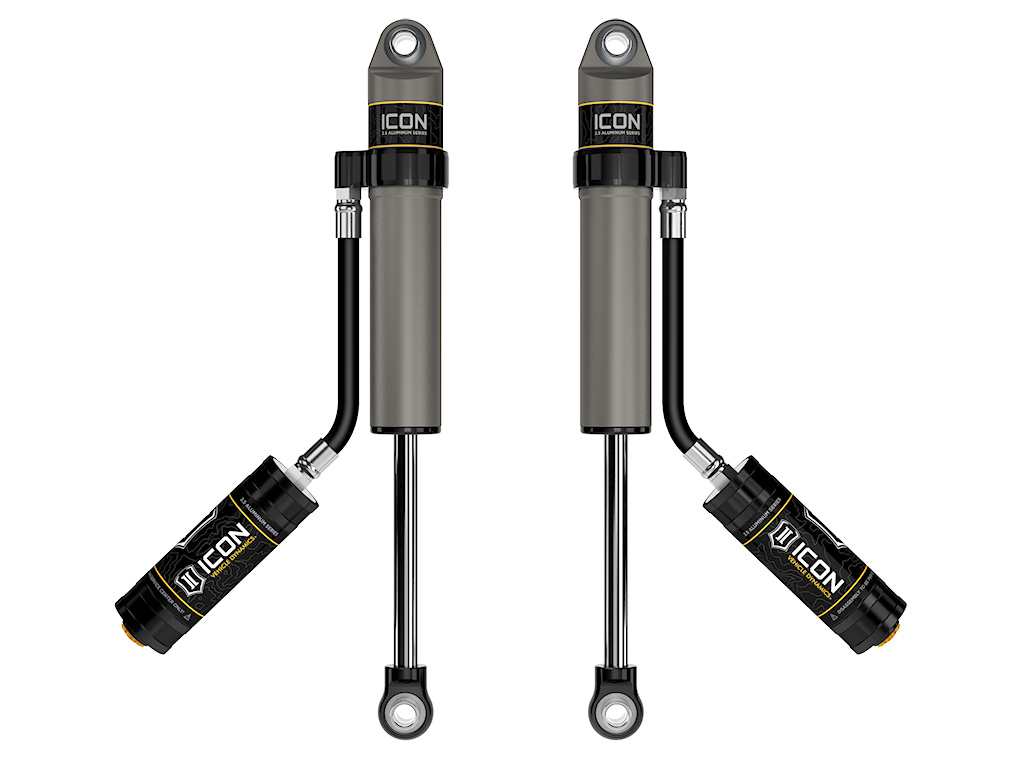

1997-2023 Nissan Patrol Y61 2 Inch Lift Rear V.S. 2.5 Aluminum Series Shock Absorbers Remote Reservoir Pair - ICON Vehicle Dynamics - 87843P

ICON Vehicle Specific (V.S.) 2.5 Aluminum Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune.

Like all ICON'S Shock Absorbers, V.S. 2.5 Aluminum Series shocks are 100 Percent rebuildable and 100 Percent revalveable. For piggyback and specific remote reservoir applications, ICON'S unique use of a 6061 billet aluminum manifold a few inches below the top cap of the shock creates an internal Bump Zone that when used creates an additional 20 Percent of damping force.

This additional force helps prevent harsh bottom outs and controls the suspension when compressing at high velocity. If you are looking for a more user defined tune, consider looking into the Compression Damping Control Valve (CDCV) shocks.

Features and Benefits:


Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range

PTFE lined spherical bearings and application specific mounting hardware

All ICON 2.5 Series Piggyback and Remote Reservoir shocks can be upgraded to ICON's Compression Damping Control Valve (CDCV)

One piece digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road

Nitrogen charged monotube design with piggyback reservoir

100 Percent Rebuildable

100 Percent Revalveable

One-piece, hard anodized, impact extruded aluminum cylinders offer excellent corrosion resistance and consistent finish

Remote reservoir design improves heat dissipation to reduce shock fade during prolonged use

6061 aircraft grade aluminum CNC machined components

ICON's internal InchBump Zone Inch increases damping by 20 Percent to provide more control as the shock approaches full compression

7/8 Inch diameter induction hardened, chrome plated shock shaft


Details


Active Or Passive Suspension: Passive

Adjustable: No

Adjustable Compression: No

Adjustable Damping: No

Adjustable Rebound: No

Boot Included: No

Bore Diameter: 2.25

Cylinder Color: Grey

Cylinder Diameter: 2.5

Cylinder Material: Aluminum

Damping Type: Oil

External Reservoir: Yes

Gas Charged: Yes

Grade Type: Performance

Includes Bump Stop: No

Lower Mount Type: Eyelet

Mounting Hardware Included: Yes

Reservoir Type: Remote

Service Parts: 252011 - 2.5 Piggyback/Remote Resi/Bypass Rebuild Kit, 252002 - Universal Spanner Wrench (2.0/2.5/3.0), 257339 - 7/8 Shaft 13.25 Oal 9.00 Travel, 252003 - Seal Install Tool 2.5/3.0, 191016 - 7.5 Inch Finned Resi Upgrade Kit, 252001 - 2.5 Fixed Spanner Wrench, 254100G - 1 Gallon Icon Performance Shock Oil

Shaft Diameter: 0.875

Shaft Material: Chrome

Shock Absorber Body End Measuring Point: Center Of Eylet, Shoulder Of Stem

Shock Absorber Rod End Measuring Point: Shoulder Of Stem, Center Of Eylet

Tube Outside Diameter: 2.5

Upper Mount Type: Eyelet

Valving Type: Digressive

Add On Part: 252012 - -4 To -10 Hose Shield Kit
