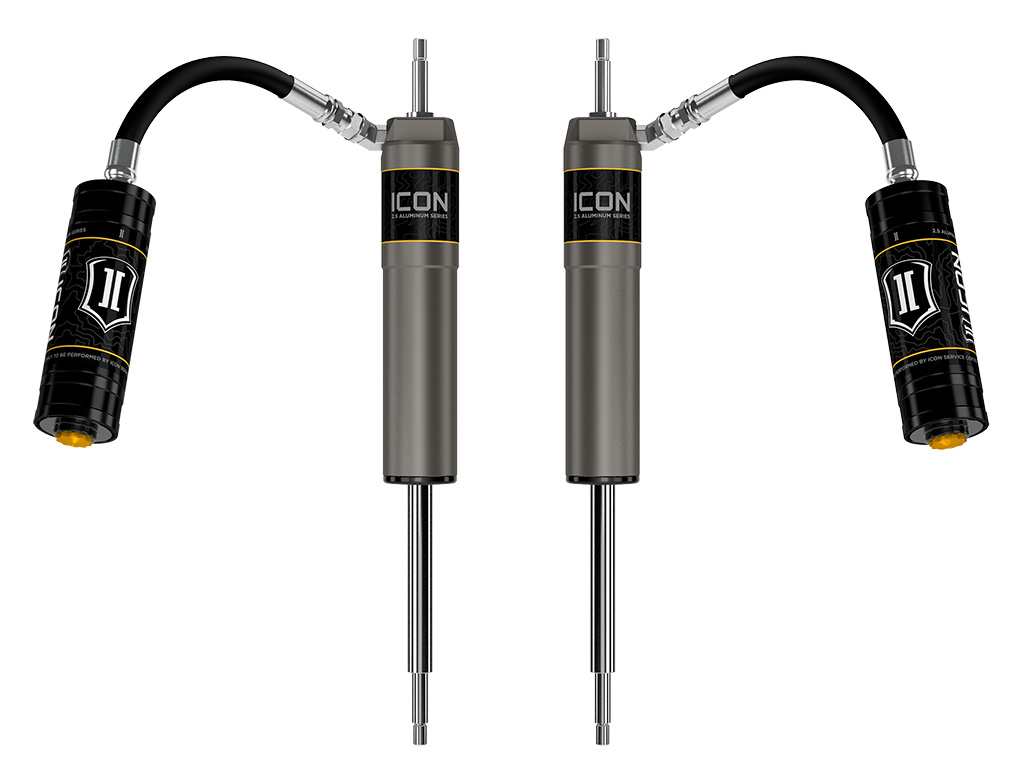

1997-2023 Nissan Patrol Y61 0-2.5 Inch Lift Front V.S. 2.5 Aluminum Series Shock Absorbers Remote Reservoir Pair - ICON Vehicle Dynamics - 87842P

ICON Vehicle Specific (V.S.) 2.5 Aluminum Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune.

Like all ICON'S Shock Absorbers, V.S. 2.5 Aluminum Series shocks are 100 Percent rebuildable and 100 Percent revalveable. The larger 2.5 Inch shock body and increased piston area over stock components provides improved damping ability and outstanding ride characteristics across varying types of terrain.

Remote reservoirs ensure optimum performance by increasing the duration of consistent damping regardless of situation, keeping the shocks at a cooler operating temperature during heavy use. If you are looking for a more user defined tune, consider looking into the Compression Damping Control Valve (CDCV) shocks.

Features and Benefits:


Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range

Polyurethane bushings and application specific mounting hardware

All ICON 2.5 Series Piggyback and Remote Reservoir shocks can be upgraded to ICON's Compression Damping Control Valve (CDCV)

One piece digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road

Nitrogen charged monotube design with remote reservoirs

100 Percent Rebuildable

100 Percent Revalveable

One-piece, hard anodized, impact extruded aluminum cylinders offer excellent corrosion resistance and consistent finish

Remote reservoir design improves heat dissipation to reduce shock fade during prolonged use

6061 aircraft grade aluminum CNC machined components

7/8 Inch diameter induction hardened, chrome plated shock shaft


Details


Active Or Passive Suspension: Passive

Adjustable: No

Adjustable Compression: No

Adjustable Damping: No

Adjustable Rebound: No

Boot Included: No

Bore Diameter: 2.25

Cylinder Color: Grey

Cylinder Diameter: 2.5

Cylinder Material: Aluminum

Damping Type: Oil

External Reservoir: Yes

Gas Charged: Yes

Grade Type: Performance

Includes Bump Stop: No

Lower Mount Type: Stem

Mounting Hardware Included: Yes

Reservoir Type: Remote

Service Parts: 252003 - Seal Install Tool 2.5/3.0, 254100G - 1 Gallon Icon Performance Shock Oil, 252001 - 2.5 Fixed Spanner Wrench, 252002 - Universal Spanner Wrench (2.0/2.5/3.0), 191016 - 7.5 Inch Finned Resi Upgrade Kit, 611006 - 9/16 HD Stem Bushing Kit, 257338STEM - 7/8 Shaft 13.98 Oal 8.00 Travel, 252011 - 2.5 Piggyback/Remote Resi/Bypass Rebuild Kit

Shaft Diameter: 0.875

Shaft Material: Chrome

Shock Absorber Body End Measuring Point: Shoulder Of Stem

Shock Absorber Rod End Measuring Point: Shoulder Of Stem

Tube Outside Diameter: 2.5

Upper Mount Type: Stem

Valving Type: Digressive

Add On Part: 252012 - -4 To -10 Hose Shield Kit
