04-15 Nissan TITAN Suspension Shock Absorber Set - Rear - ICON Vehicle Dynamics - 87700CP

REAR SHOCK ABSORBERS
04-15 TITAN 0-1.
5 REAR 2.
5 PB CDCV PAIR
04-15 TITAN 0-1.
5" REAR 2.
5 VS PB CDCV PAIR
2004-2015 TITAN 0-1.
5" LIFT REAR 2.
5 VS PIGGYBACK CDCV SHOCK PAIR
ICON Vehicle Specific (V.
S.
) 2.
5 Aluminum Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street.
These shocks are configured specifically for each application in both length and damping tune.
Like all ICON'S Shock Absorbers, V.
S.
2.
5 Aluminum Series shocks are 100% rebuildable and 100% revalveable.
For piggyback and specific remote reservoir applications, ICON'S unique use of a 6061 billet aluminum manifold a few inches below the top cap of the shock creates an internal Bump Zone that when used creates an additional 20% of damping force.
This additional force helps prevent harsh bottom outs and controls the suspension when compressing at high velocity.
The ICON CDC Valve is an externally adjustable valve that restricts oil flow into the reservoir which creates 10 levels of compression damping force ranges.
If you are looking for a more user defined tune, consider looking into the Omega Series bypass shocks.
ICON's CDC Valve technology allows for 10 levels of high-resolution compression adjustability with the turn of a knob
ICON’s internal “Bump Zone” increases damping by 20% to provide more control as the shock approaches full compression
Remote reservoir design improves heat dissipation to reduce shock fade during prolonged use
Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
Nitrogen charged monotube design with piggyback reservoir
One piece digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
7/8” diameter induction hardened, chrome plated shock shaft
PTFE lined spherical bearings and application specific mounting hardware
6061 aircraft grade aluminum CNC machined components
One-piece impact extruded aluminum cylinders offer excellent corrosion resistance and consistent finish
100% Rebuildable
100% Revalveable

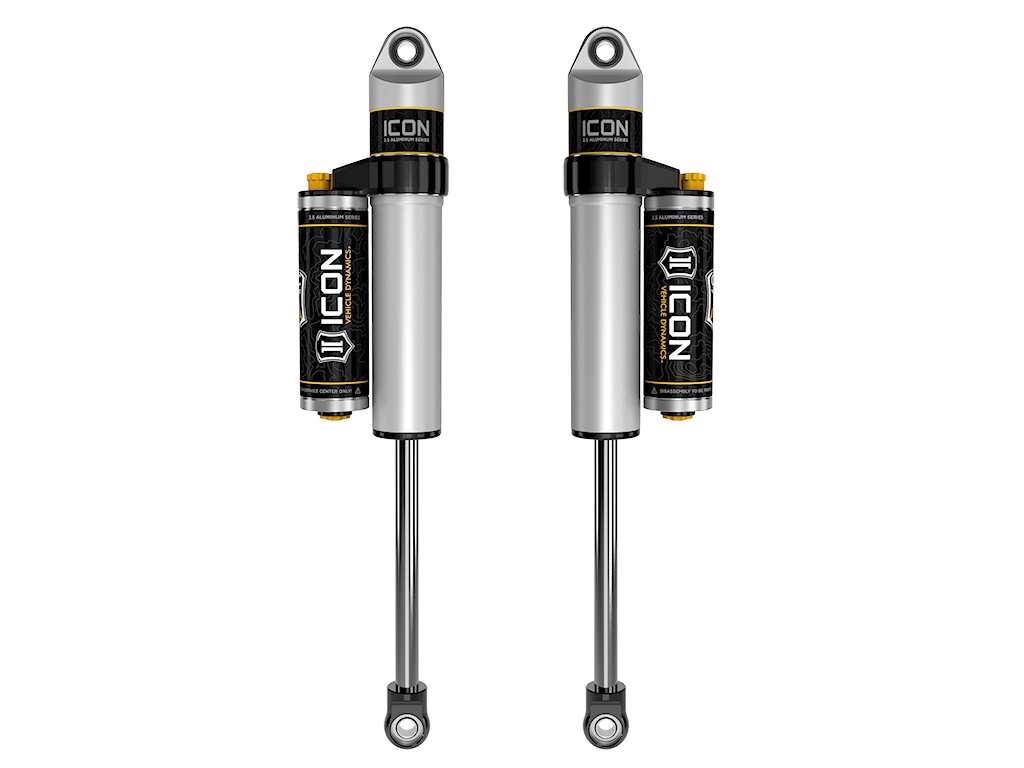

ICON 2004-15 Nissan Titan 0-1.
5" Lift Rear 2.
5 VS Piggyback/CDCV Shocks, Pair, 87700CP
ICON 2004-15 Nissan Titan 0-1.
5" Lift Rear 2.
5 VS Piggyback/CDCV Shocks, Pair.

Detailed Fitment Results
Year Make Model 2004 Nissan TITAN 2005 Nissan TITAN 2006 Nissan TITAN 2007 Nissan TITAN 2008 Nissan TITAN 2009 Nissan TITAN 2010 Nissan TITAN 2011 Nissan TITAN 2012 Nissan TITAN 2013 Nissan TITAN 2014 Nissan TITAN 2015 Nissan TITAN
