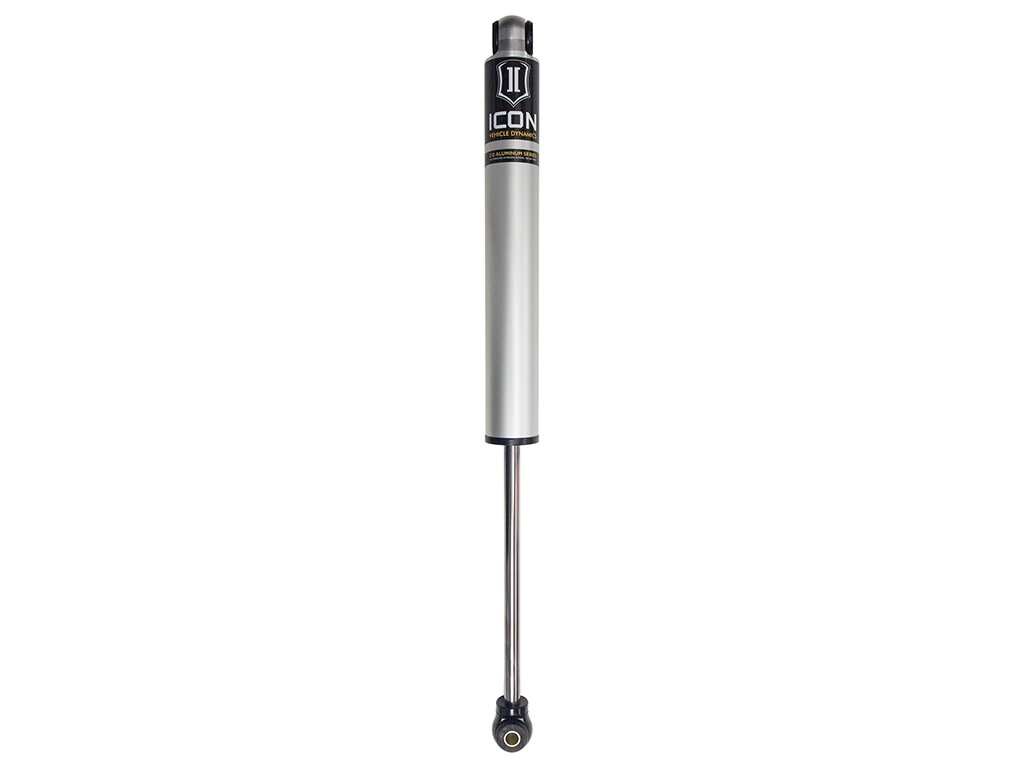

2022-2025 Nissan Frontier 0-1.5 Inch Lift Rear V.S. 2.0 Aluminum Series Shock Absorber Internal Reservoir - ICON Vehicle Dynamics - 86533

ICON Vehicle Specific (V.S.) 2.0 Aluminum Series shock absorbers are the ultimate in cost effective upgrades, specifically tailored by ICON engineers for your application. The V.S. 2.0 Aluminum Series shocks are a high-quality upgrade for the everyday street driver and weekend warrior looking for improved on and off-road performance.

Like all ICON shock absorbers, V.S. 2.0 Aluminum Series shocks are fully rebuildable and re-tunable.

Features and Benefits:


Nitrogen charged monotube design with internal reservoir

One piece linear/digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road

5/8 Inch chrome plated hardened steel shaft resists corrosion and pits

6061 aluminum rod end, top cap, and internals ensure strength and durability

Polyurethane bushings, zinc plated sleeves, and forged steel mounting stems for OE factory type fitment

6063 anodized aluminum body and reservoir tubing for superb heat dissipation, excellent corrosion resistance, and high-tech appearance

Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range

Nitrile rubber top out bumper for noise free operation

Fully rebuildable and re-tunable


Details


Color: Black, Silver, Gray

Material: Aluminum, Steel

Finish: Anodized

Active Or Passive Suspension: Passive

Adjustable: No

Adjustable Compression: No

Adjustable Damping: No

Adjustable Rebound: No

Adjustable Ride Height: No

Body Color: Gray

Body Diameter: 2 Inch

Body Material: Aluminum

Boot Included: No

Bore Diameter: 1.75

Bushing Color: Black

Bushing Included: Yes

Bushing Material: Polyurethane, Rubber

Coil Spring InsulatorS Included: No

Cylinder Color: Gray

Cylinder Finish: Anodized

Cylinder Material: Aluminum

Cylinder Outside Diameter: 2.0

Damping Type: Oil

Dust Boot Included: No

Dust Shield: No

Dust Shield Included: Yes

External Reservoir: No

Gas Charged: Yes

Grade Type: Performance

Hydraulic Lockout: No

Includes Bump Stop: No

Internal Construction Type: Single Tube

Internal Rebound Bumper: Yes

Internal Rebound Spring: No

Lower Mount Sleeve Inside Diameter: 14.0

Lower Mount Sleeve Overall Length: 1.65

Lower Mount Type: Eyelet

Maximum Ride Height Raising Distance: 1.5

Minimum Ride Height Raising Distance: 0.0

Mounting Hardware Included: No

Remote Reservoir: No

Reservoir Type: Internal

Rod Diameter: 0.625

Self Leveling: No

Service Parts: 202002 - 2.0 Ifp Rebuild Kit

Shaft Diameter: 0.625

Shaft Material: Chrome

Shock Absorber Body End Measuring Point: Center Of Eylet

Shock Absorber Bore Size: 1.75

Shock Absorber Rod End Measuring Point: Center Of Eyelet

Suspension Type: Spring

Upper Mount Sleeve Inside Diameter: 16.0

Upper Mount Sleeve Overall Length: 1.35

Upper Mount Type: Eyelet

Valving Type: Linear, Digressive



Detailed Fitment Results
Year Make Model Engine Fuel 2022 Nissan Frontier 3.8L GAS 2023 Nissan Frontier 3.8L GAS 2024 Nissan Frontier 3.8L GAS 2025 Nissan Frontier 3.8L GAS
