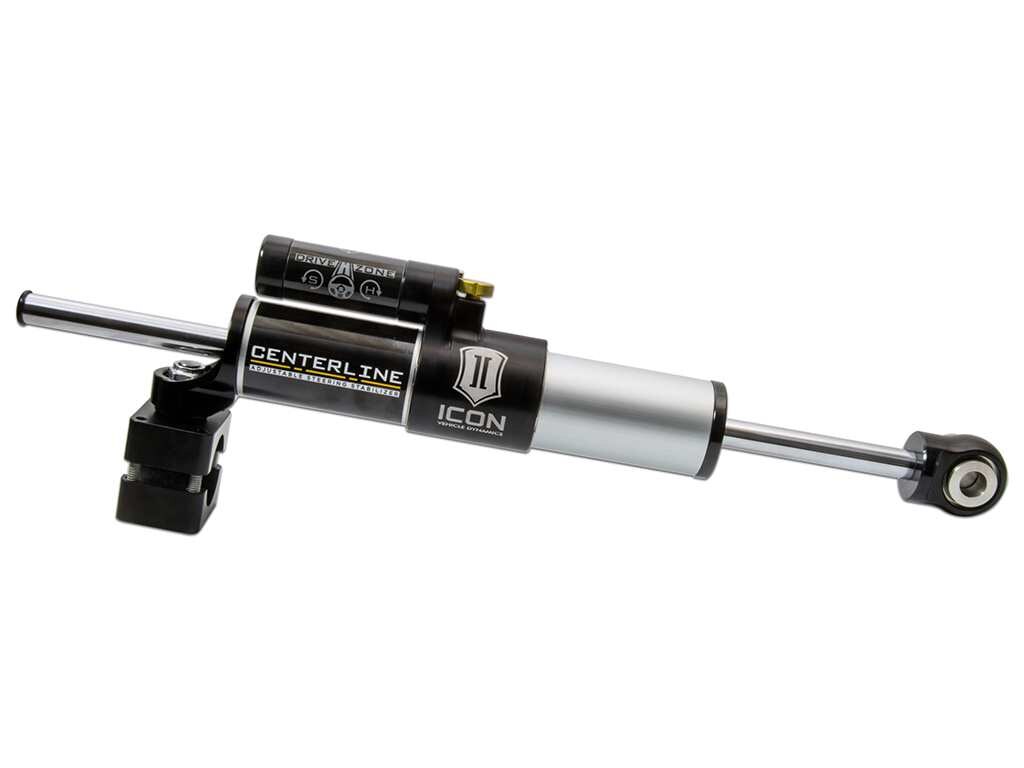

1997-2023 Nissan Patrol Y61 Centerline Steering Stabilizer Piggyback Reservoir Adjustable - ICON Vehicle Dynamics - 82021

Engineered to provide consistent steering damping with a through-shaft design, the new ICON Centerline Steering Stabilizer features an adjustable InchDrive Zone Inch that can be custom-tailored to an individual's desired steering feel. In addition to providing steering damping without the push or pull associated with a traditional stabilizer, the ICON Centerline Stabilizer features an adjustable InchDrive Zone Inch with 9 levels of damping that affects 110 degrees of steering wheel input to the left or right of center.

This allows the end user to customize how tight or how loose their vehicle handles in the middle of the steering range.

Features and Benefits:


This new Centerline Steering Stabilizer shares the same great build features as our proven ICON 2.0 Aluminum Series shocks. These features include a clear anodized 6063 aluminum shock body for corrosion resistance and a 5/8 Inch chrome plated hardened steel shaft for durability, premium 5WT shock oil that provides consistent damping characteristics across a wide operating temperature range , and a high temperature long wear seal pack that stands up to harsh conditions found both on and off-road.

Through shaft design eliminates the push/pull sensation associated with traditional stabilizers

Adjustable InchDrive Zone Inch with 9 clicks of damping adjustment

5WT shock oil for consistent suspension damping along a wide temperature range

FK Rod End bearings for precise function

Increased steering damping over stock unit

Provides symmetrical steering feel throughout input range

100 Percent bolt-on installation

Fully serviceable ICON 2.0 Aluminum Series shock

6063 clear anodized aluminum shock body provides excellent corrosion resistance and superb heat dissipation

5/8 Inch chrome plated hardened steel shaft


Details


Color: Light Grey

Adjustable Damping: Yes

Boot Included: No

Cylinder Diameter: 2.0

Cylinder Material: Aluminum

Damping Adjustment Type: Manual

Damping Type: Oil

Grade Type: Performance

Lower Mount Type: Eyelet

Mounting Bracket Included: Yes

Service Parts: 202006 - 2.0 Centerline Stabilizer Rebuild Kit

Shaft Diameter: 0.625

Shaft Material: Chrome

Steering Stabilizer Configuration: Through-Shaft

Upper Mount Type: Eyelet
