16-23 Nissan TITAN XD Coilover Spring and Shock Assembly - Front - ICON Vehicle Dynamics - 81521

TITAN XD COILOVERS
81521
OEM Wheels and Tires Fitment: Yes
Recommended Aftermarket Wheels: ICON Alloys - 17x8.
5 with 4.
75” Backspace / 0mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 18x9 with 5.
00” Backspace / 0mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 20x9 with 5.
00” Backspace / 0mm Offset
Recommended Aftermarket Tires: 33 x 11.
50" (Larger Tires May Fit but Fender Trimming and Modifications will be Required)
16-23 TITAN XD 2.
5 RR COILOVER KIT
Adjustable coilovers allow up to 2.
5-3” of lift allowing the use of larger wheel and tire combos.
ICON’s Vehicle-specific shock length and valving along with the 2.
5” shock body yield max travel with superior ride quality and performance.

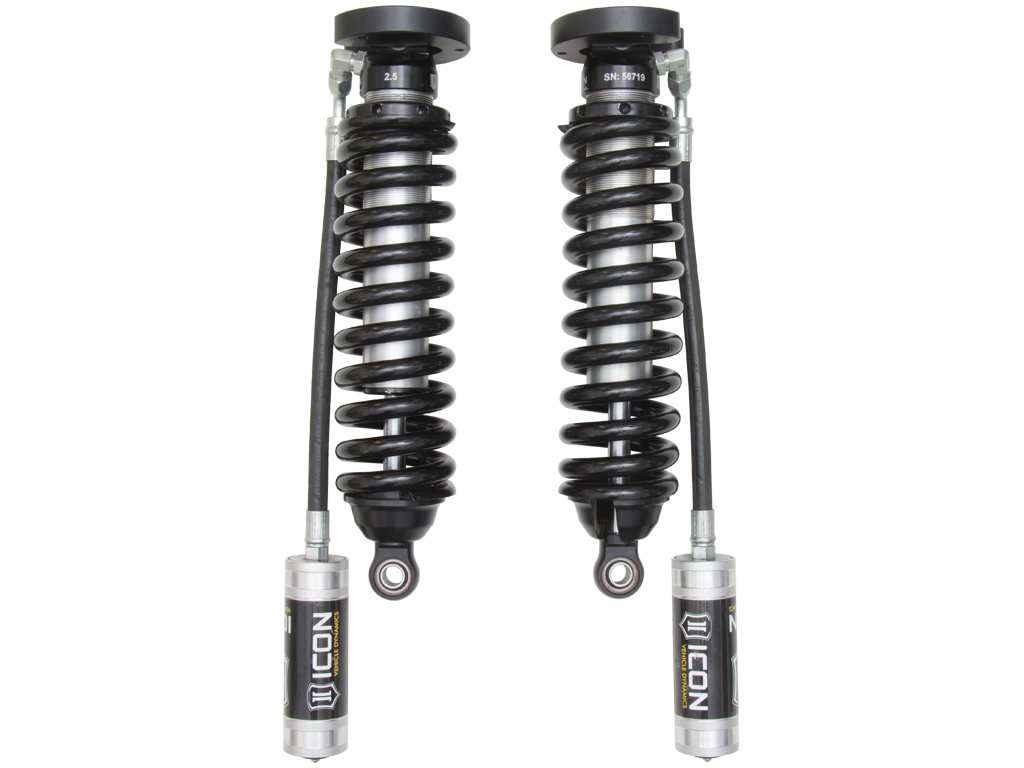

ICON Vehicle Dynamics V.
S.
2.
5 Series remote reservoir front coilover shocks are an incredible upgrade for the front end of the 2016-2023 Nissan Titan XD.
These adjustable coilovers allow up to 2.
5-3” of lift height adjustability, allowing the use of larger, more aggressive wheel and tire combinations.
ICON’s Vehicle-specific shock length and valving along with the larger 2.
5” shock body and increased piston area over stock components yield the maximum travel possible along with superior ride quality and suspension performance both on- and off-road.
Reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade.
When paired with ICON 2.
0 or 2.
5 Aluminum Series rear coilovers vehicle control will be balanced front to rear, resulting in the best overall driving experience for your Nissan Titan XD.
Approximately 32% increased front wheel travel and improved ride quality over stock
Vehicle specific tuned for superior shock damping and control
Height-adjustable coilovers offer 2.
5-3 of front lift height adjustment
Remote reservoirs maintain cooler operating temperatures during extended off-road use
ICON engineered coil springs
6061 Aircraft grade aluminum CNC machined components
Corrosion resistant CAD plated shock bodies with 7/8" diameter shafts
FK rod end bearings for extended longevity and minimal deflection
Fully rebuildable and re-tunable
ICON 2016-2023 Nissan Titan XD, 2.
5 VS Remote Reservoir Coilover Kit, Front, 81521
ICON 2016-2023 Nissan Titan XD, 2.
5 VS Remote Reservoir Coilover Kit, Front
ICON 16-23 TITAN XD 2.
5 RR COILOVER KIT.

Detailed Fitment Results
Year Make Model Fitment Notes 2016 Nissan TITAN XD Recommended Aftermarket Wheel Size: 17x8.5 inch with 4.75” Backspace / 0mm Offset 2017 Nissan TITAN XD Recommended Aftermarket Wheel Size: 17x8.5 inch with 4.75” Backspace / 0mm Offset 2018 Nissan TITAN XD Recommended Aftermarket Wheel Size: 17x8.5 inch with 4.75” Backspace / 0mm Offset 2019 Nissan TITAN XD Recommended Aftermarket Wheel Size: 17x8.5 inch with 4.75” Backspace / 0mm Offset 2020 Nissan TITAN XD Recommended Aftermarket Wheel Size: 17x8.5 inch with 4.75” Backspace / 0mm Offset 2021 Nissan TITAN XD Recommended Aftermarket Wheel Size: 17x8.5 inch with 4.75” Backspace / 0mm Offset 2022 Nissan TITAN XD Recommended Aftermarket Wheel Size: 17x8.5 inch with 4.75” Backspace / 0mm Offset 2023 Nissan TITAN XD Recommended Aftermarket Wheel Size: 17x8.5 inch with 4.75” Backspace / 0mm Offset
