Chevrolet, GMC Suspension Control Arm Kit - Front Upper - ICON Vehicle Dynamics - 78650DJ

COLORADO DJ UCA KIT
78650DJ
Factory Wheels and Tires Fitment: Yes
Recommended Aftermarket Wheels: ICON Alloys - 17x8.
5" w/ 4.
75” Backspace / 0mm Offset
Recommended Aftermarket Tires: 32" x 11.
00" (Larger Tires May Fit but Fender Trimming and Modifications will be Required)
TECH NOTE: Not compatible with Colorado ZR2
15-22 COLORADO TUBULAR UCA DJ KIT
ICON tubular upper control arms feature 1026 DOM tube construction, PTFE-lined rod ends, and ICON’s Delta Joint, a hardcore high-angle ball joint that combines the durability of a ball joint with the performance of a traditional uniball.
Take the performance of your 2015-2022 GM Colorado/Canyon to new levels with the ICON Vehicle Dynamics Delta Joint tubular upper control arm kit.
All ICON tubular upper control arms are constructed from CNC bent 1026 DOM steel tubing and then powder coated to a semi-gloss black finish for maximum strength and corrosion resistance.
ICON upper control arms are engineered with built-in caster correction for optimal alignment specifications and confidence inspiring handling.
A main benefit of ICON upper control arms is the potential for increased wheel travel when paired with our 2.
5 series coilovers, this translates into superior performance and ride quality for your 2015-2022 GM Colorado/Canyon.
These upper control arms feature ICON's patented Delta Joint.
The Delta Joint is a heavy duty high angle ball joint that combines the durability of a ball joint with the performance characteristics of a traditional uniball.
While the industry standard uniball does a great job of allowing the control arms of a vehicle to articulate with little bind, they do have an inherent weakness that leaves more to be desired when used in a daily driven application - exposure to the elements.
The Delta Joint features a zinc plated housing providing the first layer of corrosion resistance, while a tough grease seal keeps potentially harmful elements out of the inner workings of the joint.
Metal on metal construction and a greasable design increase the longevity of the Delta Joint while at the same time allowing for noise-free operation.
What makes the Delta Joint unique is that it brings the best of both worlds to ICON upper control arms with features that make it more robust than a uniball, and at the same time capable of greater angularity than a typical ball joint.
ICON Delta Joint
1026 DOM Steel Construction
CNC Bent Tubing
Serviceable Dual Stage Bushings
CNC Machined Bushing Housings and Sleeves
Built-In Caster Correction
Black Semi-Gloss Powder Coat Finish

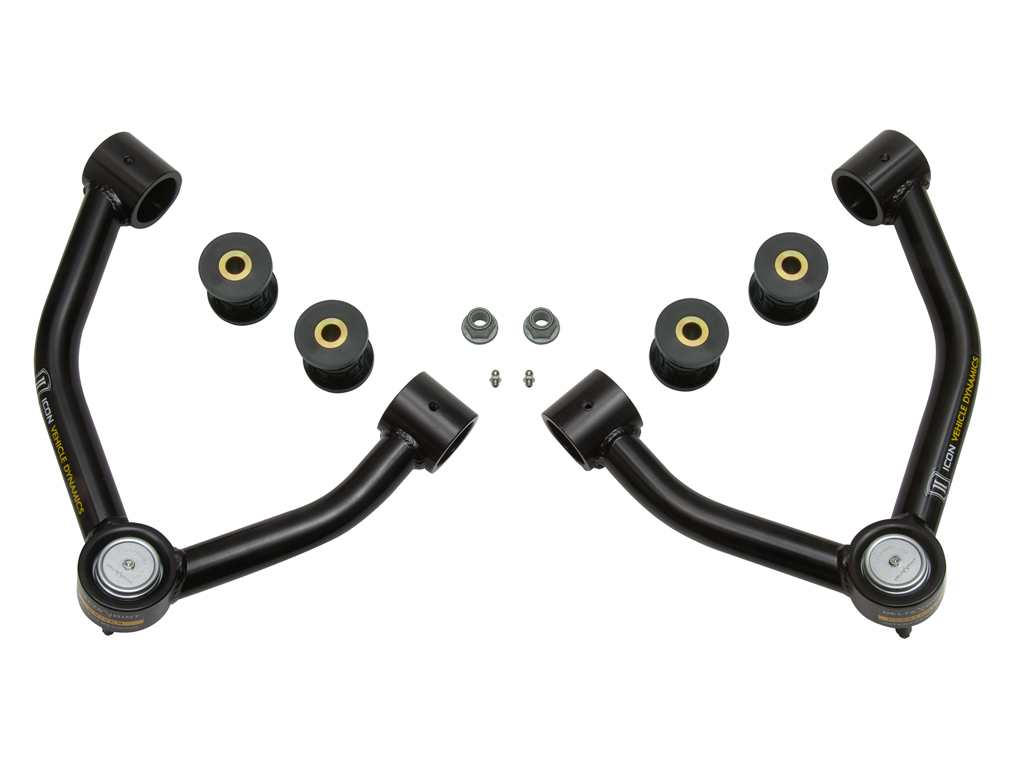

ICON 2015-2022 Chevrolet Colorado/GMC Canyon, Tubular Upper Control Arm Kit w/Delta Joint, 78650DJ
ICON 2015-2022 Chevrolet Colorado/GMC Canyon, Tubular Upper Control Arm Kit w/Delta Joint
ICON 15-22 COLORADO TUBULAR UCA DJ KIT.

Detailed Fitment Results
Year Make Model Submodel 2015 Chevrolet Colorado 2015 GMC Canyon 2016 Chevrolet Colorado 2016 GMC Canyon 2017 Chevrolet Colorado LT 2017 Chevrolet Colorado WT 2017 Chevrolet Colorado Z71 2017 Chevrolet Colorado Base 2017 GMC Canyon 2018 Chevrolet Colorado LT 2018 Chevrolet Colorado WT 2018 Chevrolet Colorado Z71 2018 Chevrolet Colorado Base 2018 GMC Canyon 2019 Chevrolet Colorado LT 2019 Chevrolet Colorado WT 2019 Chevrolet Colorado Z71 2019 Chevrolet Colorado Base 2019 GMC Canyon 2020 Chevrolet Colorado LT 2020 Chevrolet Colorado WT 2020 Chevrolet Colorado Z71 2020 Chevrolet Colorado Base 2020 GMC Canyon 2021 Chevrolet Colorado LT 2021 Chevrolet Colorado WT 2021 Chevrolet Colorado Z71 2021 Chevrolet Colorado Z71 LT 2021 GMC Canyon 2022 Chevrolet Colorado LT 2022 Chevrolet Colorado WT 2022 Chevrolet Colorado Z71 2022 Chevrolet Colorado Z71 LT 2022 GMC Canyon
