Chevrolet, GMC Suspension Shock Absorber Set - Rear - ICON Vehicle Dynamics - 77751EP

SHOCK ABSORBER PAIR
77751EP
TECH NOTE: Compatible with 0-1" rear lift over stock on GMC Canyon and Chevrolet Colorado Trail Boss
TECH NOTE: Compatible with 0-2" rear lift over stock on Chevrolet Colrado WT, LT, and Z71
TECH NOTE: Will not fit Chevrolet Colorado ZR2 or GMC Canyon AT4X
TECH NOTE: An iOS operated device is required to run ICON Intelligent Control App
23-24 GM CANYON/COLORADO 0-1" REAR 2.
5 VS PB CDEV PAIR
ICON VS 2.
5 Aluminum Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street.
They feature piggyback reservoirs and are 100% rebuildable/revalveable.
ICON Vehicle Specific (V.
S.
) 2.
5 Aluminum Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street.
These shocks are configured specifically for each application in both length and damping tune.
Like all ICON'S Shock Absorbers, V.
S.
2.
5 Aluminum Series shocks are fully rebuildable and re-tunable.
For piggyback and specific remote reservoir applications, ICON'S unique use of a 6061-billet aluminum manifold a few inches below the top cap of the shock creates an internal Bump Zone that when used creates an additional 20% of damping force.
This additional force helps prevent harsh bottom outs and controls the suspension when compressing at high velocity.
The ICON CDE Valve upgrade is included for those desiring an easy way to tune the ride electronically from inside the vehicle.
Compression Damping Electronic Valve (CDEV) is an electronically controlled valve that meters the flow of oil to regulate the amount of damping force that is created by the shock when compressed.
This infinitely variable valve can react in less than 40ms and has the ability to make extremely precise adjustments for varying terrain.
CDEV’s hydraulic circuits are also custom tailored per application to create the highest resolution and dynamic range allowable for each specific vehicle.

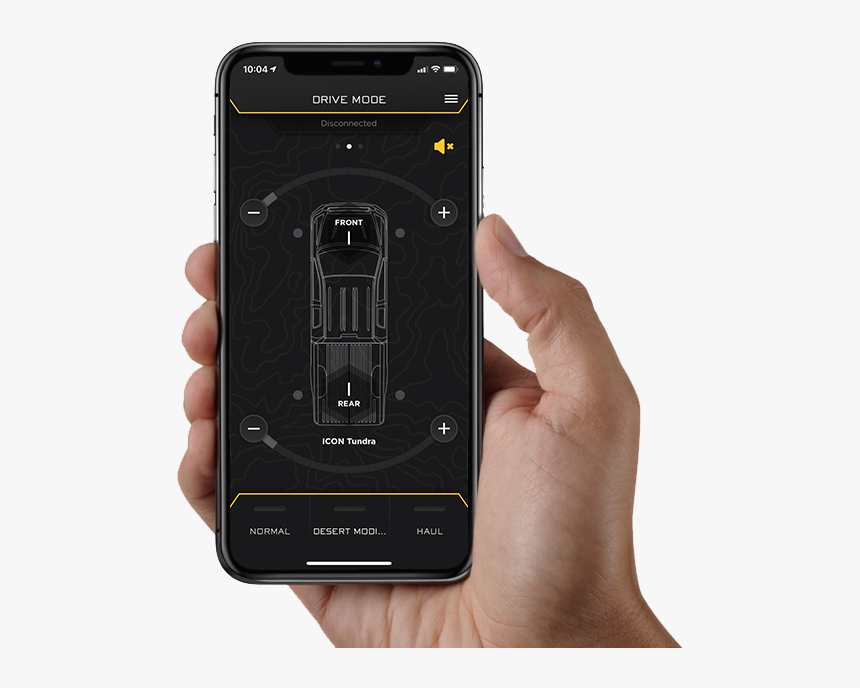

Powered by ICON Intelligent Control and proprietary ICON mobile app, the system uses information from the onboard G-force sensor and Gyroscope to perform calculations based on algorithms and user-defined settings to predict terrain and adjust shock settings via the CDEV accordingly.
ICON's CDE Valve technology allows for in vehicle adjustment of compression damping settings and active adjustment via the ICON Intelligent Control (IIC)
ICON’s internal “Bump Zone” increases damping by 20% to provide more control as the shock approaches full compression
Remote reservoir design improves heat dissipation to reduce shock fade during prolonged use
Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
Nitrogen charged monotube design with piggyback reservoir
One piece digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
7/8” diameter induction hardened, chrome plated shock shaft
PTFE lined spherical bearings and application specific mounting hardware
6061 aircraft grade aluminum CNC machined components
One-piece impact extruded aluminum cylinders offer excellent corrosion resistance and consistent finish
All ICON 2.
5 Series Piggyback and Remote Reservoir shocks can be upgraded to ICON’s Compression Damping Control Valve (CDCV)
100% Rebuildable
100% Revalveable
ICON 2023-2024 GMC Canyon/Chevrolet Colorado, 0-1” Lift, Rear 2.
5 VS Piggyback Reservoir w/ CDEV Shocks, Pair, 77751EP
ICON 2023-2024 GMC Canyon/Chevrolet Colorado, 0-1” Lift, Rear 2.
5 VS Piggyback Reservoir w/ CDEV Shocks, Pair
ICON 23-24 GM CANYON/COLORADO 0-1" REAR 2.
5 VS PB CDEV PAIR.

Detailed Fitment Results
Year Make Model Submodel 2023 Chevrolet Colorado LT 2023 Chevrolet Colorado Trail Boss 2023 Chevrolet Colorado Z71 2023 Chevrolet Colorado WT 2023 GMC Canyon AT4 2023 GMC Canyon Denali 2023 GMC Canyon Elevation 2024 Chevrolet Colorado LT 2024 Chevrolet Colorado Trail Boss 2024 Chevrolet Colorado Z71 2024 Chevrolet Colorado WT 2024 GMC Canyon AT4 2024 GMC Canyon Denali 2024 GMC Canyon Elevation
