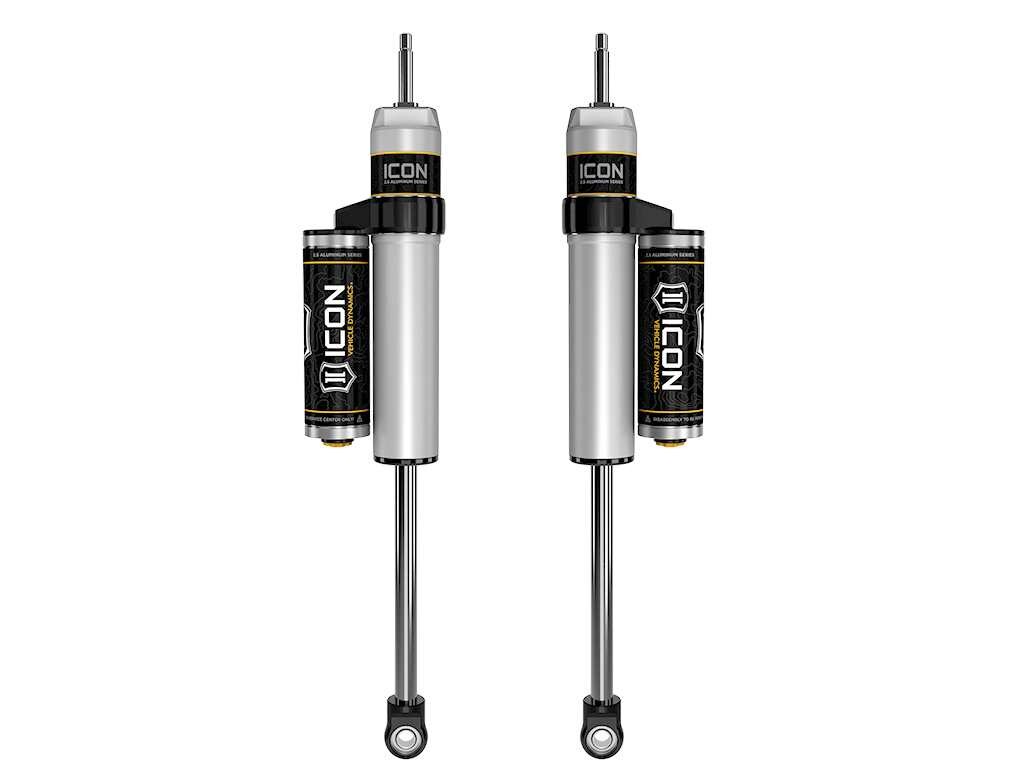

Chevrolet, GMC Suspension Shock Absorber Set - Front - ICON Vehicle Dynamics - 77738P

FRNT SHOCK ABSORBERS
11-16 GM HD 6-8 FRONT 2.
5 VS PB EXT PAIR
TECH NOTE: Aftermarket upper control arms with high angle ball joint required for install
11-16 GM HD 6-8" FRONT 2.
5 VS PB EXT TRAV PAIR
2011-2016 GM HD 6-8" LIFT FRONT 2.
5 VS PIGGYBACK SHOCK EXTENDED TRAVEL PAIR
ICON Vehicle Specific (V.
S.
) 2.
5 Aluminum Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street.
These shocks are configured specifically for each application in both length and damping tune.
Like all ICON'S Shock Absorbers, V.
S.
2.
5 Aluminum Series shocks are 100% rebuildable and 100% revalveable.
For piggyback and specific remote reservoir applications, ICON'S unique use of a 6061 billet aluminum manifold a few inches below the top cap of the shock creates an internal Bump Zone that when used creates an additional 20% of damping force.
This additional force helps prevent harsh bottom outs and controls the suspension when compressing at high velocity.
If you are looking for a more user defined tune, consider looking into the Compression Damping Control Valve (CDCV) shocks.
ICON’s internal “Bump Zone” increases damping by 20% to provide more control as the shock approaches full compression
Remote reservoir design improves heat dissipation to reduce shock fade during prolonged use
Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
Nitrogen charged monotube design with piggyback reservoir
One piece digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
7/8” diameter induction hardened, chrome plated shock shaft
PTFE lined spherical bearings and application specific mounting hardware
6061 aircraft grade aluminum CNC machined components
One-piece impact extruded aluminum cylinders offer excellent corrosion resistance and consistent finish
All ICON 2.
5 Series Piggyback and Remote Reservoir shocks can be upgraded to ICON’s Compression Damping Control Valve (CDCV)
100% Rebuildable
100% Revalveable
ICON 2011-16 GM 2500/3500 HD, 6-8” Lift, Front Ext Travel 2.
5 VS PB Shocks, Pair, 77738P
ICON 2011-16 GM 2500/3500 HD, 6-8” Lift, Front Ext Travel 2.
5 VS PB Shocks, Pair.

Detailed Fitment Results
Year Make Model 2011 Chevrolet Silverado 2500 2011 Chevrolet Silverado 2500 HD 2011 Chevrolet Silverado 3500 2011 Chevrolet Silverado 3500 HD 2011 GMC Sierra 2500 HD 2011 GMC Sierra 3500 HD 2012 Chevrolet Silverado 2500 2012 Chevrolet Silverado 2500 HD 2012 Chevrolet Silverado 3500 2012 Chevrolet Silverado 3500 HD 2012 GMC Sierra 2500 HD 2012 GMC Sierra 3500 HD 2013 Chevrolet Silverado 2500 2013 Chevrolet Silverado 2500 HD 2013 Chevrolet Silverado 3500 2013 Chevrolet Silverado 3500 HD 2013 GMC Sierra 2500 HD 2013 GMC Sierra 3500 HD 2014 Chevrolet Silverado 2500 2014 Chevrolet Silverado 2500 HD 2014 Chevrolet Silverado 3500 HD 2014 GMC Sierra 2500 HD 2014 GMC Sierra 3500 HD 2015 Chevrolet Silverado 2500 2015 Chevrolet Silverado 2500 HD 2015 Chevrolet Silverado 3500 2015 Chevrolet Silverado 3500 HD 2015 GMC Sierra 2500 HD 2015 GMC Sierra 3500 HD 2016 Chevrolet Silverado 2500 2016 Chevrolet Silverado 2500 HD 2016 Chevrolet Silverado 3500 2016 Chevrolet Silverado 3500 HD 2016 GMC Sierra 2500 HD 2016 GMC Sierra 3500 HD
