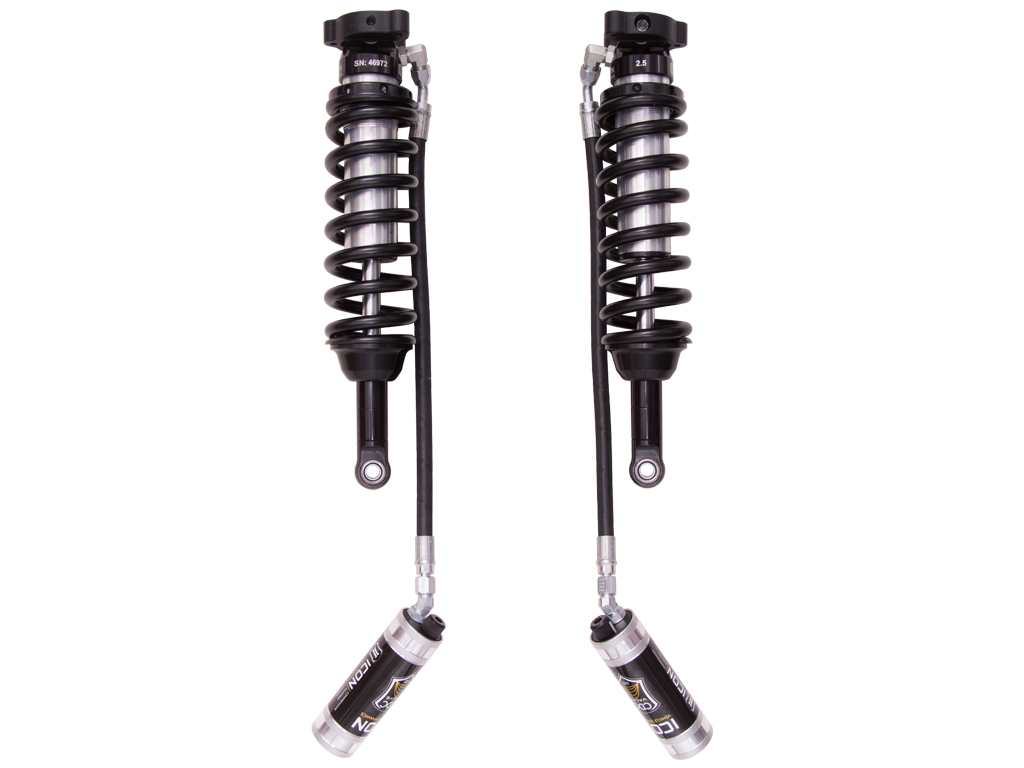

Chevrolet, GMC Coilover Spring and Shock Assembly - Front - ICON Vehicle Dynamics - 71510C

COILOVER KIT
71510C
Factory Wheels and Tires Fitment: Yes
Recommended Aftermarket Wheels: ICON Alloys - 17x8.
5" w/ 4.
75” Backspace / 0mm Offset
Recommended Aftermarket Tires: 32" x 11.
00" (Larger Tires May Fit but Fender Trimming and Modifications will be Required)
TECH NOTE: Not compatible with Colorado ZR2
TECH NOTE: Canyon AT4 trim lift height range.
75-2" over stock
15-22 COLORADO 2.
5 VS RR CDCV COILOVER KIT
ICON’s Vehicle-specific valving provides a sport tuned feel while lift height adjustability allows the use of larger wheel and tires.
The larger 2.
5” shock body provides improved damping ability and outstanding ride characteristics.
The ICON Vehicle Dynamics V.
S.
Series 2.
5” remote reservoir coilover shocks w/ CDCV are an incredible upgrade for the front end of the 2015-2022 Colorado / Canyon truck.
ICON’s Vehicle-specific valving provides a sport tuned feel on and off-road while offering 1.
75-3” of lift height adjustability for use of larger, more aggressive wheel and tire combinations.
ICON's larger 2.
5” shock body and increased piston area over stock components provides improved damping ability and outstanding ride characteristics across varying types of terrain.
Remote reservoirs ensure optimum performance by increasing the duration of consistent damping regardless of situation, keeping the shocks at a cooler operating temperature during heavy use.
The ICON CDC Valve upgrade is included for those desiring an easy way to tune the ride externally with 10 settings from soft to hard.
When paired with ICON rear 2.
0 Aluminum Series or 2.
5 Series shocks, vehicle control will be balanced front to rear resulting in the best overall driving experience for your Colorado / Canyon.
Increased wheel travel and ride quality over stock
Vehicle specific tuned for superior shock damping and control
External reservoir to attain cooler operating temperatures during extended offroad use
ICON CDCV equipped for external tuneability of your shocks
Height-adjustable coilovers offer 1.
75-3" of lift height
ICON engineered coil springs
6061 Aircraft grade aluminum CNC machined components
Corrosion resistant CAD plated shock body with 7/8" shaft
FK Rod End bearings for extended longevity and minimal deflection
100% Bolt-on - no drilling or welding necessary for installation
ICON 2015-2022 Chevrolety Colorado/GMC Canyon,.
75-3” Lift, Front, 2.
5 VS Remote/CDCV Coilover Kit, 71510C
ICON 2015-2022 Chevrolety Colorado/GMC Canyon,.
75-3” Lift, Front, 2.
5 VS Remote/CDCV Coilover Kit
ICON 15-22 COLORADO 2.
5 VS RR CDCV COILOVER KIT.

Detailed Fitment Results
Year Make Model Submodel Fitment Notes 2015 Chevrolet Colorado Recommended Aftermarket Wheel Size: 17x8.5 inch with 4.75” Backspace / 0mm Offset 2015 GMC Canyon Recommended Aftermarket Wheel Size: 17x8.5 inch with 4.75” Backspace / 0mm Offset 2016 Chevrolet Colorado Recommended Aftermarket Wheel Size: 17x8.5 inch with 4.75” Backspace / 0mm Offset 2016 GMC Canyon Recommended Aftermarket Wheel Size: 17x8.5 inch with 4.75” Backspace / 0mm Offset 2017 Chevrolet Colorado Base Recommended Aftermarket Wheel Size: 17x8.5 inch with 4.75” Backspace / 0mm Offset 2017 Chevrolet Colorado LT Recommended Aftermarket Wheel Size: 17x8.5 inch with 4.75” Backspace / 0mm Offset 2017 Chevrolet Colorado Z71 Recommended Aftermarket Wheel Size: 17x8.5 inch with 4.75” Backspace / 0mm Offset 2017 Chevrolet Colorado WT Recommended Aftermarket Wheel Size: 17x8.5 inch with 4.75” Backspace / 0mm Offset 2017 GMC Canyon Recommended Aftermarket Wheel Size: 17x8.5 inch with 4.75” Backspace / 0mm Offset 2018 Chevrolet Colorado Base Recommended Aftermarket Wheel Size: 17x8.5 inch with 4.75” Backspace / 0mm Offset 2018 Chevrolet Colorado LT Recommended Aftermarket Wheel Size: 17x8.5 inch with 4.75” Backspace / 0mm Offset 2018 Chevrolet Colorado Z71 Recommended Aftermarket Wheel Size: 17x8.5 inch with 4.75” Backspace / 0mm Offset 2018 Chevrolet Colorado WT Recommended Aftermarket Wheel Size: 17x8.5 inch with 4.75” Backspace / 0mm Offset 2018 GMC Canyon Recommended Aftermarket Wheel Size: 17x8.5 inch with 4.75” Backspace / 0mm Offset 2019 Chevrolet Colorado Base Recommended Aftermarket Wheel Size: 17x8.5 inch with 4.75” Backspace / 0mm Offset 2019 Chevrolet Colorado LT Recommended Aftermarket Wheel Size: 17x8.5 inch with 4.75” Backspace / 0mm Offset 2019 Chevrolet Colorado Z71 Recommended Aftermarket Wheel Size: 17x8.5 inch with 4.75” Backspace / 0mm Offset 2019 Chevrolet Colorado WT Recommended Aftermarket Wheel Size: 17x8.5 inch with 4.75” Backspace / 0mm Offset 2019 GMC Canyon Recommended Aftermarket Wheel Size: 17x8.5 inch with 4.75” Backspace / 0mm Offset 2020 Chevrolet Colorado Base Recommended Aftermarket Wheel Size: 17x8.5 inch with 4.75” Backspace / 0mm Offset 2020 Chevrolet Colorado LT Recommended Aftermarket Wheel Size: 17x8.5 inch with 4.75” Backspace / 0mm Offset 2020 Chevrolet Colorado Z71 Recommended Aftermarket Wheel Size: 17x8.5 inch with 4.75” Backspace / 0mm Offset 2020 Chevrolet Colorado WT Recommended Aftermarket Wheel Size: 17x8.5 inch with 4.75” Backspace / 0mm Offset 2020 GMC Canyon Recommended Aftermarket Wheel Size: 17x8.5 inch with 4.75” Backspace / 0mm Offset 2021 Chevrolet Colorado LT Recommended Aftermarket Wheel Size: 17x8.5 inch with 4.75” Backspace / 0mm Offset 2021 Chevrolet Colorado Z71 Recommended Aftermarket Wheel Size: 17x8.5 inch with 4.75” Backspace / 0mm Offset 2021 Chevrolet Colorado WT Recommended Aftermarket Wheel Size: 17x8.5 inch with 4.75” Backspace / 0mm Offset 2021 Chevrolet Colorado Z71 LT Recommended Aftermarket Wheel Size: 17x8.5 inch with 4.75” Backspace / 0mm Offset 2021 GMC Canyon AT4 Recommended Aftermarket Wheel Size: 17x8.5 inch with 4.75” Backspace / 0mm Offset 2021 GMC Canyon Denali Recommended Aftermarket Wheel Size: 17x8.5 inch with 4.75” Backspace / 0mm Offset 2021 GMC Canyon Elevation Recommended Aftermarket Wheel Size: 17x8.5 inch with 4.75” Backspace / 0mm Offset 2021 GMC Canyon Elevation …
