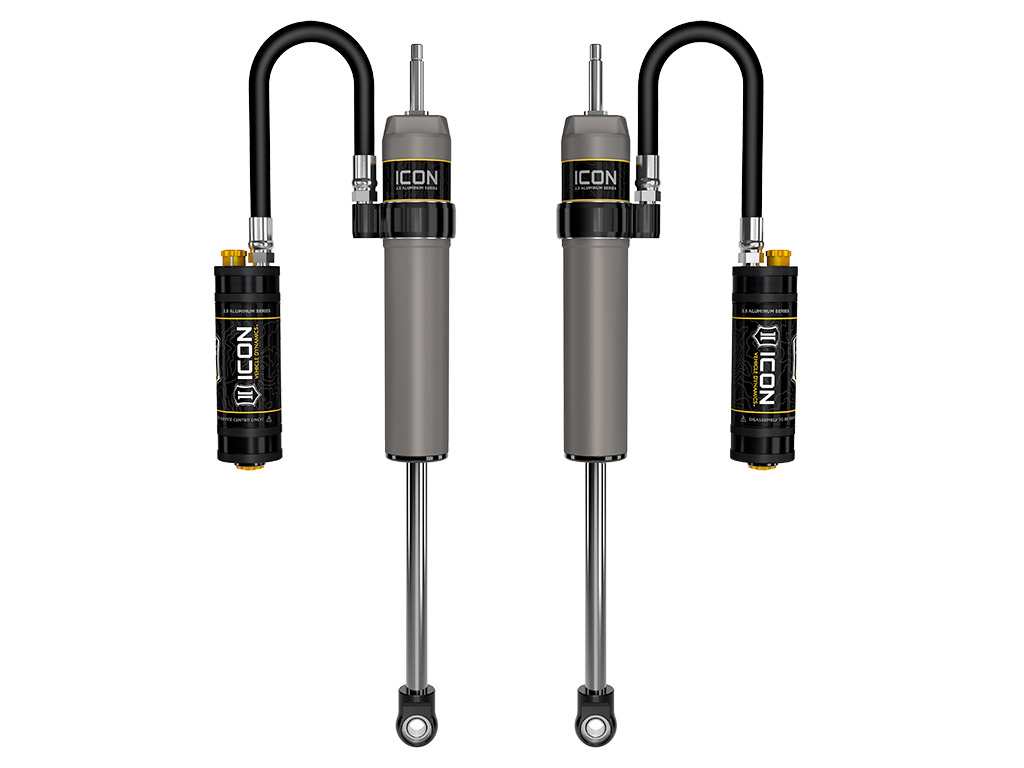

Ford (4 X 4/4WD) Suspension Shock Absorber Set - Front - ICON Vehicle Dynamics - 67800CP

SHOCK ABSORBER PAIR
67800CP
TECH NOTE: Compatible with 0-3” of front lift over stock of 2005-2019 F-250/F-350/F-450 4WD
TECH NOTE: Compatible with 0-3.
75” of front lift over stock of 2020-2022 F-250/F-350 4WD without Tremor package
TECH NOTE: Compatible with 0-2.
75” of front lift over stock of 2020-2022 F-250/F-350 4WD equipped with Tremor package
TECH NOTE: Compatible with 0-3" of front lift over stock of 2023-2024 F-250/F-350 4WD without Tremor package
TECH NOTE: Compatible with 0-2” of front lift over stock of 2023-2024 F-250/F-350 4WD equipped with Tremor package
TECH NOTE: Compatible with 0-3.
75” of front lift over stock of 2020-2022 F-450 4WD
TECH NOTE: Compatible with 0-3” of front lift over stock of 2023-2024 F-450 4WD
TECH NOTE: Can be installed as secondary shocks in OE location with ICON 2.
5-3" lift coilover conversions
TECH NOTE: Also requires Reservoir Doubler Kit part number 611003 if installing as secondary shock along with ICON front coilover conversion
05-24 FSD 4WD 0-2.
5" FRONT 2.
5 VS RR CDCV PAIR
ICON 2.
5 Series shocks are designed to give you outstanding performance off-road and a smooth ride on the street.
With a vehicle-specific design, these shocks are configured specifically for each application in both length and damping tune.
ICON Vehicle Specific (V.
S.
) 2.
5 Aluminum Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street.
These shocks are configured specifically for each application in both length and damping tune.
Like all ICON'S Shock Absorbers, V.
S.
2.
5 Aluminum Series shocks are 100% rebuildable and 100% revalveable.
For piggyback and specific remote reservoir applications, ICON'S unique use of a 6061 billet aluminum manifold a few inches below the top cap of the shock creates an internal Bump Zone that when used creates an additional 20% of damping force.
This additional force helps prevent harsh bottom outs and controls the suspension when compressing at high velocity.
The ICON CDC Valve is an externally adjustable valve that restricts oil flow into the reservoir which creates 10 levels of compression damping force ranges.
Nitrogen charged monotube design with remote reservoir
Remote reservoir design improves heat dissipation to reduce shock fade during prolonged use
ICON's CDC Valve technology allows for 10 levels of high-resolution compression adjustability with the turn of a knob
6061 aircraft grade aluminum CNC machined components
7/8” diameter induction hardened, chrome plated shock shaft
One piece digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
One-piece impact extruded aluminum cylinders offer excellent corrosion resistance and consistent finish
PTFE lined spherical bearings and application specific mounting hardware
Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
ICON’s internal “Bump Zone” increases damping by 20% to provide more control as the shock approaches full compression
100% Revalveable
100% Rebuildable
ICON 2005-2024 Ford Super Duty 4WD, 0-2.
5” Lift, Front, V.
S.
2.
5 Aluminum Series Shock Absorbers, Remote Reservoir w/ CDCV, Pair, 67800CP
ICON 2005-2024 Ford Super Duty 4WD, 0-2.
5” Lift, Front, V.
S.
2.
5 Aluminum Series Shock Absorbers, Remote Reservoir w/ CDCV, Pair
ICON 05-24 FSD 4WD 0-2.
5" FRONT 2.
5 VS RR CDCV PAIR.

Detailed Fitment Results
Year Make Model Submodel 2005 Ford F-250 Super Duty XL 2005 Ford F-250 Super Duty XLT 2005 Ford F-250 Super Duty Lariat 2005 Ford F-250 Super Duty King Ranch 2005 Ford F-250 Super Duty Harley-Davidson Edition 2005 Ford F-350 Super Duty Lariat 2005 Ford F-350 Super Duty XLT 2005 Ford F-350 Super Duty King Ranch 2005 Ford F-350 Super Duty XL 2005 Ford F-350 Super Duty Harley-Davidson Edition 2005 Ford F-450 Super Duty 2006 Ford F-250 Super Duty XL 2006 Ford F-250 Super Duty XLT 2006 Ford F-250 Super Duty Lariat 2006 Ford F-250 Super Duty King Ranch 2006 Ford F-250 Super Duty Harley-Davidson Edition 2006 Ford F-350 Super Duty Lariat 2006 Ford F-350 Super Duty XLT 2006 Ford F-350 Super Duty King Ranch 2006 Ford F-350 Super Duty XL 2006 Ford F-350 Super Duty Harley-Davidson Edition 2006 Ford F-450 Super Duty 2007 Ford F-250 Super Duty XL 2007 Ford F-250 Super Duty XLT 2007 Ford F-250 Super Duty Lariat 2007 Ford F-250 Super Duty King Ranch 2007 Ford F-250 Super Duty Harley-Davidson Edition 2007 Ford F-350 Super Duty Lariat 2007 Ford F-350 Super Duty XLT 2007 Ford F-350 Super Duty King Ranch 2007 Ford F-350 Super Duty XL 2007 Ford F-350 Super Duty Harley-Davidson Edition 2007 Ford F-450 Super Duty 2008 Ford F-250 Super Duty XL 2008 Ford F-250 Super Duty XLT 2008 Ford F-250 Super Duty Lariat 2008 Ford F-250 Super Duty King Ranch 2008 Ford F-250 Super Duty Harley-Davidson Edition 2008 Ford F-250 Super Duty FX4 2008 Ford F-350 Super Duty Lariat 2008 Ford F-350 Super Duty XLT 2008 Ford F-350 Super Duty King Ranch 2008 Ford F-350 Super Duty XL 2008 Ford F-350 Super Duty Harley-Davidson Edition 2008 Ford F-350 Super Duty FX4 2008 Ford F-450 Super Duty 2009 Ford F-250 Super Duty XL 2009 Ford F-250 Super Duty XLT 2009 Ford F-250 Super Duty Lariat 2009 Ford F-250 Super Duty King Ranch 2009 Ford F-250 Super Duty Harley-Davidson Edition 2009 Ford F-250 Super Duty FX4 2009 Ford F-250 Super Duty Cabela's 2009 Ford F-350 Super Duty Lariat 2009 Ford F-350 Super Duty XLT 2009 Ford F-350 Super Duty King Ranch 2009 Ford F-350 Super Duty XL 2009 Ford F-350 Super Duty Harley-Davidson Edition 2009 Ford F-350 Super Duty FX4 2009 Ford F-350 Super Duty Cabela's 2009 Ford F-450 Super Duty 2010 Ford F-250 Super Duty XL 2010 Ford F-250 Super Duty XLT 2010 Ford F-250 Super Duty Lariat 2010 Ford F-250 Super Duty King Ranch 2010 Ford F-250 Super Duty Harley-Davidson Edition 2010 Ford F-250 Super Duty FX4 2010 Ford F-250 Super Duty Cabela's 2010 Ford F-350 Super Duty Lariat 2010 Ford F-350 Super Duty XLT 201…
