2008-2010 Ford F-250/F-350 Super Duty Front 7 Inch Lift Box Kit - ICON Vehicle Dynamics - 67020

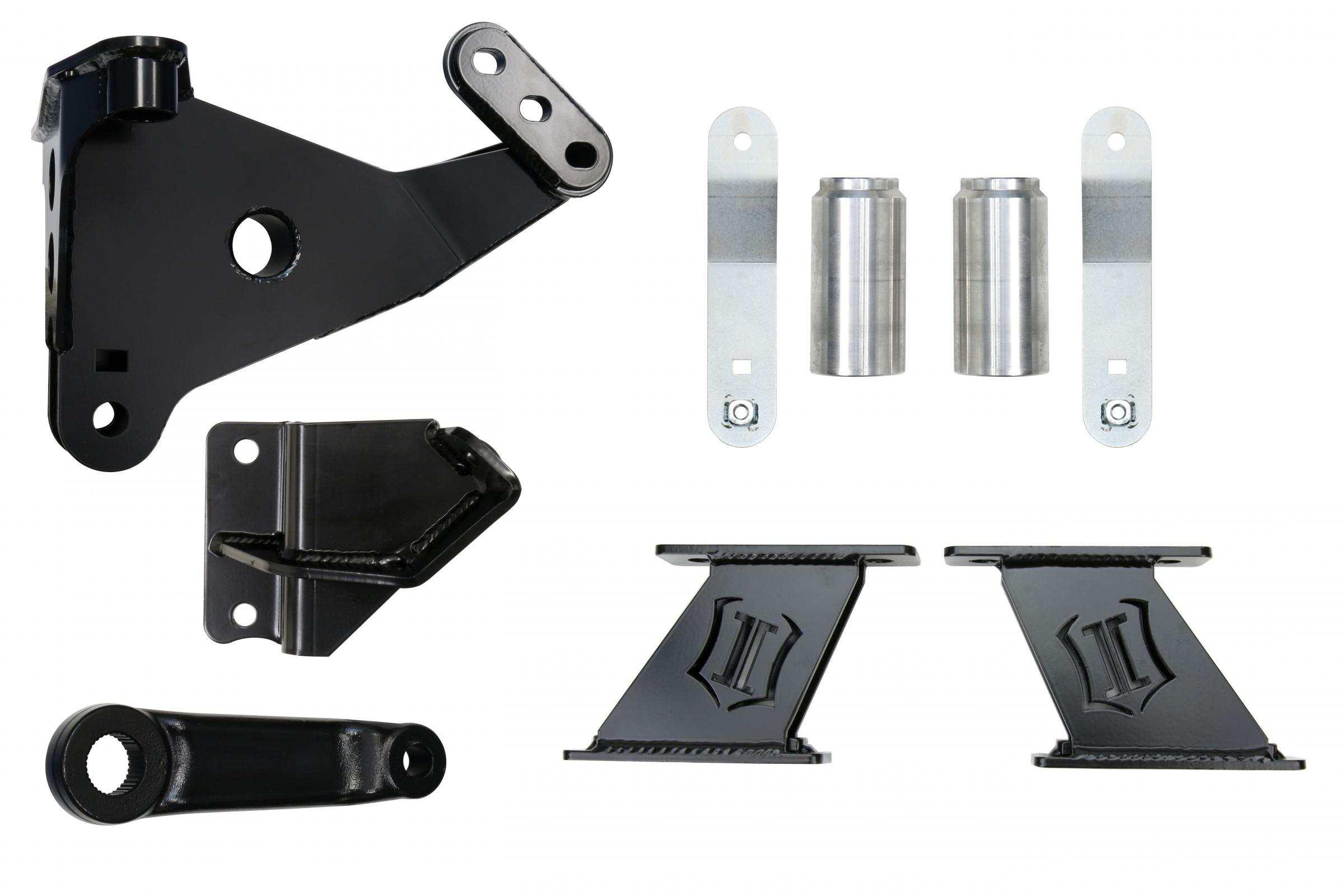

The ICON Vehicle Dynamics 2008-2010 Ford F-250 and F-350 Super Duty 7 Inch Lift Box kit contains many of the miscellaneous parts required to lift the vehicle when using an ICON 7 Inch lift suspension system. This kit includes a fabricated front track bar drop bracket made from CNC laser cut and brake formed .25 Inch steel plate for strength and to ensure proper track bar angle and axle placement.

A 4 Inch drop pitman arm corrects steering geometry for the lift height range and eliminates bump steer common when the steering drag link and track bar are not parallel. A fabricated steering stabilizer drop bracket allows a stock replacement steering stabilizer shock to be attached to the drag link and be fully compatible with the drop pitman arm.

Front sway bar drop brackets correct sway bar angle and prevents bind through the full range of suspension travel. All fabricated components are coated with a semi-gloss black powder coat finish for corrosion resistance and backed up with ICON's Limited Lifetime Warranty.

Features and Benefits:


Essential components for install of ICON 7 Inch lift suspension systems

Track bar bracket fabricated from CNC laser cut and brake-formed .25 Inch steel plate

4 Inch drop pitman arm

Fabricated steering stabilizer drop bracket allows stock replacemnt steering stabilizer fitment

Front sway bar drop brackets prevent sway bar bind

CNC machined aluminum bump stop spacers

Semi-gloss black powder coat finish for all fabricated components

Fully bolt on installation with all hardware included

Protected by ICON's Limited Lifetime Warranty


Details


Color: Black

Material: Steel, Aluminum

Bolt Grade: 8.0

Bolt Material: Steel

Bushings Included: No

Grade Type: Performance

Universal Or Specific Fit: Specific



Detailed Fitment Results
Year Make Model Engine Fuel 2008 Ford F-350 Super Duty 5.4L GAS 2008 Ford F-350 Super Duty 6.4L DIESEL 2008 Ford F-350 Super Duty 6.8L GAS 2008 Ford F-250 Super Duty 5.4L GAS 2008 Ford F-250 Super Duty 6.4L DIESEL 2008 Ford F-250 Super Duty 6.8L GAS 2009 Ford F-350 Super Duty 5.4L GAS 2009 Ford F-350 Super Duty 6.4L DIESEL 2009 Ford F-350 Super Duty 6.8L GAS 2009 Ford F-250 Super Duty 5.4L GAS 2009 Ford F-250 Super Duty 6.4L DIESEL 2009 Ford F-250 Super Duty 6.8L GAS 2010 Ford F-350 Super Duty 5.4L GAS 2010 Ford F-350 Super Duty 6.4L DIESEL 2010 Ford F-350 Super Duty 6.8L GAS 2010 Ford F-250 Super Duty 5.4L GAS 2010 Ford F-250 Super Duty 6.4L DIESEL 2010 Ford F-250 Super Duty 6.8L GAS
