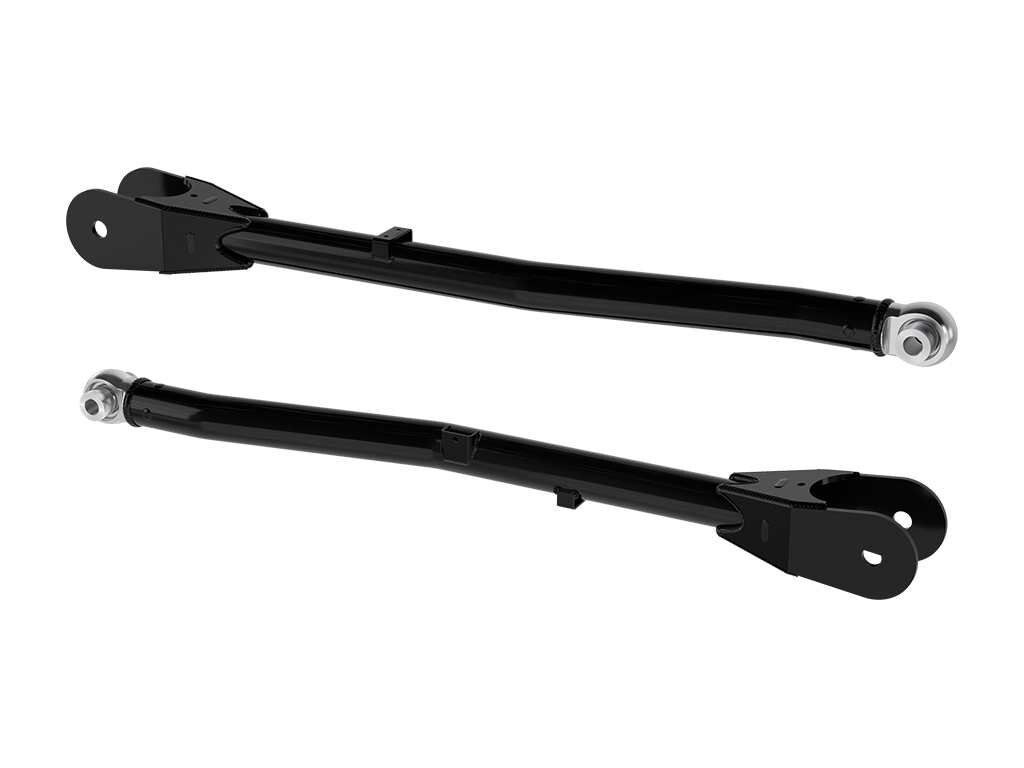

2023-2025 Ford F-250/F-350 Super Duty 4WD Front 4-Link Conversion Upper Links - ICON Vehicle Dynamics - 64052

These upper links are an essential component of the ICON 2023-2025 Ford Super Duty 4-Link Conversion System.

This 4-Link system not only gives your Ford Super Duty an aggressive look, it enhances the articulation of the front suspension by eliminating bushing bind and improves handling of the truck by maintaining consistent caster angles through the entirety of the front suspension travel range.

The large, deflective radius arm bushings are replaced with competition grade, PTFE lined spherical bearings in each link. This harder surface minimizes deflection to further increase the overall handling characteristics for maximum predictability and suspension responsiveness.

Additionally, the ICON double adjusters in the lower links allows tuning of caster angle while the links are installed on the vehicle, easing the front-end alignment process.

Features and Benefits:


The 4-link brackets, upper links, and lower links are sold separately, allowing the 4-link system to be customized for your specific Ford Super Duty year range.

4-Link system maintains consistent caster angles through suspension travel for superior handling characteristics

Improves front end articulation and overall drivability

Allow on-vehicle caster adjustment via ICON double adjusters in lower links

Upper links are constructed from CNC machined 2 Inch x .188 Inch wall DOM steel tubing

PTFE lined FK spherical bearings eliminate deflection

Corrosion resistant semi-gloss black powder coat finish

Fabricated components covered under ICON's Limited Lifetime Warranty


Details


Color: Black

Material: Dom Steel

Adjustable: No

Bushing Material: Rod End Bearing

Construction: Tubular

Control Arm Color: Black

Control Arm Construction: Tubular

Control Arm Material: Dom Steel

Grade Type: Performance

Grease Fitting Included: No

Mounting Bracket Included: No

Mounting Hardware Included: No

Pre Assembled: Yes

Pre Greased: No

Reinforced: Yes

Service Parts: 614512 - 64031/214030 Bearing And Ret Ring Kit

Suspension Grade Type: Performance

Suspension Type: Spring

Tubing Color: Black

Tubing Material: Steel

Add On Part: 164502 - 05-25 FSD Front Lower Links, 64053 - 23-25 FSD 4-Link Frame Bracket Kit



Detailed Fitment Results
Year Make Model Engine Fuel 2023 Ford F-350 Super Duty 6.7L DIESEL 2023 Ford F-350 Super Duty 6.8L GAS 2023 Ford F-350 Super Duty 7.3L GAS 2023 Ford F-250 Super Duty 6.7L DIESEL 2023 Ford F-250 Super Duty 6.8L GAS 2023 Ford F-250 Super Duty 7.3L GAS 2024 Ford F-350 Super Duty 6.7L DIESEL 2024 Ford F-350 Super Duty 6.8L GAS 2024 Ford F-350 Super Duty 7.3L GAS 2024 Ford F-250 Super Duty 6.7L DIESEL 2024 Ford F-250 Super Duty 6.8L FLEX 2024 Ford F-250 Super Duty 6.8L GAS 2024 Ford F-250 Super Duty 7.3L GAS 2025 Ford F-350 Super Duty 6.7L DIESEL 2025 Ford F-350 Super Duty 6.8L GAS 2025 Ford F-350 Super Duty 7.3L GAS 2025 Ford F-250 Super Duty 6.7L DIESEL 2025 Ford F-250 Super Duty 6.8L FLEX 2025 Ford F-250 Super Duty 6.8L GAS 2025 Ford F-250 Super Duty 7.3L GAS
