Ford (4WD) Radius Arm Kit - Front - ICON Vehicle Dynamics - 64042

RADIUS ARM KIT
64042
OEM Wheels and Tires Fitment: Yes
Recommended Aftermarket Tires: Up to a 37" x 12.
50"
Recommended Aftermarket Wheels: ICON Alloys - 17x8.
5" w/ 5” Backspace / 6mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.
25” Backspace / 6mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.
25” Backspace / 6mm Offset
TECH NOTE: Compatible with 0-3" front lift height without need for caster bushings.
TECH NOTE: Compatible 4-5.
5" of front lift when paired with caster bushings, part number 62530, or ICON Radius Arm Drop Brackets, part number 64046
TECH NOTE: Models equipped with OnBoard Scales and 1.
5-3.
5" of front lift also require sensor bracket part number 66203
TECH NOTE: Models equipped with OnBoard Scales and 4-6" of front lift also require sensor bracket part number 66204
23-24 FSD RADIUS ARM SYSTEM
The ICON Vehicle Dynamics Ford Super Duty 4WD Radius Arm System is designed with adjustable caster cams and their fabricated, fully boxed design ensures strength and utilizes a profile optimized for tire clearance at full steering lock.
The ICON Vehicle Dynamics Ford 2023-2024 F-250 and F-350 Super Duty 4WD Radius Arm System is designed with adjustable caster cams for use with stock height trucks up to 3” of front lift with the radius arm installed in the factory pivot, eliminating the need for caster bushings.
For taller lift heights from 4-5.
5" of front lift, these radius arms can be installed in the factory pivots along with caster bushings to elimiate the need for radius arm drop brackets and improve ground clearance.
They feature a sealed pivot bushing that minimizes road feedback and ensures a long life and quiet operation.
Additionally, their fabricated, fully boxed design ensures strength and utilizes a profile optimized for tire clearance at full steering lock, making a 37” tall tire clear without coming in contact with the radius arm.
Fully boxed design
Built in caster adjustment for optimized return to center
Replaceable sealed pivot bushing provides maintenance free operation
CNC machined and laser cut steel components
Semi-gloss black powder coat finish
Ability to have a 5.
5” backspace wheel with 37” tires without contact with the arm at steering lock

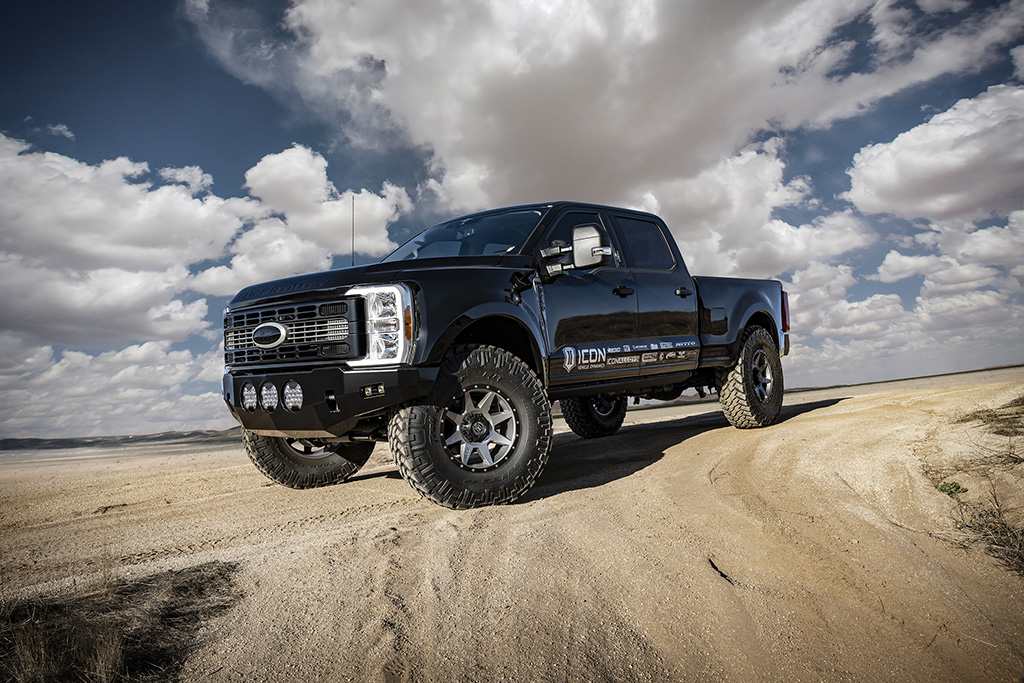

ICON 2023-2024 Ford F-250/F-350 Super Duty 4WD, Radius Arm System, 64042
ICON 2023-2024 Ford F-250/F-350 Super Duty 4WD, Radius Arm System
ICON 23-24 FSD RADIUS ARM SYSTEM.

Detailed Fitment Results
Year Make Model Submodel 2023 Ford F-250 Super Duty Lariat 2023 Ford F-250 Super Duty King Ranch 2023 Ford F-250 Super Duty Platinum 2023 Ford F-250 Super Duty Limited 2023 Ford F-250 Super Duty XL 2023 Ford F-250 Super Duty XLT 2023 Ford F-350 Super Duty Lariat 2023 Ford F-350 Super Duty King Ranch 2023 Ford F-350 Super Duty Platinum 2023 Ford F-350 Super Duty Limited 2023 Ford F-350 Super Duty XL 2023 Ford F-350 Super Duty XLT 2024 Ford F-250 Super Duty Lariat 2024 Ford F-250 Super Duty King Ranch 2024 Ford F-250 Super Duty Platinum 2024 Ford F-250 Super Duty Limited 2024 Ford F-250 Super Duty XL 2024 Ford F-250 Super Duty XLT 2024 Ford F-350 Super Duty Lariat 2024 Ford F-350 Super Duty King Ranch 2024 Ford F-350 Super Duty Platinum 2024 Ford F-350 Super Duty Limited 2024 Ford F-350 Super Duty XL 2024 Ford F-350 Super Duty XLT
