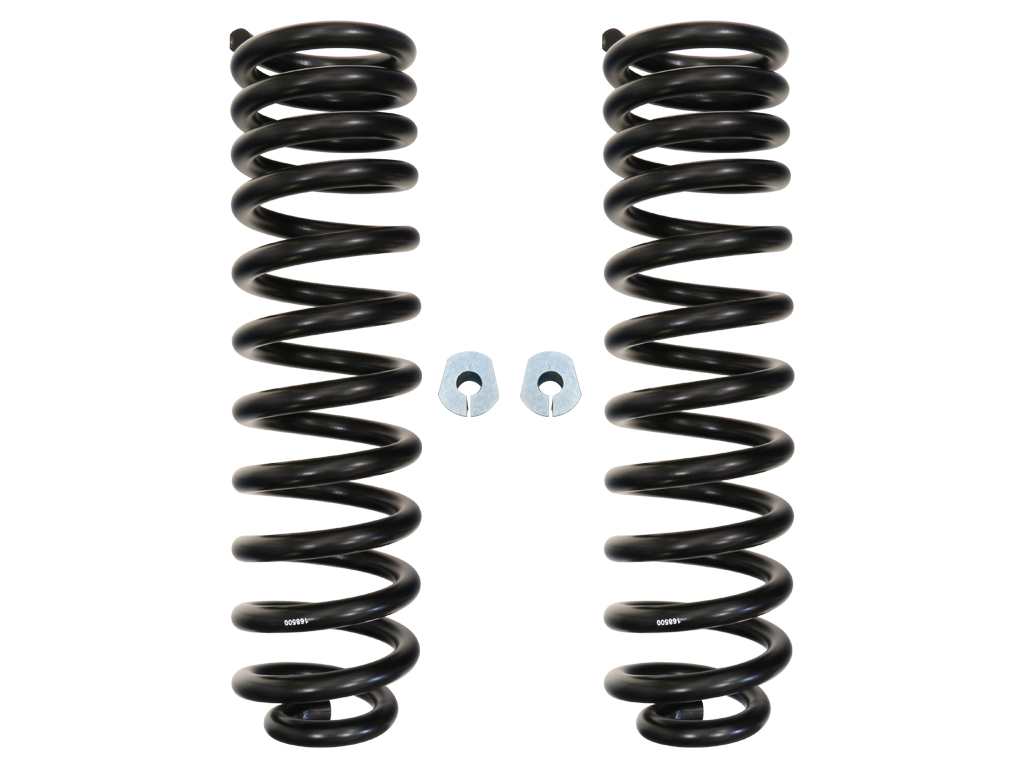

2023 Ford F-250/F-350 Super Duty 4WD Gas 2.5 Inch Lift Front Dual Rate Coil Spring Kit W/ Caster Cams - ICON Vehicle Dynamics - 62513

The ICON Vehicle Dynamics 2023 F-250 and F-350 Super Duty 2.5 Inch coil springs are designed for drivers demanding the ultimate in performance and ride quality, while allowing for increased wheel travel (when used with ICON shocks) and the fitment of larger tires. The ICON Ford Super Duty coil springs provide 2.5 Inch of lift height and feature a dual rate design optimized for use with trucks equipped with gasoline engines.

The dual rate design allows for a softer initial rate for superb on-road comfort and a firmer secondary rate that increases during compression for excellent bottoming resistance and off-road performance. Caster correction cams are also included to ensure proper caster angle with the new, taller ride height.

Like all ICON coil springs, they feature a lifetime guarantee against sagging/breakage to produce confidence in knowing that you have the best suspension products available for the 2023 Super Duty.

Features and Benefits:


2.5 Inch lift height

Dual rate coil springs improve on and off-road ride quality over stock

Dual-stage, semi-gloss powder coat offers excellent corrosion resistance

Caster cam kit included for ideal caster angles with ride height increase

100 Percent bolt-on system makes for an easy install

Lifetime warranty against sagging/breakage


Details


Color: Black

Material: Steel

Finish: Powdercoated

Alignment Cams Included: Yes

Bump Stops Included: No

Front Spring Rate Type: Progressive Dual Rate

Front Spring Seat Included: No

Grade Type: Performance

Maximum Lift Height: 2.5 Inch

Oem Wheels & Tires Fitment: Yes

Recommended Aftermarket Tires: 35 Inch X 12.50 Inch (Larger Tires May Fit But Fender Trimming And Modifications Will Be Required)

Recommended Aftermarket Wheels: Icon Alloys - 18x9 Inch W/ 5.25 Inch Backspace / 6mm Offset, Icon Alloys - 20x9 Inch W/ 5.25 Inch Backspace / 6mm Offset, Icon Alloys - 17x8.5 Inch W/ 5 Inch Backspace / 6mm Offset

Spring Color: Black

Spring Material: Steel

Add On Part: 64038 - 17-25 FSD Adj Track Bar Kit, 61111 - 17-25 FSD Front 2.5 Inch Extended Ss Brake Line Kit, 64039 - 08-25 FSD Track Bar Bump Steer Bracket Kit



Detailed Fitment Results
Year Make Model Engine Fuel 2023 Ford F-350 Super Duty 6.8L GAS 2023 Ford F-350 Super Duty 7.3L GAS 2023 Ford F-250 Super Duty 6.8L GAS 2023 Ford F-250 Super Duty 7.3L GAS
