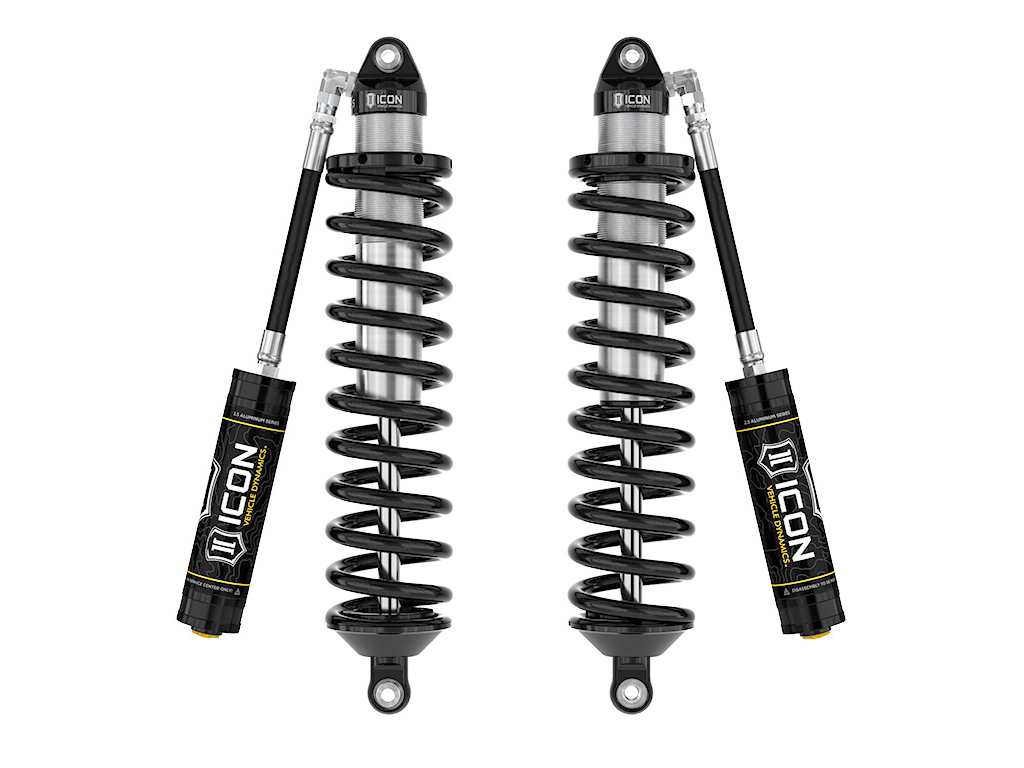

08-16 FSD 4WD 4.5 Inch 2.5 VS RR Coilover Kit - ICON Vehicle Dynamics - 61750

These coil-over shocks are the ultimate suspension modification for your Super Duty. These are not race style shocks that were modified to fit they were designed from the ground up for the 2008 - 2016 Super Duty.

They are adjustable in ride height from 4 Inch to 6.5 Inch of lift. They have any external Reservoir for excellent heat dissipation, a Dual Rate Spring for a great ride quality on or off-road, and are completely Rebuilable.

Details


Active Or Passive Suspension: Passive

Adjustable Compression: No

Adjustable Damping: No

Adjustable Rebound: No

Adjustable Ride Height: Yes

Assembled: Yes

Body Diameter: 2.5 Inch

Coil Over Springs Included: Yes

Compressed Length: 15.4

Cylinder Color: Silver

Cylinder Finish: Cadmium Plated

Cylinder Material: Steel

Damping Type: Oil

Dust Shield Included: No

Extended Length: 24.38

Front Spring Rate: 400 Inch

Gas Charged: Yes

Grade Type: Performance

Includes Bump Stop: No

Internal Construction Type: Single Tube

Lower Mount Type: Eyelet

Oem Wheels & Tires Fitment: Yes

Recommended Aftermarket Tires: 35 Inch X 12.50 Inch (Larger Tires May Fit But Fender Trimming And Modifications Will Be Required)

Recommended Aftermarket Wheels: Icon Alloys - 20x9 Inch W/ 5.25 Inch Backspace / 6mm Offset, Icon Alloys - 18x9 Inch W/ 5.25 Inch Backspace / 6mm Offset, Icon Alloys - 17x8.5 Inch W/ 5.00 Inch Backspace / 6mm Offset

Remote Reservoir: Yes

Reservoir Style: Remote

Self Leveling: No

Service Parts: 252001 - 2.5 Fixed Spanner Wrench, 252003 - Seal Install Tool 2.5/3.0, 191015 - 10 Inch Finned Resi Upgrade Kit, 252011 - 2.5 Piggyback/Remote Resi/Bypass Rebuild Kit, 254100G - 1 Gallon Icon Performance Shock Oil, 257339 - 7/8 Shaft 13.25 Oal, 9.00 Travel, 252002 - Universal Spanner Wrench (2.0/2.5/3.0), 611019 - Coilover Hardware Kit Pair

Shaft Diameter: 0.875

Shock Absorber Body End Measuring Point: Top Of Upper Mount Plate

Shock Absorber Rod End Measuring Point: Center Of Eylet

Spring Color: Black

Spring Material: Steel

Spring Rate Type: Linear

Travel Length: 8.98

Upper Mount Type: Mounting Plate

Valving Type: Digressive

Add On Part: 252012 - -4 To -10 Hose Shield Kit, 198001 - Billet Spanner Wrench Kit, 198000 - 2 Pin Coilover Spanner Wrench Kit



Detailed Fitment Results
Year Make Model Engine Fuel 2008 Ford F-350 Super Duty 6.4L DIESEL 2008 Ford F-250 Super Duty 6.4L DIESEL 2009 Ford F-350 Super Duty 6.4L DIESEL 2009 Ford F-250 Super Duty 6.4L DIESEL 2010 Ford F-250 Super Duty 6.4L DIESEL 2010 Ford F-350 Super Duty 6.4L DIESEL 2011 Ford F-350 Super Duty 6.7L DIESEL 2011 Ford F-250 Super Duty 6.7L DIESEL 2012 Ford F-350 Super Duty 6.7L DIESEL 2012 Ford F-250 Super Duty 6.7L DIESEL 2013 Ford F-350 Super Duty 6.7L DIESEL 2013 Ford F-250 Super Duty 6.7L DIESEL 2014 Ford F-350 Super Duty 6.7L DIESEL 2014 Ford F-250 Super Duty 6.7L DIESEL 2015 Ford F-350 Super Duty 6.7L DIESEL 2015 Ford F-250 Super Duty 6.7L DIESEL 2016 Ford F-350 Super Duty 6.7L DIESEL 2016 Ford F-250 Super Duty 6.7L DIESEL
