2005-2023 Ford F-250/F-350 Super Duty 4WD 2.5-3 Inch Lift V.S. 2.5 Series Coilover Conversion Kit Remote Reservoir W/ Caster Cams - ICON Vehicle Dynamics - 61720

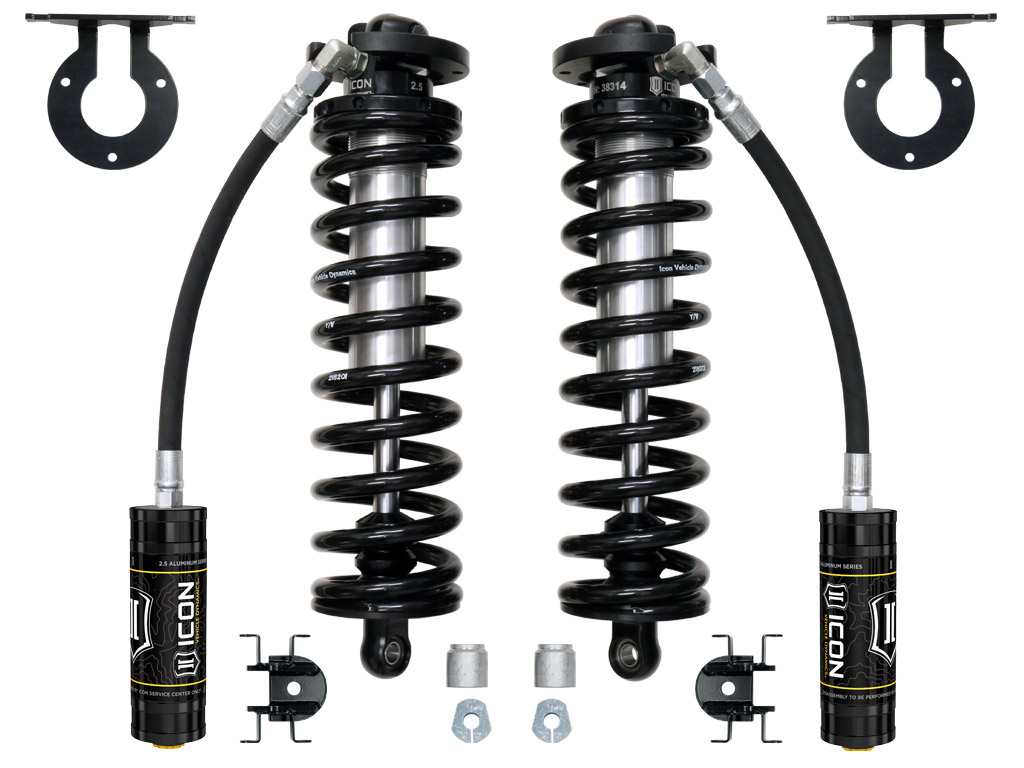

ICON's 2.5 VS Series Remote Reservoir Bolt-In Coilover Conversion Kit will add a new level of performance and adjustability to 2005-2023 F-250 and F-350 pickup trucks. The advantage of utilizing a coilover conversion kit is that they have been designed to increase the overall damping ability of the vehicle while at the same time allowing for user-defined ride height adjustment.

The 2.5 Inch Remote Reservoir Coilover featured in these kits is based off of ICON's 2.5 VS Series shock line - meaning that features like ICON engineered coil springs, FK Rod End bearings, and vehicle-specific valving come standard. Quality machined components and a fully serviceable design make for a product that will stand the test of time, yet retain the ability to be rebuilt or re-valved as necessary.

Features and Benefits:


Bolt-in system fits in OE coil bucket location

Ride height adjustable coilovers provide 2.5-3 Inch or 3.25-3.75 Inch of lift, depending on year model of truck

Decreased body roll and improved on and off-road ride dynamics

Vehicle-specific shock valving provides unparalleled ride quality and control

Shocks are fully rebuildable and revalveable

Coilover conversion allows for addition of secondary shock

Corrosion resistant CAD plated coilover shock body with 7/8 Inch shaft

Eibach coil springs guaranteed for life against sagging or breakage

FK Rod End bearings for extended longevity and minimal deflection


Details


Material: Aluminum, Steel

Active Or Passive Suspension: Passive

Adjustable Compression: No

Adjustable Damping: No

Adjustable Rebound: No

Adjustable Ride Height: Yes

Alignment Cams Included: Yes

Assembled: Yes

Body Diameter: 2.5 Inch

Coil Over Springs Included: Yes

Compressed Length: 12.75

Cylinder Color: Silver

Cylinder Finish: Cadmium Plated

Cylinder Material: Steel

Damping Type: Oil

Dust Shield Included: No

Extended Length: 19.71

Front Spring Rate: 400 Inch

Gas Charged: Yes

Grade Type: Performance

Includes Bump Stop: Yes

Internal Construction Type: Single Tube

Lower Mount Type: Eyelet

Maximum Lift: 3.0 Inch

Maximum Ride Height Raising Distance: 3.0

Minimum Lift: 2.5 Inch

Oem Wheels & Tires Fitment: Yes

Recommended Aftermarket Tires: 35 Inch X 12.50 Inch (Larger Tires May Fit But Fender Trimming And Modifications Will Be Required)

Recommended Aftermarket Wheels: Icon Alloys - 20x9 Inch W/ 5.25 Inch Backspace / 6mm Offset, Icon Alloys - 18x9 Inch W/ 5.25 Inch Backspace / 6mm Offset, Icon Alloys - 17x8.5 Inch W/ 5.00 Inch Backspace / 6mm Offset

Remote Reservoir: Yes

Reservoir Style: Remote

Self Leveling: No

Service Parts: 191016 - 7.5 Inch Finned Resi Upgrade Kit, 252011 - 2.5 Piggyback/Remote Resi/Bypass Rebuild Kit, 252001 - 2.5 Fixed Spanner Wrench, 254100G - 1 Gallon Icon Performance Shock Oil, 252003 - Seal Install Tool 2.5/3.0, 257337 - 7/8 Shaft 11.25 Oal, 7.00 Travel, 611019 - Coilover Hardware Kit Pair, 252002 - Universal Spanner Wrench (2.0/2.5/3.0)

Shaft Diameter: 0.875

Shock Absorber Body End Measuring Point: Top Of Upper Mount Plate

Shock Absorber Rod End Measuring Point: Center Of Eylet

Spring Color: Black

Spring Material: Steel

Spring Rate Type: Linear

Travel Length: 6.96

Upper Mount Type: Mounting Plate

Valving Type: Digressive

Add On Part: 252012 - -4 To -10 Hose Shield Kit, 64038 - 17-25 FSD Adj Track Bar Kit, 198001 - Billet Spanner Wrench Kit, 198000 - 2 Pin Coilover Spanner Wrench Kit, 64039 - 08-25 FSD Track Bar Bump Steer Bracket Kit, 61111 - 17-25 FSD Front 2.5 Inch Extended Ss Brake Line Kit, 64035 - 05-16 FSD Adj Track Bar W/Fk Rod End



Detailed Fitment Results
Year Make Model Engine Fuel 2005 Ford F-350 Super Duty 6.0L DIESEL 2005 Ford F-250 Super Duty 6.0L DIESEL 2005 Ford F-350 Super Duty 5.4L GAS 2005 Ford F-350 Super Duty 6.8L GAS 2005 Ford F-250 Super Duty 5.4L GAS 2005 Ford F-250 Super Duty 6.8L GAS 2006 Ford F-350 Super Duty 6.0L DIESEL 2006 Ford F-250 Super Duty 6.0L DIESEL 2006 Ford F-350 Super Duty 5.4L GAS 2006 Ford F-350 Super Duty 6.8L GAS 2006 Ford F-250 Super Duty 5.4L GAS 2006 Ford F-250 Super Duty 6.8L GAS 2007 Ford F-350 Super Duty 6.0L DIESEL 2007 Ford F-250 Super Duty 6.0L DIESEL 2007 Ford F-350 Super Duty 5.4L GAS 2007 Ford F-350 Super Duty 6.8L GAS 2007 Ford F-250 Super Duty 5.4L GAS 2007 Ford F-250 Super Duty 6.8L GAS 2008 Ford F-350 Super Duty 6.4L DIESEL 2008 Ford F-250 Super Duty 6.4L DIESEL 2008 Ford F-350 Super Duty 5.4L GAS 2008 Ford F-350 Super Duty 6.8L GAS 2008 Ford F-250 Super Duty 5.4L GAS 2008 Ford F-250 Super Duty 6.8L GAS 2009 Ford F-350 Super Duty 6.4L DIESEL 2009 Ford F-250 Super Duty 6.4L DIESEL 2009 Ford F-350 Super Duty 5.4L GAS 2009 Ford F-350 Super Duty 6.8L GAS 2009 Ford F-250 Super Duty 5.4L GAS 2009 Ford F-250 Super Duty 6.8L GAS 2010 Ford F-350 Super Duty 6.4L DIESEL 2010 Ford F-250 Super Duty 6.4L DIESEL 2010 Ford F-350 Super Duty 5.4L GAS 2010 Ford F-350 Super Duty 6.8L GAS 2010 Ford F-250 Super Duty 5.4L GAS 2010 Ford F-250 Super Duty 6.8L GAS 2011 Ford F-350 Super Duty 6.7L DIESEL 2011 Ford F-250 Super Duty 6.7L DIESEL 2011 Ford F-350 Super Duty 6.2L FLEX 2011 Ford F-250 Super Duty 6.2L FLEX 2012 Ford F-350 Super Duty 6.7L DIESEL 2012 Ford F-250 Super Duty 6.7L DIESEL 2012 Ford F-350 Super Duty 6.2L FLEX 2012 Ford F-250 Super Duty 6.2L FLEX 2013 Ford F-350 Super Duty 6.7L DIESEL 2013 Ford F-250 Super Duty 6.7L DIESEL 2013 Ford F-350 Super Duty 6.2L FLEX 2013 Ford F-250 Super Duty 6.2L FLEX 2014 Ford F-350 Super Duty 6.7L DIESEL 2014 Ford F-250 Super Duty 6.7L DIESEL 2014 Ford F-350 Super Duty 6.2L FLEX 2014 Ford F-250 Super Duty 6.2L FLEX 2015 Ford F-350 Super Duty 6.7L DIESEL 2015 Ford F-250 Super Duty 6.7L DIESEL 2015 Ford F-350 Super Duty 6.2L FLEX 2015 Ford F-250 Super Duty 6.2L FLEX 2016 Ford F-350 Super Duty 6.7L DIESEL 2016 Ford F-250 Super Duty 6.7L DIESEL 2016 Ford F-350 Super Duty 6.2L FLEX 2016 Ford F-250 Super Duty 6.2L FLEX
