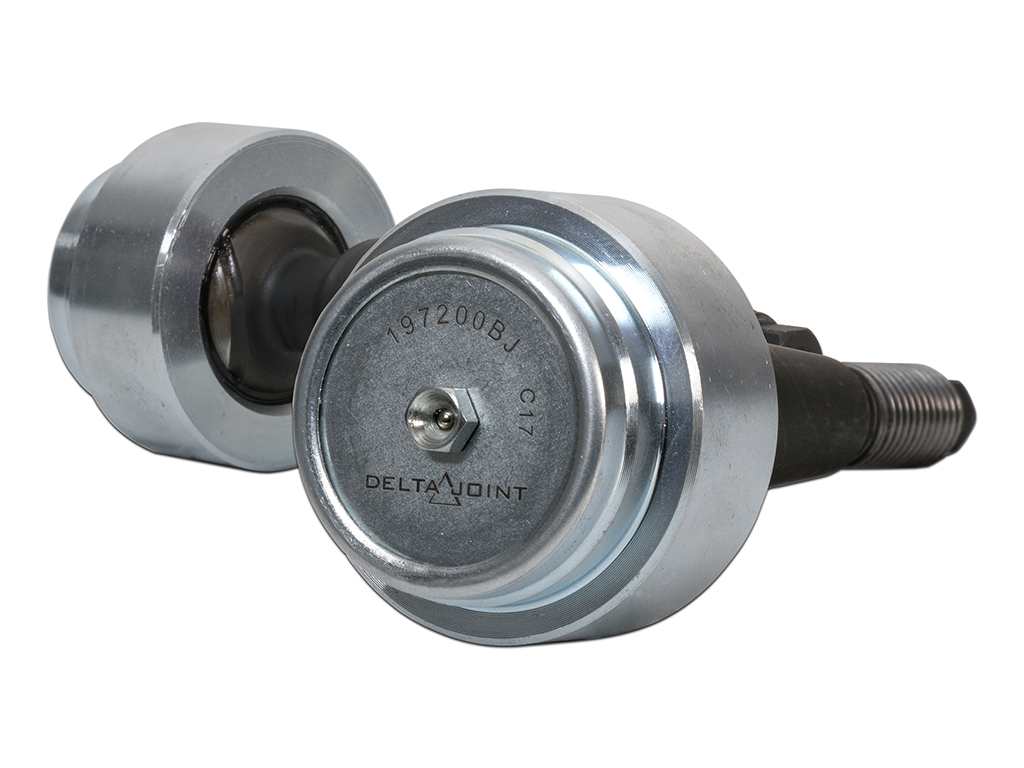

2005-2023 Toyota Tacoma/2007-2021 Toyota Tundra Non-Uca 1 Inch Retrofit Delta Joint Kit - ICON Vehicle Dynamics - 614560

ICON's Delta Joint is a heavy-duty high-angle ball joint that combines the durability of a ball joint with the performance characteristics of a traditional uniball. While the industry standard uniball does a great job of allowing the control arms of a vehicle to articulate with little bind, they do have an inherent weakness that leaves more to be desired when used in a daily driven application - exposure to the elements.

The Delta Joint's zinc plated housing provides the first layer of corrosion resistance, while a tough grease seal keeps potentially harmful elements out of the inner workings of the joint. Metal on metal construction and a greaseable design increase the longevity of the Delta Joint while also allowing for noise-free operation.

What makes the Delta Joint unique is that it brings the best of both worlds to Non-ICON upper control arms with features that make it more robust than a uniball, and capable of greater angularity than a typical ball joint.

Features and Benefits:


Retrofit kits allow for installation of Delta Joint into wide range of aftermarket upper control arms using a 1 inch uniball

Retrofit kits include a pair of Delta Joints, retaining rings, and a supply of anti-seize

Patented Delta Joint (U.S. Pat. 10,731,700) combines the durability of a ball joint with the performance characteristics of a traditional uniball

Sealed design and zinc plated housing protects Delta Joint from the elements, road salts, and other debris

Metal on metal internals and a greasable design for maximum longevity and noise-free operation

Capable of high angularity required for lifted applications

Carburized taper pin provides increased corrosion resistance, decreased internal friction, and less chance of thread galling on assembly

Pullout strength greater than comparable industry standard uniball

Application specific taper pins for precise fit across a wide range of vehicles


Details


Material: Steel

Adjustable: No

Ball Joint Assembly: Yes

Castle Nut Included: Yes

Cotter Pin Hole: No

Grade Type: Performance

Grease Fitting Included: Yes

Greaseable: Yes

Mounting Hardware Included: Yes

Mounting Type: Press In

Nuts Included: Yes

Quantity: Pair

Retaining Ring Included: Yes

Suspension Grade Type: Performance

Tapered Stud: Yes

Thread Direction: Clockwise (Right)

Washers Included: Yes



Detailed Fitment Results
Year Make Model Engine Fuel 1995 Toyota Tacoma 2.4L GAS 1995 Toyota Tacoma 2.7L GAS 1995 Toyota Tacoma 3.4L GAS 1996 Toyota Tacoma 2.4L GAS 1996 Toyota Tacoma 2.7L GAS 1996 Toyota Tacoma 3.4L GAS 1996 Toyota 4Runner 2.7L GAS 1996 Toyota 4Runner 3.4L GAS 1997 Toyota Tacoma 2.4L GAS 1997 Toyota Tacoma 2.7L GAS 1997 Toyota Tacoma 3.4L GAS 1997 Toyota 4Runner 2.7L GAS 1997 Toyota 4Runner 3.4L GAS 1998 Toyota Tacoma 2.4L GAS 1998 Toyota Tacoma 2.7L GAS 1998 Toyota Tacoma 3.4L GAS 1998 Toyota 4Runner 2.7L GAS 1998 Toyota 4Runner 3.4L GAS 1999 Toyota Tacoma 2.4L GAS 1999 Toyota Tacoma 2.7L GAS 1999 Toyota Tacoma 3.4L GAS 1999 Toyota 4Runner 2.7L GAS 1999 Toyota 4Runner 3.4L GAS 2000 Toyota Tacoma 2.4L GAS 2000 Toyota Tacoma 2.7L GAS 2000 Toyota Tacoma 3.4L GAS 2000 Toyota 4Runner 2.7L GAS 2000 Toyota 4Runner 3.4L GAS 2000 Toyota Tundra 3.4L GAS 2000 Toyota Tundra 4.0L GAS 2000 Toyota Tundra 4.7L GAS 2001 Toyota Tacoma 2.4L GAS 2001 Toyota Tacoma 2.7L GAS 2001 Toyota Tacoma 3.4L GAS 2001 Toyota 4Runner 3.4L GAS 2001 Toyota Tundra 3.4L GAS 2001 Toyota Tundra 4.0L GAS 2001 Toyota Tundra 4.7L GAS 2001 Toyota Sequoia 4.7L GAS 2002 Toyota Tacoma 2.4L GAS 2002 Toyota Tacoma 2.7L GAS 2002 Toyota Tacoma 3.4L GAS 2002 Toyota 4Runner 3.4L GAS 2002 Toyota Tundra 3.4L GAS 2002 Toyota Tundra 4.0L GAS 2002 Toyota Tundra 4.7L GAS 2002 Toyota Sequoia 4.7L GAS 2003 Toyota Tacoma 2.4L GAS 2003 Toyota Tacoma 2.7L GAS 2003 Toyota Tundra 3.4L GAS 2003 Toyota Tundra 4.0L GAS 2003 Toyota Tundra 4.7L GAS 2004 Toyota Tacoma 2.4L GAS 2004 Toyota Tacoma 2.7L GAS 2004 Toyota Tacoma 3.4L GAS 2004 Toyota Tundra 3.4L GAS 2004 Toyota Tundra 4.0L GAS 2004 Toyota Tundra 4.7L GAS 2004 Toyota Sequoia 4.7L GAS 2005 Toyota Tacoma 2.7L GAS 2005 Toyota Tacoma 4.0L GAS 2005 Toyota Tundra 3.4L GAS 2005 Toyota Tundra 4.0L GAS 2005 Toyota Tundra 4.7L GAS 2006 Toyota Tacoma 2.7L GAS 2006 Toyota Tacoma 4.0L GAS 2006 Toyota Tundra 3.4L GAS 2006 Toyota Tundra 4.0L GAS 2006 Toyota Tundra 4.7L GAS 2006 Toyota Sequoia 4.7L GAS 2007 Toyota Tacoma 2.7L GAS 2007 Toyota Tacoma 4.0L GAS 2007 Toyota Tundra 4.0L GAS 2007 Toyota Tundra 4.7L GAS 2007 Toyota Tundra 5.7L GAS 2007 Toyota Sequoia 4.7L GAS 2008 Toyota Tacoma 2.7L GAS 2008 Toyota Tacoma 4.0L GAS 2008 Toyota Tundra 4.0L GAS 2008 Toyota Tundra 4.7L GAS 2008 Toyota Tundra 5.7L GAS 2008 Toyota Sequoia 4.7L GAS 2008 Toyota Sequoia 5.7L GAS 2009 Toyota Tacoma 2.7L GAS 2009 Toyota Tacoma 4.0L GAS 2009 Toyota Tundra 4.0L GAS 2009 Toyota Tundra 4.7L GAS 2009 Toyota Tundra 5.7L FLEX 2009 Toyota Tundra 5.7L GAS 2009 Toyota Sequoia 4.7L GAS 2009 Toyota Sequoia 5.7L FLEX 2009 Toyota Sequoia 5.7L GAS 2010 Toyota Tacoma 2.7L GAS 2010 Toyota Tacoma 4.0L GAS 2010 Toyota Tundra 4.0L GAS 2010 Toyota Tundra 4.6L GAS 2010 Toyota Tundra 5.7L FLEX 2010 Toyota Tundra 5.7L GAS 2010 Toyota Sequoia 4.6L GAS 2010 Toyota Sequoia 5.7L FLEX 2010 Toyota Sequoia 5.7L GAS 2011 Toyota Tacoma 2.7L GAS 2011 Toyota Tacoma 4.0L GAS 2011 Toyota Tundra 4.0L GAS 2011 Toyota Tundra 4.6L GAS 2011 Toyota Tundra 5.7L FLEX 2011 Toyota Tundra 5.7L GAS 2011 Toyota Sequoia 4.6L GAS 2011 Toyota Sequoia 5.7L FLEX 2011 Toyota Sequoia 5.7L GAS 2012 Toyota Tacoma 2.7L GAS 2012 Toyota Tacoma 4.0L GAS 2012 Toyota Tundra 4.0L GAS 2012 Toyota Tundra 4.6L GAS 2012 Toyota Tundra 5.7L FLEX 2012 Toyota Tundra 5.7L GAS 2012 Toyota Sequoia 4.6L GAS 2012 Toyota Sequoia 5.7L FLEX 2012 Toyota Sequoia 5.7L GAS 2013 Toyota Tacoma 2.7L GAS 2013 Toyota Tacoma 4.0L GAS 2013 Toyota Tundra 4.0L GAS 2013 Toyota Tundra 4.6L GAS 2013 Toyota Tundra 5.7L FLEX 2013 Toyota Tundra 5.7L GAS 2013 Toyota Sequ…
