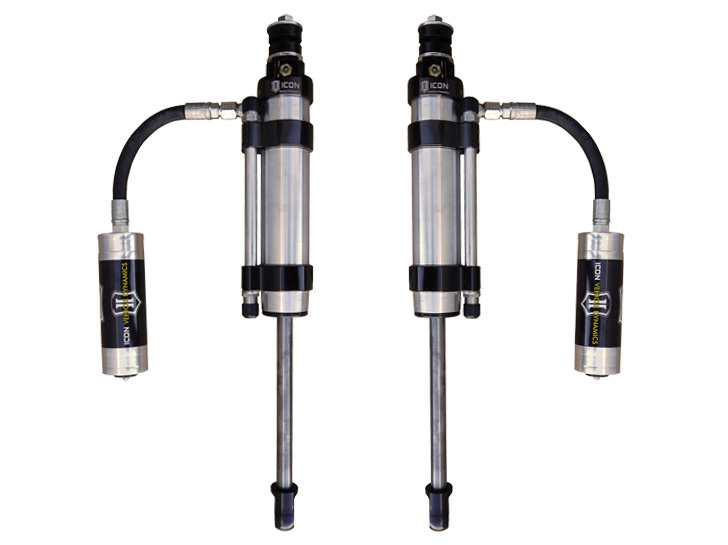

05-23 Toyota Tacoma (4WD) Suspension Shock Absorber Set - Rear - ICON Vehicle Dynamics - 59905P

SHOCK ABSORBER PAIR
59905P
TECH NOTE: Will not fit 2005-2015 2WD 5-Lug Toyota Tacoma models
TECH NOTE: Compatible with 0-1.
5" of rear lift over stock
05-23 TACOMA 0-1.
5" REAR 2.
5 OMEGA RR PAIR
ICON Omega Bypass shocks are designed to give your vehicle outstanding performance on and off-road.
They are configured specifically for each application and allow the user to customize the ride through adjustment of the bypass valves.
ICON Omega Series Bypass shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street.
These shocks are configured specifically for each application in length but allow the user to customize the ride characteristics to their liking through adjustment of the bypass valves.
Like all ICON shock absorbers, Omega Series shocks are 100% rebuildable and 100% revalveable.
ICON’s use of a 6061 billet aluminum manifold a few inches below the top cap of the shock creates an internal “Bump Zone” that when used, creates a significant increase in damping force.
This additional force helps prevent harsh bottom outs and controls the suspension when compressing at high velocity.
The ICON Bypass Valve is an externally adjustable valve that restricts oil flow through the bypass tube and provides 28 settings of compression and rebound adjustment with no tools required.
ICON's Bypass Valve technology allows adjustment of compression and rebound damping with high resolution across the entire adjustment range
Hand adjustable bypass valves with 28 detented settings at quarter turn increments for precise suspension tuning
Bypass tubes are replaceable in the event of damage
Internal “Bump Zone” increases damping force to provide more control as the shock approaches full compression
Remote reservoir design improves heat dissipation to reduce shock fade during prolonged use
Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
One piece digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
7/8” diameter induction hardened, chrome plated shock shaft
Polyurethane bushings and forged steel mounting stems for OE factory type fitment
PTFE lined spherical bearings and application specific mounting hardware
6061 aircraft grade aluminum CNC machined components
One-piece impact extruded aluminum cylinders offer excellent corrosion resistance and consistent finish
100% Rebuildable
100% Revalveable
ICON 2005-2023 Toyota Tacoma, 0-1.
5” Lift, Rear, 2.
5 Omega Bypass Remote Reservoir Shocks, Pair, 59905P
ICON 2005-2023 Toyota Tacoma, 0-1.
5” Lift, Rear, 2.
5 Omega Bypass Remote Reservoir Shocks, Pair
ICON 05-23 TACOMA 0-1.
5" REAR 2.
5 OMEGA RR PAIR.

Detailed Fitment Results
Year Make Model Submodel 2005 Toyota Tacoma Base 2005 Toyota Tacoma Pre Runner 2006 Toyota Tacoma Base 2006 Toyota Tacoma Pre Runner 2006 Toyota Tacoma TRD Sport Prerunner 2006 Toyota Tacoma SR5 Prerunner 2006 Toyota Tacoma Base Prerunner 2007 Toyota Tacoma Base 2007 Toyota Tacoma Pre Runner 2007 Toyota Tacoma TRD Sport Prerunner 2007 Toyota Tacoma SR5 Prerunner 2008 Toyota Tacoma Base 2008 Toyota Tacoma Pre Runner 2008 Toyota Tacoma TRD Sport Prerunner 2008 Toyota Tacoma SR5 Prerunner 2009 Toyota Tacoma Base 2009 Toyota Tacoma Pre Runner 2009 Toyota Tacoma TRD Sport Prerunner 2009 Toyota Tacoma SR5 Prerunner 2010 Toyota Tacoma Base 2010 Toyota Tacoma Pre Runner 2010 Toyota Tacoma TRD Sport 2011 Toyota Tacoma Base 2011 Toyota Tacoma Pre Runner 2011 Toyota Tacoma TRD Sport 2012 Toyota Tacoma Base 2012 Toyota Tacoma Pre Runner 2012 Toyota Tacoma TRD Sport 2013 Toyota Tacoma Base 2013 Toyota Tacoma Pre Runner 2013 Toyota Tacoma TRD Sport 2014 Toyota Tacoma Base 2014 Toyota Tacoma Pre Runner 2014 Toyota Tacoma TRD Sport 2015 Toyota Tacoma Base 2015 Toyota Tacoma Pre Runner 2015 Toyota Tacoma TRD Sport 2015 Toyota Tacoma TRD Pro 2016 Toyota Tacoma TRD Sport 2016 Toyota Tacoma Limited 2016 Toyota Tacoma SR 2016 Toyota Tacoma TRD Off-Road 2016 Toyota Tacoma Edicion Especial 2016 Toyota Tacoma SR5 2017 Toyota Tacoma TRD Sport 2017 Toyota Tacoma Limited 2017 Toyota Tacoma SR 2017 Toyota Tacoma TRD Off-Road 2017 Toyota Tacoma Edicion Especial 2017 Toyota Tacoma SR5 2017 Toyota Tacoma TRD Pro 2017 Toyota Tacoma Sport 2018 Toyota Tacoma TRD Sport 2018 Toyota Tacoma Limited 2018 Toyota Tacoma SR 2018 Toyota Tacoma TRD Off-Road 2018 Toyota Tacoma Edicion Especial 2018 Toyota Tacoma SR5 2018 Toyota Tacoma TRD Pro 2018 Toyota Tacoma Sport 2019 Toyota Tacoma TRD Sport 2019 Toyota Tacoma Limited 2019 Toyota Tacoma SR 2019 Toyota Tacoma TRD Off-Road 2019 Toyota Tacoma Edicion Especial 2019 Toyota Tacoma SR5 2019 Toyota Tacoma TRD Pro 2019 Toyota Tacoma Sport 2020 Toyota Tacoma TRD Sport 2020 Toyota Tacoma Limited 2020 Toyota Tacoma SR 2020 Toyota Tacoma TRD Off-Road 2020 Toyota Tacoma Edicion Especial 2020 Toyota Tacoma SR5 2020 Toyota Tacoma TRD Pro 2020 Toyota Tacoma Sport 2021 Toyota Tacoma TRD Sport 2021 Toyota Tacoma Limited 2021 Toyota Tacoma SR 2021 Toyota Tacoma TRD Off-Road 2021 Toyota Tacoma Edicion Especial 2021 Toyota Tacoma SR5 2021 Toyota Tacoma TRD Pro 2021 Toyota Tacoma Sport 2021 Toyota Tacoma Nightshade 2021 Toyota Tacoma Trail 2022 Toyota Tacoma TRD Sport 2022 Toyota Tacoma Limited 2022 Toyota Tacoma SR 2022 Toyota Tacoma TRD Off-Road 2022 Toyota Tacoma Edicion Especial 2022 Toyota Tacoma SR5 2022 Toyota Tacoma TRD Pro 2022 Toyota Tacoma Sport 2022 Toyota Tacoma Nightshade 2022 Toyota Tacoma Trail 2022 Toyota Tacoma Base 2023 Toyota Tacoma TRD Sport 2023 Toyota Tacoma Limited 2023 Toyota Tacoma SR 2023 Toyota Tacoma TRD Off-Road 2023 Toyota Tacoma Edicion Especial 2023 Toyota Tacoma SR5 2023 Toyota Tacoma TRD Pro 2023 Toyota Tacoma Sport 2023 Toyota Tacoma Nightshade 2023 Toyota Tacoma Base 2023 Toyota Tacoma Trail Special Edition
