2025 Toyota 4Runner 4WD 1.25-3 Inch Lift Front 2.5 Series Coilover Kit Remote Reservoir W/ CDEV - ICON Vehicle Dynamics - 58795E

ICON Vehicle Dynamics V.S. 2.5 Series remote reservoir CDEV front coilover shocks are an incredible upgrade for the front end of the 2025 Toyota 4Runner. These adjustable coilovers allow up 1.25-3 Inch of lift height adjustability, allowing the use of larger, more aggressive wheel and tire combinations.

ICON's Vehicle-specific shock length and valving, their large 2.5 Inch shock body with increased piston surface area over stock components, and their pairing with an ICON front differential drop on 4WD models, yield the maximum travel possible along with superior ride quality and suspension performance both on- and off-road. Remote reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade.

The ICON CDE Valve upgrade is included for those desiring an easy way to tune the ride electronically from inside the vehicle. Compression Damping Electronic Valve (CDEV) is an electronically controlled valve that meters the flow of oil to regulate the amount of damping force that is created by the shock when compressed.

This infinitely variable valve can react in less than 40ms and has the ability to make extremely precise adjustments for varying terrain. CDEV's hydraulic circuits are also custom tailored per application to create the highest resolution and dynamic range allowable for each specific vehicle.

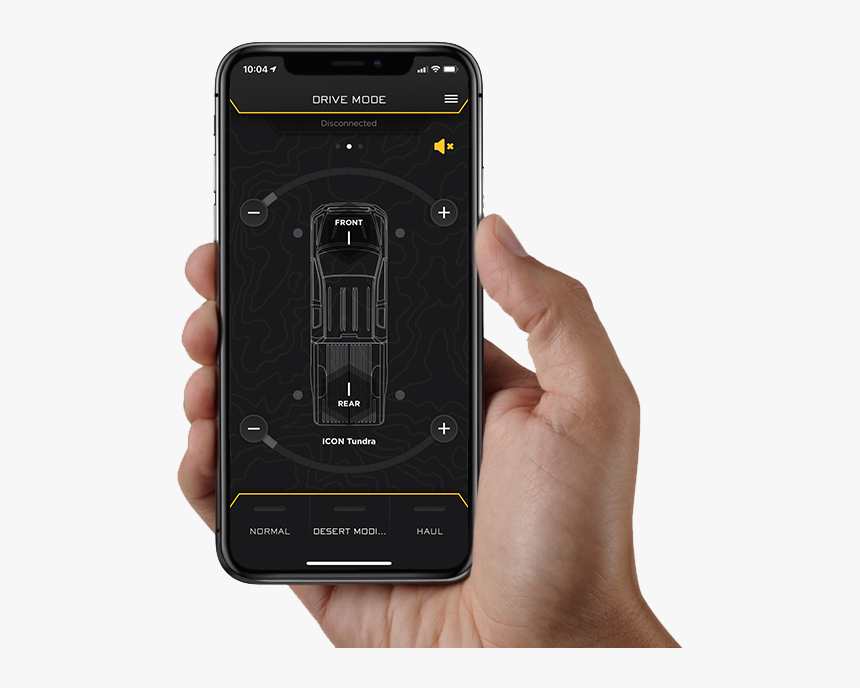

Powered by ICON Intelligent Control and proprietary ICON mobile app, the system uses information from the onboard G-force sensor and Gyroscope to perform calculations based on algorithms and user-defined settings to predict terrain and adjust shock settings via the CDEV accordingly. When paired with 2.5 Aluminum Series CDEV rear shock absorbers vehicle control will be balanced front to rear, resulting in the best overall driving experience for your 6th Gen Toyota 4Runner.

Features and Benefits:


Vehicle specific tuned for superior shock damping, vehicle control, and improved ride quality over stock

Vehicle specific shock length and pairing with front differential drop yields maximum wheel travel

Height-adjustable coilovers offer 1.25-3 Inch of lift height adjustment over stock

2.5 Inch diameter shock bodies with remote reservoirs offer increased heat capacity and improved cooling for consistent performance

ICON's CDE Valve technology allows for in vehicle adjustment of compression damping settings and active adjustment via the ICON Intelligent Control (IIC)

ICON engineered coil springs

6061 Aircraft grade aluminum CNC machined components

Corrosion resistant CAD plated shock bodies with 7/8 Inch diameter shafts

FK rod end bearings for extended longevity and minimal deflection

Fully rebuildable and re-tunable


Details


Material: Steel, Aluminum

Active Or Passive Suspension: Active

Adjustable Compression: Yes

Adjustable Damping: Yes

Adjustable Rebound: No

Adjustable Ride Height: Yes

Assembled: Yes

Body Diameter: 2.5 Inch

Coil Over Springs Included: Yes

Compressed Length: 19.2

Cylinder Color: Silver

Cylinder Finish: Cadmium Plated

Cylinder Material: Steel

Damping Adjustment Type: Electronic

Damping Type: Oil

Dust Shield: No

Dust Shield Included: No

Extended Length: 24.85

Front Spring Rate: 550 Inch

Gas Charged: Yes

Grade Type: Performance

Includes Bump Stop: Yes

Internal Construction Type: Single Tube

Lower Mount Type: Eyelet

Maximum Lift: 3.0 Inch

Maximum Ride Height Raising Distance: 3.0

Minimum Lift: 1.25 Inch

Oem Wheels & Tires Fitment: Yes

Remote Reservoir: Yes

Reservoir Style: Remote

Self Leveling: No

Shaft Diameter: 0.875

Shock Absorber Body End Measuring Point: Top Of Upper Mount Plate

Shock Absorber Rod End Measuring Point: Center Of Eyelet

Spring Color: Black

Spring Material: Steel

Spring Rate Type: Linear

Travel Length: 5.65

Upper Mount Type: Mounting Plate

Valving Type: Digressive

Add On Part: 57872EP - 25 4Runner 0-3 Inch Rear 2.5 VS RR CDEV Pair, 198000 - 2 Pin Coilover Spanner Wrench Kit, 55160 - 24-25 Tacoma 4WD/24-25 LC250/25 T4R 4WD Front Diff Drop Kit, 58552DJ - 24-25 Tacoma/24-25 LC250/24-25 GX550/25 T4R Billet UCA Dj Pro Kit, 198001 - Billet Spanner Wrench Kit, 58452DJ - 24-25 Tacoma/24-25 LC250/24-25 GX550/25 T4R Tubular UCA Dj Pro Kit, 252012 - -4 To -10 Hose Shield Kit, 53509 - 24-25 Tacoma/24-25 LC250/25 4Runner Iic Install Kit, 58552GDJ - 24-25 Tacoma/24-25 LC250/24-25 GX550/25 T4R Billet UCA Dj Pro Kit Gold Ano, 191009 - Icon Long 2.5 Coil Wrap W/Logo (14.5-15.5)
