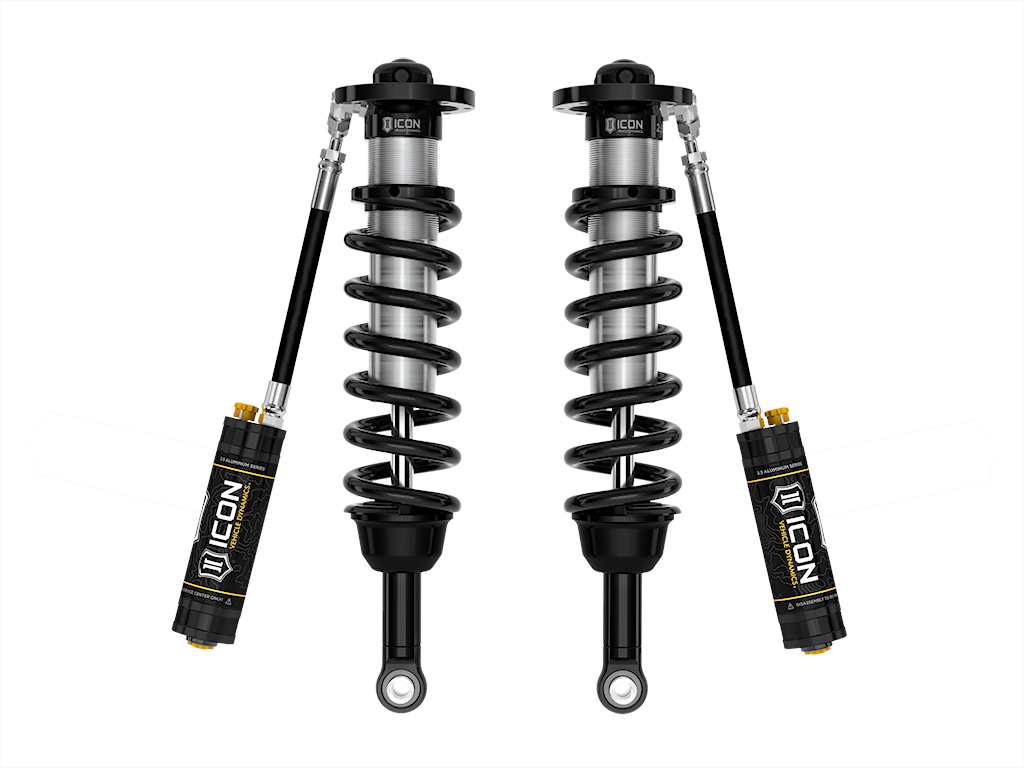

2025 Toyota 4Runner 4WD 1.25-3 Inch Lift Front 2.5 Series Coilover Kit Remote Reservoir W/ CDCV - ICON Vehicle Dynamics - 58795C

ICON Vehicle Dynamics V.S. 2.5 Series remote reservoir CDCV front coilover shocks are an incredible upgrade for the front end of the 2025 Toyota 4Runner. These adjustable coilovers allow up 1.25-3 Inch of lift height adjustability, allowing the use of larger, more aggressive wheel and tire combinations.

ICON's Vehicle-specific shock length and valving, their large 2.5 Inch shock body with increased piston surface area over stock components, and their pairing with an ICON front differential drop on 4WD models, yield the maximum travel possible along with superior ride quality and suspension performance both on- and off-road. Remote reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade.

ICON's exclusive Compression Damping Control Valves are included for precisely dialing in your suspension performance. CDCV controls fluid flow under compression, allowing you to achieve the perfect tune whether driving on the street, slow-crawling through the rocks or mobbing across the desert at full throttle.

When paired with 2.5 Aluminum Series CDCV rear shock absorbers vehicle control will be balanced front to rear, resulting in the best overall driving experience for your 6th Gen Toyota 4Runner.

Features and Benefits:


Vehicle specific tuned for superior shock damping, vehicle control, and improved ride quality over stock

Vehicle specific shock length and pairing with front differential drop yields maximum wheel travel

Height-adjustable coilovers offer 1.25-3 Inch of lift height adjustment over stock

2.5 Inch diameter shock bodies with remote reservoirs offer increased heat capacity and improved cooling for consistent performance

ICON CDCV equipped for 10 settings of external compression damping adjustment

ICON engineered coil springs

6061 Aircraft grade aluminum CNC machined components

Corrosion resistant CAD plated shock bodies with 7/8 Inch diameter shafts

FK rod end bearings for extended longevity and minimal deflection

Fully rebuildable and re-tunable


Details


Material: Steel, Aluminum

Active Or Passive Suspension: Passive

Adjustable Compression: Yes

Adjustable Damping: Yes

Adjustable Rebound: No

Adjustable Ride Height: Yes

Assembled: Yes

Body Diameter: 2.5 Inch

Boot Included: No

Coil Over Springs Included: Yes

Compressed Length: 19.2

Cylinder Color: Silver

Cylinder Finish: Cadmium Plated

Cylinder Material: Steel

Damping Adjustment Type: Manual

Damping Type: Oil

Dust Shield: No

Dust Shield Included: No

Extended Length: 24.85

Front Spring Rate: 550 Inch

Gas Charged: Yes

Grade Type: Performance

Includes Bump Stop: Yes

Internal Construction Type: Single Tube

Lower Mount Type: Eyelet

Maximum Lift: 3.0 Inch

Maximum Ride Height Raising Distance: 3.0

Minimum Lift: 1.25 Inch

Oem Wheels & Tires Fitment: Yes

Remote Reservoir: Yes

Reservoir Style: Remote

Self Leveling: No

Shaft Diameter: 0.875

Shock Absorber Body End Measuring Point: Top Of Upper Mount Plate

Shock Absorber Rod End Measuring Point: Center Of Eyelet

Spring Color: Black

Spring Material: Steel

Spring Rate Type: Linear

Travel Length: 5.65

Upper Mount Type: Mounting Plate

Valving Type: Digressive

Add On Part: 198000 - 2 Pin Coilover Spanner Wrench Kit, 55160 - 24-25 Tacoma 4Wd/24-25 Lc250/25 T4R 4Wd Front Diff Drop Kit, 58452Dj - 24-25 Tacoma/24-25 Lc250/24-25 Gx550/25 T4R Tubular UCA Dj Pro Kit, 58552Dj - 24-25 Tacoma/24-25 Lc250/24-25 Gx550/25 T4R Billet UCA Dj Pro Kit, 252012 - -4 To -10 Hose Shield Kit, 191009 - Icon Long 2.5 Coil Wrap W/Logo (14.5-15.5), 198001 - Billet Spanner Wrench Kit, 58552Gdj - 24-25 Tacoma/24-25 Lc250/24-25 Gx550/25 T4R Billet UCA Dj Pro Kit Gold Ano



Detailed Fitment Results
Year Make Model Engine Fuel 2025 Toyota 4Runner 2.4L GAS
