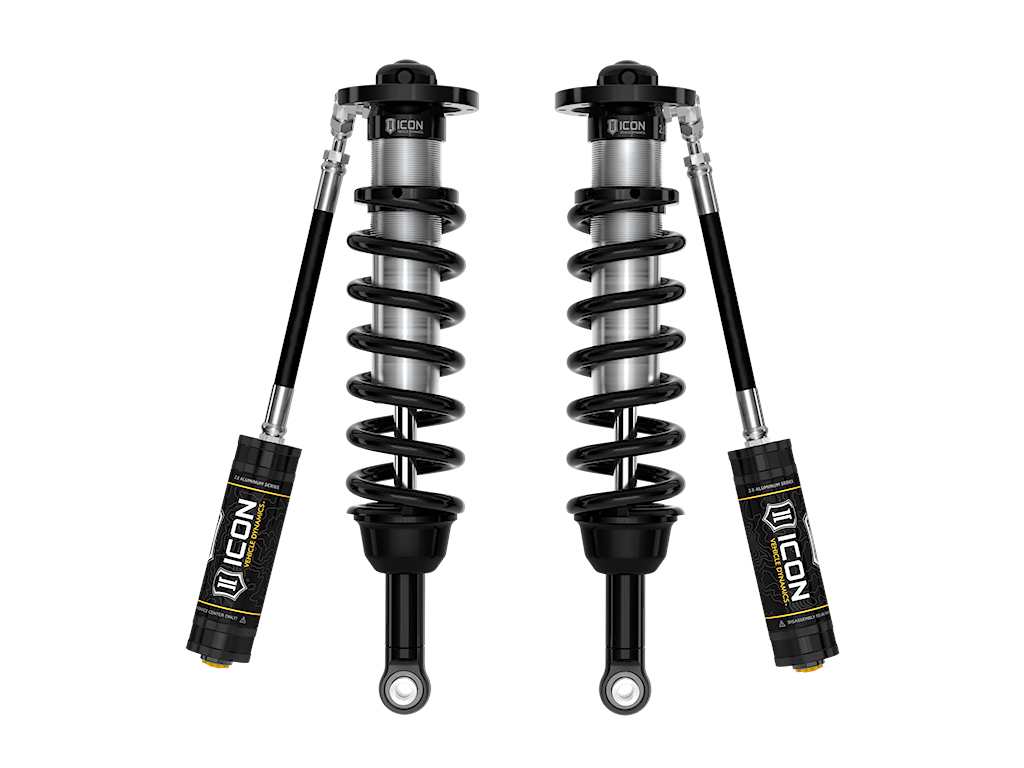

2025 Toyota 4Runner 4WD 1.25-3 Inch Lift Front 2.5 Series Coilover Kit Remote Reservoir | 07-09 FJ Cruiser 03-09 4Runner 03-09 GX 2.5 VS IR Coilover Kit - ICON Vehicle Dynamics - 58795

ICON Vehicle Dynamics V.S. 2.5 Series remote reservoir front coilover shocks are an incredible upgrade for the front end of the 2025 Toyota 4Runner. These adjustable coilovers allow up 1.25-3 Inch of lift height adjustability, allowing the use of larger, more aggressive wheel and tire combinations.

ICON's Vehicle-specific shock length and valving, their large 2.5 Inch shock body with increased piston surface area over stock components, and their pairing with an ICON front differential drop on 4WD models, yield the maximum travel possible along with superior ride quality and suspension performance both on- and off-road. Remote reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade.

When paired with ICON 2.0 or 2.5 Aluminum Series rear shock absorbers vehicle control will be balanced front to rear, resulting in the best overall driving experience for your 6th Gen Toyota 4Runner.

Features and Benefits:


Vehicle specific tuned for superior shock damping, vehicle control, and improved ride quality over stock

Vehicle specific shock length and pairing with front differential drop yields maximum wheel travel

Height-adjustable coilovers offer 1.25-3 Inch of lift height adjustment over stock

2.5 Inch diameter shock bodies with remote reservoirs offer increased heat capacity and improved cooling for consistent performance

ICON engineered coil springs

6061 Aircraft grade aluminum CNC machined components

Corrosion resistant CAD plated shock bodies with 7/8 Inch diameter shafts

FK rod end bearings for extended longevity and minimal deflection

Fully rebuildable and re-tunable


Details


Material: Steel, Aluminum

Active Or Passive Suspension: Passive

Adjustable Compression: No

Adjustable Damping: No

Adjustable Rebound: No

Adjustable Ride Height: Yes

Assembled: Yes

Body Diameter: 2.5 Inch

Boot Included: No

Coil Over Springs Included: Yes

Compressed Length: 19.2

Cylinder Color: Silver

Cylinder Finish: Cadmium Plated

Cylinder Material: Steel

Damping Type: Oil

Dust Shield Included: No

Extended Length: 24.85

Front Spring Rate: 550 Inch

Gas Charged: Yes

Grade Type: Performance

Includes Bump Stop: Yes

Internal Construction Type: Single Tube

Lower Mount Type: Eyelet

Maximum Lift: 3.0 Inch

Maximum Ride Height Raising Distance: 3.0

Minimum Lift: 1.25 Inch

Oem Wheels & Tires Fitment: Yes

Remote Reservoir: Yes

Reservoir Style: Remote

Self Leveling: No

Shaft Diameter: 0.875

Shock Absorber Body End Measuring Point: Top Of Upper Mount Plate

Shock Absorber Rod End Measuring Point: Center Of Eyelet

Spring Color: Black

Spring Material: Steel

Spring Rate Type: Linear

Travel Length: 5.65

Upper Mount Type: Mounting Plate

Valving Type: Digressive

Add On Part: 252012 - -4 To -10 Hose Shield Kit, 58552Gdj - 24-25 Tacoma/24-25 Lc250/24-25 Gx550/25 T4R Billet UCA Dj Pro Kit Gold Ano, 198000 - 2 Pin Coilover Spanner Wrench Kit, 58552Dj - 24-25 Tacoma/24-25 Lc250/24-25 Gx550/25 T4R Billet UCA Dj Pro Kit, 58452Dj - 24-25 Tacoma/24-25 Lc250/24-25 Gx550/25 T4R Tubular UCA Dj Pro Kit, 191009 - Icon Long 2.5 Coil Wrap W/Logo (14.5-15.5), 198001 - Billet Spanner Wrench Kit, 55160 - 24-25 Tacoma 4Wd/24-25 Lc250/25 T4R 4Wd Front Diff Drop Kit



Detailed Fitment Results
Year Make Model Engine Fuel 2025 Toyota 4Runner 2.4L GAS
