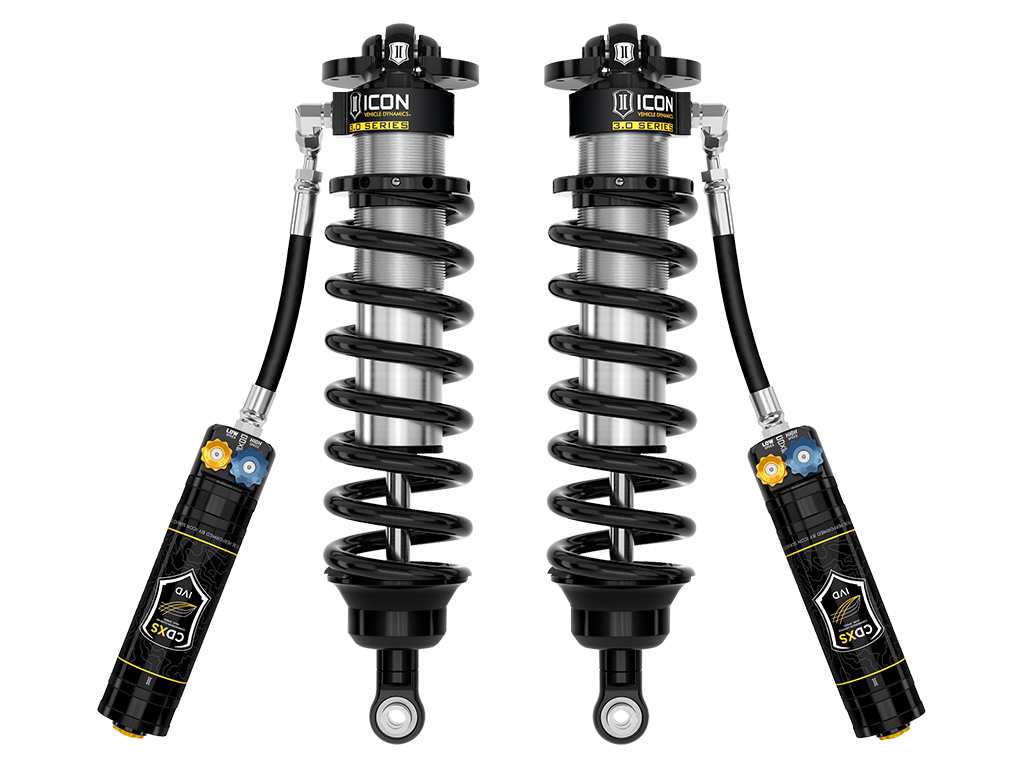

2022-2025 Toyota Tundra 1.25-3.25 Inch Lift 2023-2025 Sequoia 3-4.25 Inch Lift V.S. 3.0 Series Front Coilover Kit Remote Reservoir W CDXS Pair - ICON Vehicle Dynamics - 58775X

ICON's 3.0 Series Coilovers with CDXS for 2022-2025 Toyota Tundra and 2023-2025 Toyota Sequoia are designed to take the off-road capability of the trucks to new levels by increasing wheel travel by up to 40 Percent and significantly improving the damping ability of the front shocks.

Features and Benefits:


3.0 Series shocks boast 50 Percent more piston surface area in the ride zone of the shock's travel, and 100 Percent in the InchBump Zone Inch, compared to 2.5 Series shocks. This translates into increased stability and vehicle control at the extremes of off-road use, with benefits also making themselves apparent in on-road driving conditions. The multi-stage hydraulic Bump Zone featured in these 3.0 Series shocks exponentially increases bottom-out resistance as the shock travels through the last 40 Percent of travel, keeping vehicle dynamics in check during those hard hits or unexpected obstacles.

ICON's exclusive Compression Damping Dual Speed (CDXS) valves are included for precisely dialing in your suspension performance. CDXS controls fluid flow under compression, with independent adjustability of high speed and low speed compression force. 10 discreet detented settings for both low and high-speed adjustment knobs allow separate adjustments for handling response and overall aggressiveness. When paired with ICON 3.0 Series rear shocks with CDXS, vehicle control can be precisely dialed in front to rear, resulting in the best overall driving experience.

These 3.0 Series coilovers are designed as an OEM shock replacement, making installation a simple and straightforward bolt-on affair. Built-in ride height adjustability yields 1.25 to 3.25 Inch of front lift height on Tundra or 3-4.25 Inch of lift on Sequoia allowing for the fitment of larger, more aggressive wheel and tire combinations. First class ICON manufacturing processes and quality components are used to ensure these shocks function to their maximum potential without issue.

40 Percent increase in front wheel travel over stock

Adjustable up to 1.25-3.25 Inch of front lift height over stock on Tundra or 3-4.25 Inch of front lift on Sequoia

Vehicle specific design and tuning for superior shock damping and control

3.0 Inch Body diameter for increased oil volume and larger piston area

ICON's multi-stage, tunable hydraulic InchBump Zone Inch exponentially increases bottom-out resistance in the last 40 Percent of compression travel

ICON CDXS equipped for independent adjustability of high speed and low speed compression force for handling response and aggressiveness

CNC machined 6061 aluminum components with a black anodized finish

PTFE lined spherical bearings for extended longevity and minimal deflection

7/8 Inch diameter induction hardened, chrome plated shock shafts

Fully Rebuildable and Re-tunable


Details


Material: Steel, Aluminum

Active Or Passive Suspension: Passive

Adjustable Compression: Yes

Adjustable Damping: Yes

Adjustable Rebound: No

Adjustable Ride Height: Yes

Assembled: Yes

Body Diameter: 3 Inch

Coil Over Springs Included: Yes

Compressed Length: 16.38

Cylinder Color: Gray

Cylinder Finish: Ceramic Coated

Cylinder Material: Steel

Damping Adjustment Type: Dual Speed/Manual

Damping Type: Oil

Dust Shield: No

Dust Shield Included: No

Extended Length: 22.04

Front Spring Rate: 600 Inch

Gas Charged: Yes

Grade Type: Performance

Includes Bump Stop: No

Internal Construction Type: Single Tube

Lower Mount Type: Eyelet

Maximum Lift: 3.25 Inch

Maximum Ride Height Raising Distance: 3.25

Minimum Lift: 1.25 Inch

Remote Reservoir: Yes

Reservoir Style: Remote

Self Leveling: No

Service Parts: 254100G - 1 Gallon Icon Performance Shock Oil

Shaft Diameter: 0.875

Shock Absorber Body End Measuring Point: Top Of Upper Mount Plate

Shock Absorber Rod End Measuring Point: Center Of Eyelet

Spring Color: Black

Spring Material: Steel

Spring Rate Type: Linear

Travel Length: 5.67

Upper Mount Type: Mounting Plate

Valving Type: Digressive, Linear

Add On Part: 58461Dj - 22-25 Tundra/23-25 Sequoia Tubular UCA Dj Pro Kit, 198001 - Billet Spanner Wrench Kit, 252012 - -4 To -10 Hose Shield Kit, 58561Dj - 22-25 Tundra/23-25 Sequoia Billet UCA Dj Pro Kit, 198000 - 2 Pin Coilover Spanner Wrench Kit, 191010 - Icon Raptor 3.0 Coil Wrap W/Logo Pair, 55164 - 22-25 Tundra/23-24 Sequoia Aluminum Skid Plate Spacer Kit, 55154 - 22-25 Tundra/23-25 Sequoia Sway Bar Drop Kit



Detailed Fitment Results
Year Make Model Engine Fuel 2022 Toyota Tundra 3.4L GAS 2022 Toyota Tundra 3.5L ELECTRIC / GAS 2022 Toyota Tundra 3.5L GAS 2023 Toyota Tundra 3.4L GAS 2023 Toyota Tundra 3.5L GAS 2024 Toyota Tundra 3.4L GAS 2025 Toyota Tundra 3.4L GAS
