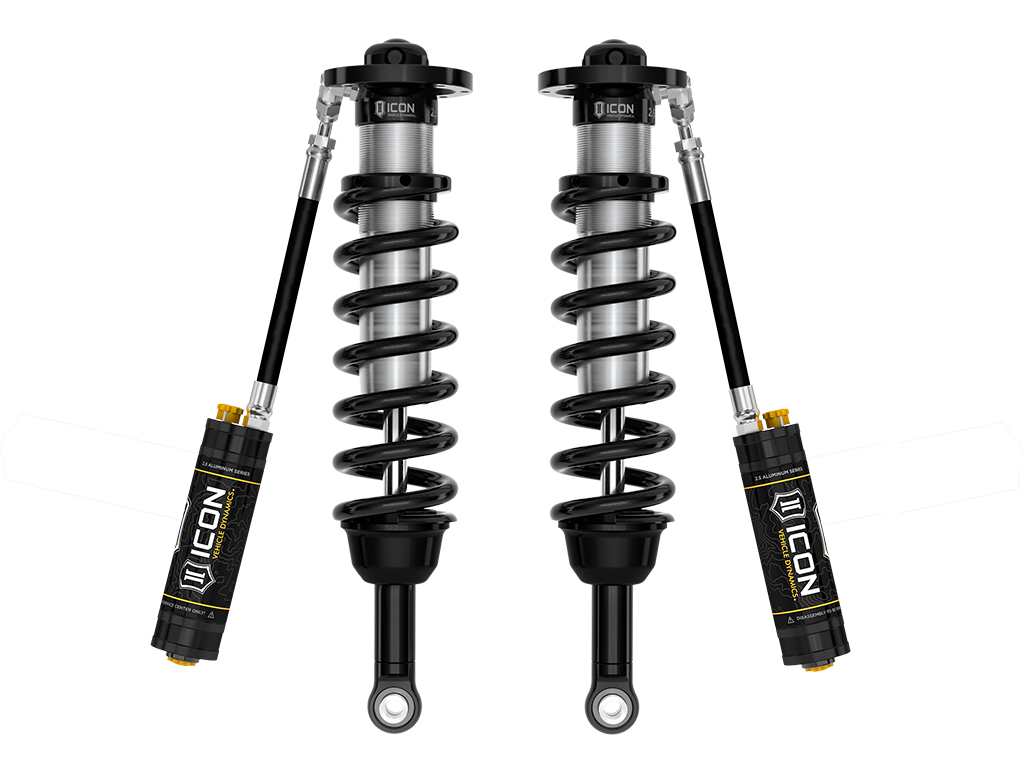

22-24 Toyota Tundra (Coil) Coilover Spring and Shock Assembly - Front - ICON Vehicle Dynamics - 58771C

COILOVER KIT
58771C
OEM Wheels and Tires Fitment: No
Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.
625” Backspace / 16mm Offset
Recommended Aftermarket Tires: 37" x 12.
50" (Larger tires may fit but fender trimming and modifications will be required.
)
APPLICATION NOTE #55: Shocks are fully serviceable.
Lift heights Indicated are for a stock equipped vehicle.
APPLICATION NOTE #85: Advertised lift height ranges are for a stock equipped vehicle.
Increasing weight of vehicle due to accessories will alter lift range.
APPLICATION NOTE #142: Not compatible with vehicles equipped with Load-Leveling Rear Height Control Air Suspension.
APPLICATION NOTE #152: ICON Delta Joint Pro upper control arms required
APPLICATION NOTE #153: Not compatible with Adaptive Variable Suspension (AVS) equipped vehicles.
APPLICATION NOTE #155: Requires recalibration of Advanced Driver Assistance Systems (ADAS) after install
TECH NOTE: Requires additional components to complete system.
DO NOT attempt install without part numbers 51010, 51011, 51012, 51014, and 51017.
TECH NOTE: Requires minimum of 20" diameter wheels.
TECH NOTE: Most Tundra sub-models equipped with i-Force gasoline engine will have front lift height range of 5-6" over stock.
TECH NOTE: Most Tundra sub-models equipped with i-Force MAX hybrid engine will have front lift height range of 4.
5-5.
5" over stock.
TECH NOTE: Tundra SR5 with TRD Sport package will have front lift height range of 6-7" over stock.
TECH NOTE: Tundra TRD Pro will have front lift height range of 3.
25-4.
25" over stock.
22-24 TUNDRA 2.
5 VS RR CDCV 6" COILOVER KIT
ICON’s Vehicle-specific shock length and valving along with the larger 2.
5” shock body and increased piston area over stock yield the maximum travel possible along with superior ride quality and suspension performance both on- and off-road.
ICON Vehicle Dynamics V.
S.
2.
5 Series remote reservoir front coilover shocks are an incredible upgrade for the front end of the 2022-2024 Toyota Tundra.
These adjustable coilovers are specifically designed for use the ICON 6" Lift Performance Suspension System and allow up to 5-6” of front lift height adjustability, allowing the use of larger, more aggressive wheel and tire combinations.
ICON’s Vehicle-specific shock length and valving along with the larger 2.
5” shock body and increased piston area over stock components yield the maximum travel possible along with superior ride quality and suspension performance both on- and off-road.
Reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade.
ICON's exclusive Compression Damping Control Valves are included for precisely dialing in your suspension performance.
CDCV controls fluid flow under compression, allowing you to achieve the perfect tune whether driving on the street, slow-crawling through the rocks or mobbing across the desert at full throttle.
When paired with ICON 2.
0 or 2.
5 Aluminum Series rear shock absorbers vehicle control will be balanced front to rear, resulting in the best overall driving experience for your Toyota Tundra.
Increased wheel travel and improved ride quality over stock
Vehicle specific tuned for superior shock damping and control
Specific length designed for use with ICON 6" Lift Performance Suspension System
Adjustable ride height offers 5-6" of front lift over stock
Remote reservoirs maintain cooler operating temperatures during extended off-road use
ICON CDCV equipped for 10 settings of external compression damping adjustment
ICON engineered coil springs
6061 Aircraft grade aluminum CNC machined components
Corrosion resistant CAD plated shock bodies with 7/8" diameter shafts
FK rod end bearings for extended longevity and minimal deflection
Fully rebuildable and re-tunable
ICON 2022-2024 Toyota Tundra, 5-6" Lift, Front, V.
S.
2.
5 Series Coilover Kit, Remote Reservoir w/ CDCV, Pair, 58771C
ICON 2022-2024 Toyota Tundra, 5-6" Lift, Front, V.
S.
2.
5 Series Coilover Kit, Remote Reservoir w/ CDCV, Pair
ICON 22-24 TUNDRA 2.
5 VS RR CDCV 6" COILOVER KIT.

Detailed Fitment Results
Year Make Model Submodel Qualifiers Fitment Notes 2022 Toyota Tundra SR 2022 Toyota Tundra SR5 2022 Toyota Tundra Limited ; ; 2022 Toyota Tundra Platinum ; ; 2022 Toyota Tundra 1794 Edition ; ; 2022 Toyota Tundra TRD Pro 2022 Toyota Tundra SR TRD Off-Road 2022 Toyota Tundra SR5 TRD Off-Road 2022 Toyota Tundra Limited TRD Off-Road 2022 Toyota Tundra Platinum 1794 Edition 2023 Toyota Tundra SR 2023 Toyota Tundra SR5 2023 Toyota Tundra Limited ; ; 2023 Toyota Tundra Platinum ; ; 2023 Toyota Tundra 1794 Edition ; ; 2023 Toyota Tundra TRD Pro 2024 Toyota Tundra SR 2024 Toyota Tundra SR5 2024 Toyota Tundra Limited ; ; 2024 Toyota Tundra Platinum ; ; 2024 Toyota Tundra 1794 Edition ; ; 2024 Toyota Tundra TRD Pro
