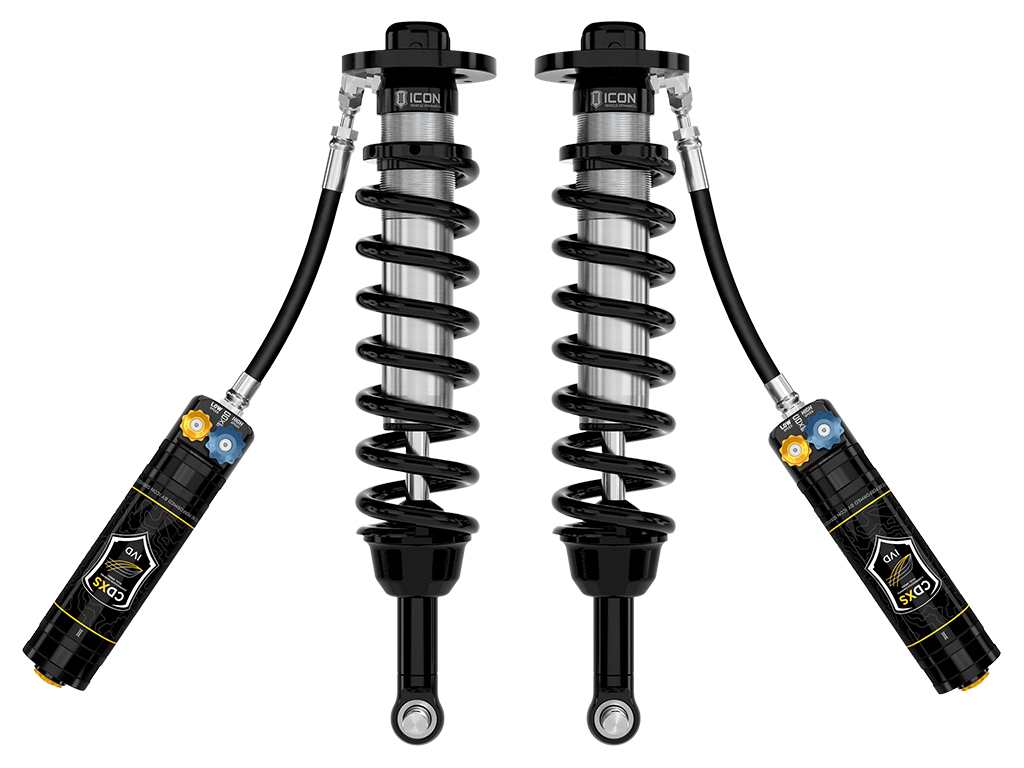

2022-2025 Toyota Tundra 1.25-3.5 Inch Lift 2023-2025 Sequoia 3-4.5 Inch Lift Front V.S. 2.5 Series Coilover Kit Remote Reservoir W CDXS Pair - ICON Vehicle Dynamics - 58770X

ICON Vehicle Dynamics V.S. 2.5 Series remote reservoir front coilover shocks are an incredible upgrade for the front end of the 2022-2025 Toyota Tundra or 2023-2025 Toyota Sequoia. These adjustable coilovers allow up to 1.25-3.5 Inch of lift height adjustability on Tundra or 3.5-4.5 Inch of front lift on Sequoia, allowing the use of larger, more aggressive wheel and tire combinations.

ICON's Vehicle-specific shock length and valving along with the larger 2.5 Inch shock body and increased piston area over stock components yield the maximum travel possible along with superior ride quality and suspension performance both on- and off-road. remote reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade. ICON's exclusive Compression Damping Dual Speed (CDXS) valves are included for precisely dialing in your suspension performance.

CDXS controls fluid flow under compression, with independent adjustability of high speed and low speed compression force. 10 discreet detented settings for both low and high-speed adjustment knobs allow separate adjustments for handling response and overall aggressiveness. When paired with ICON 2.0 or 2.5 Aluminum Series rear coilovers vehicle control will be balanced front to rear, resulting in the best overall driving experience for your Toyota Tundra or Sequoia.

Features and Benefits:


Increased wheel travel and improved ride quality over stock

Vehicle specific tuned for superior shock damping and control

Adjustable up to 1.25-3.5 Inch of front lift height over stock on Tundra or 3-4.5 Inch of front lift on Sequoia

Remote reservoirs maintain cooler operating temperatures during extended off-road use

ICON CDXS equipped for independent adjustability of high speed and low speed compression force for handling response and aggressiveness

ICON engineered coil springs

6061 Aircraft grade aluminum CNC machined components

Corrosion resistant CAD plated shock bodies with 7/8 Inch diameter shafts

FK rod end bearings for extended longevity and minimal deflection

Fully rebuildable and re-tunable


Details


Material: Aluminum, Steel

Active Or Passive Suspension: Passive

Adjustable Compression: Yes

Adjustable Damping: Yes

Adjustable Rebound: No

Adjustable Ride Height: Yes

Assembled: Yes

Body Diameter: 2.5 Inch

Boot Included: No

Coil Over Springs Included: Yes

Compressed Length: 16.73

Cylinder Color: Silver

Cylinder Finish: Cadmium Plated

Cylinder Material: Steel

Damping Adjustment Type: Dual Speed/Manual

Damping Type: Oil

Dust Shield: No

Dust Shield Included: No

Extended Length: 22.08

Front Spring Rate: 700 Inch

Gas Charged: Yes

Grade Type: Performance

Includes Bump Stop: No

Internal Construction Type: Single Tube

Lower Mount Type: Eyelet

Maximum Lift: 3.5 Inch

Maximum Ride Height Raising Distance: 3.5

Minimum Lift: 1.25 Inch

Oem Wheels & Tires Fitment: Yes

Recommended Aftermarket Tires: 35 Inch X 12.50 Inch (Minor Fender Trimming And Modifications May Be Required)

Recommended Aftermarket Wheels: 17x8.5 Inch W/ 5.75 Inch Backspace / 25mm Offset

Remote Reservoir: Yes

Reservoir Style: Remote

Self Leveling: No

Service Parts: 252011 - 2.5 Piggyback/Remote Resi/Bypass Rebuild Kit

Shaft Diameter: 0.875

Shock Absorber Body End Measuring Point: Top Of Upper Mount Plate

Shock Absorber Rod End Measuring Point: Center Of Eylet

Spring Color: Black

Spring Material: Steel

Spring Rate Type: Linear

Travel Length: 5.36

Upper Mount Type: Mounting Plate

Valving Type: Digressive

Add On Part: 252012 - -4 To -10 Hose Shield Kit, 198000 - 2 Pin Coilover Spanner Wrench Kit, 55156 - 22-25 Tundra/23-25 Sequoia/24-25 Gx550 Diff Drop Kit, 58461Dj - 22-25 Tundra/23-25 Sequoia Tubular UCA Dj Pro Kit, 198001 - Billet Spanner Wrench Kit, 58561Dj - 22-25 Tundra/23-25 Sequoia Billet UCA Dj Pro Kit, 55164 - 22-25 Tundra/23-24 Sequoia Aluminum Skid Plate Spacer Kit, 55154 - 22-25 Tundra/23-25 Sequoia Sway Bar Drop Kit, 191003 - Icon Short 2.5 Coil Wrap W/Logo Pair (11.25-12.25)



Detailed Fitment Results
Year Make Model Engine Fuel 2022 Toyota Tundra 3.4L GAS 2022 Toyota Tundra 3.5L ELECTRIC / GAS 2022 Toyota Tundra 3.5L GAS 2023 Toyota Tundra 3.4L GAS 2023 Toyota Tundra 3.5L GAS 2024 Toyota Tundra 3.4L GAS 2025 Toyota Tundra 3.4L GAS
