Toyota (4WD/RWD) Coilover Spring and Shock Assembly - ICON Vehicle Dynamics - 58770

COILOVER KIT
58770
OEM Wheels and Tires Fitment: Yes
Recommended Aftermarket Wheels: ICON Alloys - 17x8.
5" w/ 5.
75” Backspace / 25mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 18x9" with 6.
00” Backspace / 25mm Offset
Recommended Aftermarket Tires: 35" x 12.
50" (Minor fender trimming and modifications may be required)
APPLICATION NOTE #55: Shocks are fully serviceable.
Lift heights indicated are for a stock equippedvehicle.
APPLICATION NOTE #85: Advertised lift height ranges are for a stock equipped vehicle.
Increasing weight of vehicle due to accessories will alter lift range.
APPLICATION NOTE #146: Tundra SR5 equipped with TRD Sport package lift range will be 2.
25-4.
5"
APPLICATION NOTE #148: ICON does not recommend lifting above 2.
25" (Tundra)/3.
75" (Sequoia) without an ICON upper control arm, failure to do so can result in improper wheel alignment and cause damage to front axles on 4WD models
APPLICATION NOTE #149: For 4WD models without TRD Off-Road package ICON recommends using ICON Diff Drop (Part# 55156) or using Toyota TRD axles (Part# 434200C020 Driver / 434100C020 Pass).
Failure to do so could result in front axle damage.
Not required for TRD Pro.
APPLICATION NOTE #153: Not compatible with Adaptive Variable Suspension (AVS) equipped vehicles
APPLICATION NOTE #155: Requires recalibration of Advanced Driver Assistance Systems (ADAS) after install
APPLICATION NOTE #171: If equipped with TRD aluminum skid plate part # 55164 is also required
APPLICATION NOTE #188: Not compatible with OE TRD billet front upper control arms regardless of lift height.
Vehicles equipped with these will require ICON Delta Joint Pro UCAs (part number 58461DJ or 58561DJ) for fitment.
TECH NOTE: Most Tundra sub-models equipped with i-Force gasoline engine will have front lift height range of 1.
25-3.
5" over stock
TECH NOTE: Most Tundra sub-models equipped with i-Force MAX hybrid engine will have front lift height range of.
75-3" over stock
TECH NOTE: Tundra TRD Pro will have front lift height range of 0-1.
75" over stock
TECH NOTE: Most Sequoia sub-models will have front lift height range of 3-4.
5" over stock.
Submodels equipped with TRD Off-Road Package or TRD Pro will have front lift height range of 1-2.
5" over stock.
TECH NOTE: Tundra lift heights above 2.
25” require sway bar drop bracket kit part number 55154.
Required for all lift heights on Tundra TRD Pro and Sequoia.
When installing 55154 on model equipped with TRD Off-Road package or TRD Pro, part number 55164 is also required.

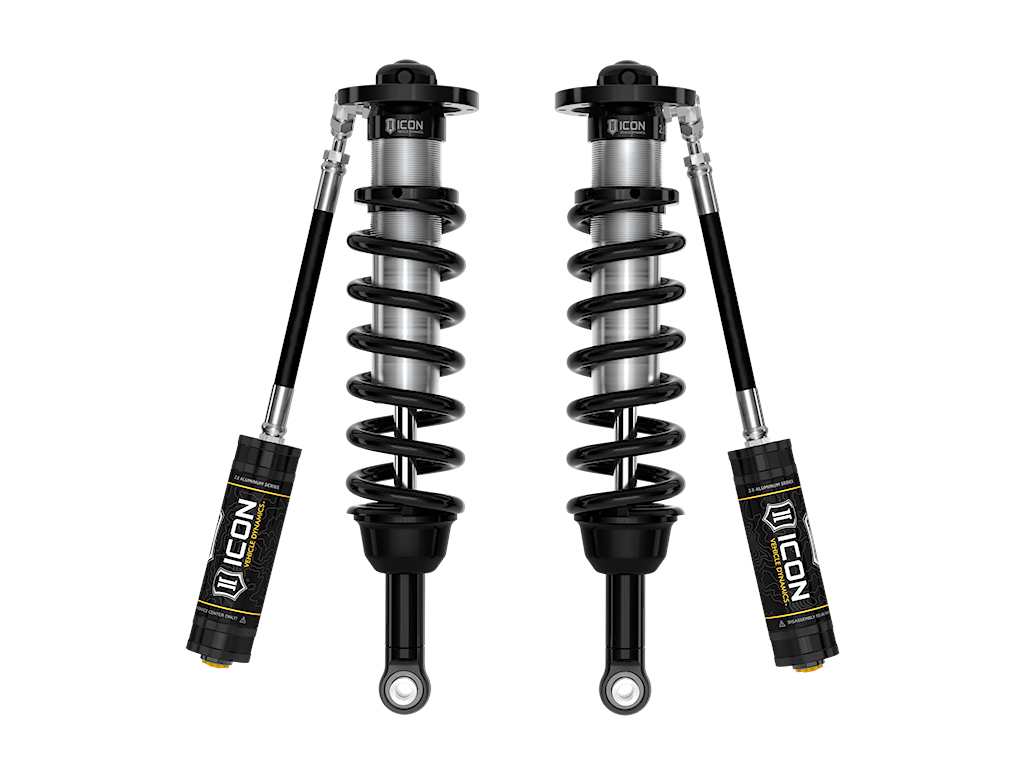

22-25 TUNDRA/23-25 SEQUOIA 2.
5 VS RR COILOVER KIT
ICON’s Vehicle-specific shock length and valving along with the larger 2.
5” shock body and increased piston area over stock yield the maximum travel possible along with superior ride quality and suspension performance both on- and off-road.
ICON Vehicle Dynamics V.
S.
2.
5 Series remote reservoir front coilover shocks are an incredible upgrade for the front end of the 2022-2025 Toyota Tundra or 2023-2025 Toyota Sequoia.
These adjustable coilovers allow up to 1.
25-3.
5” of lift height adjustability on Tundra or 3-4.
5" of lift on Sequoia, allowing the use of larger, more aggressive wheel and tire combinations.
ICON’s Vehicle-specific shock length and valving along with the larger 2.
5” shock body and increased piston area over stock components yield the maximum travel possible along with superior ride quality and suspension performance both on- and off-road.
Reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade.
When paired with ICON 2.
0 or 2.
5 Aluminum Series rear coilovers vehicle control will be balanced front to rear, resulting in the best overall driving experience for your Toyota Tundra or Sequoia.
Increased wheel travel and improved ride quality over stock
Vehicle specific tuned for superior shock damping and control
Adjustable up to 1.
25-3.
5" of front lift height over stock (Tundra) or 3-4.
5" of lift over stock (Sequoia)
Remote reservoirs maintain cooler operating temperatures during extended off-road use
ICON engineered coil springs
6061 Aircraft grade aluminum CNC machined components
Corrosion resistant CAD plated shock bodies with 7/8" diameter shafts
FK rod end bearings for extended longevity and minimal deflection
Fully rebuildable and re-tunable
100% Bolt-on - no drilling, cutting or welding necessary for installation
ICON 2022-2025 Toyota Tundra 1.
25-3.
5" Lift/2023-2025 Sequoia 3-4.
5" Lift, Front, V.
S.
2.
5 Series Coilover Kit, Remote Reservoir, Pair, 58770
ICON 2022-2025 Toyota Tundra 1.
25-3.
5" Lift/2023-2025 Sequoia 3-4.
5" Lift, Front, V.
S.
2.
5 Series Coilover Kit, Remote Reservoir, Pair
ICON 22-25 TUNDRA/23-25 SEQUOIA 2.
5 VS RR COILOVER KIT.

Detailed Fitment Results
Year Make Model Submodel Qualifiers Fitment Notes 2022 Toyota Tundra SR 2022 Toyota Tundra Limited ; ; 2022 Toyota Tundra 1794 Edition ; ; 2022 Toyota Tundra SR5 2022 Toyota Tundra TRD Pro 2022 Toyota Tundra Platinum ; ; 2022 Toyota Tundra SR5 TRD Off-Road 2022 Toyota Tundra SR TRD Off-Road 2022 Toyota Tundra Limited TRD Off-Road 2022 Toyota Tundra Platinum 1794 Edition 2023 Toyota Tundra SR 2023 Toyota Tundra Limited ; ; 2023 Toyota Tundra 1794 Edition ; ; 2023 Toyota Tundra SR5 2023 Toyota Tundra TRD Pro 2023 Toyota Tundra Platinum ; ; 2023 Toyota Sequoia Capstone 2023 Toyota Sequoia Limited 2023 Toyota Sequoia SR5 2023 Toyota Sequoia TRD Pro 2023 Toyota Sequoia Platinum 2023 Toyota Sequoia TRD Off-Road 2024 Toyota Tundra SR 2024 Toyota Tundra Limited ; ; 2024 Toyota Tundra 1794 Edition ; ; 2024 Toyota Tundra SR5 2024 Toyota Tundra TRD Pro 2024 Toyota Tundra Platinum ; ; 2024 Toyota Tundra TRD Off-Road 2024 Toyota Sequoia Capstone 2024 Toyota Sequoia Limited 2024 Toyota Sequoia SR5 2024 Toyota Sequoia TRD Pro 2024 Toyota Sequoia Platinum 2025 Toyota Tundra SR 2025 Toyota Tundra Limited ;…
