Toyota Coilover Spring and Shock Assembly - Front - ICON Vehicle Dynamics - 58755

COILOVER KIT
58755
OEM Wheels and Tires Fitment: Yes
Recommended Aftermarket Wheels: ICON Alloys - 17x8.
5" w/ 5.
75” Backspace / 25mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 6.
00” Backspace / 25mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.
625” Backspace / 16mm Offset
Recommended Aftermarket Tires: 35" x 12.
50" (Larger tires may fit but fender trimming and modifications will be required.
)
APPLICATION NOTE #18: These systems are to be used with aftermarket upper control arms ONLY
APPLICATION NOTE #55: Shocks are fully serviceable.
Coilover heights indicated are for a stock equipped vehicle
APPLICATION NOTE #110: Trimming required for recommended tire size
APPLICATION NOTE #111: Bump stop spacer kit available that can be installed to increase threads showing beyond max recommendation.
07-21 TUNDRA/08-22 SEQUOIA 3.
0 VS RR CDCV COILOVER KIT

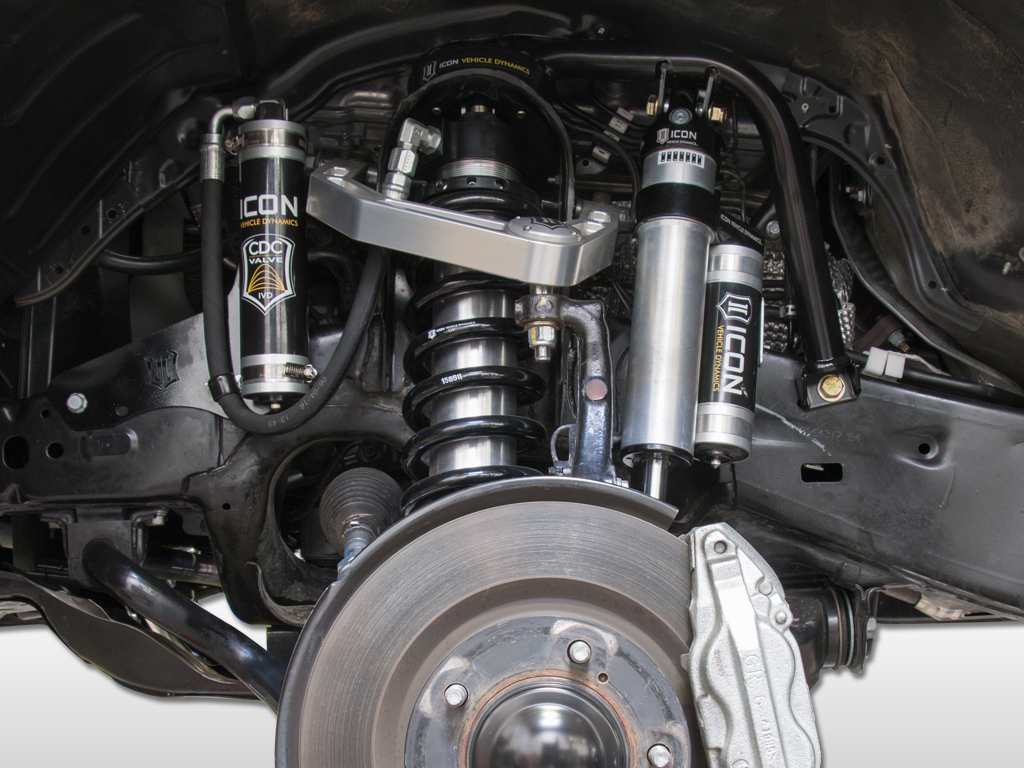

These ICON coilovers feature 3.
0 Series shocks and coil springs optimized for this application.
The shock’s larger 3.
0” body and increased piston area improves damping ability and ride quality across varying types of terrain.
While ICON’s 2.
5 Series coilovers are an excellent choice for drivers looking for a great all-around performance upgrade, there are a select few drivers seeking to drive their vehicles in a manner and in terrain that beckons for more.
The ICON Vehicle Dynamics 2007-2021 Toyota Tundra/2008-2022 Toyota Sequoia 3.
0 Series Coilover Kit was designed to take the off-road capability of the truck to new levels by increasing wheel travel and significantly improving the damping ability of the front shocks.
Compared to the 2.
5” diameter coilovers the 3.
0 Series shocks see a piston surface area increase of 50% in the ride zone, and 100% in the “Bump Zone”.
This translates into increased stability and vehicle control at the extremes of off-road use, with benefits also making themselves apparent in on-road driving conditions.
The multi-stage hydraulic Bump Zone featured in these 3.
0 Series shocks exponentially increases bottom-out resistance as the shock travels through the last 40% of travel, keeping vehicle dynamics in check during those hard hits or unexpected obstacles.
These 3.
0 Series coilovers were designed as an OEM shock replacement, making install a simple and straightforward bolt-on affair.
Built in ride height adjustability yields 1.
63-3.
5” of front lift height allowing for the fitment of larger, more aggressive wheel and tire combinations.
First class ICON manufacturing processes and quality components such as ICON engineered coil springs and FK Rod End bearings are used to ensure these shocks function to their maximum potential without issue.
Significant increase in damping ability for excellent performance in extreme off-road conditions
Adjustable coilovers provide 1.
63-3.
5” of front lift height over stock
Increased wheel travel and vehicle specific valving provides comfortable and consistent ride quality on and off-road
ICON’s multi-stage, tunable hydraulic “Bump Zone” exponentially increases bottom-out resistance in the last 40% of compression travel
Easy-to-adjust CDC Valve (Compression Damping Control) allows for end-user compression changes to suit all types of terrain and vehicle cargo configurations
10” aluminum reservoirs provide generous oil and nitrogen volume for consistent damping with temperature increase
High quality ICON-engineered coil springs offer increased travel and performance
PTFE lined COM12 spherical bearings ensure maximum strength and durability
Heavy duty 1” CNC machined shock shafts
Multi stage CAD plated shock body with hard anodized piston and top cap
Direct bolt-in to OEM shock location makes for an easy install
Fully serviceable
“ICON 1K” tested under rigorous off-road conditions to validate tune, performance, strength, and durability
ICON 2007-2021 Toyota Tundra/2008-2022 Toyota Sequoia, V.
S.
3.
0 Series Coilover Kit, Remote Reservoir w/ CDCV, 58755
ICON 2007-2021 Toyota Tundra/2008-2022 Toyota Sequoia, V.
S.
3.
0 Series Coilover Kit, Remote Reservoir w/ CDCV
ICON 07-21 TUNDRA/08-22 SEQUOIA 3.
0 VS RR CDCV COILOVER KIT.

Detailed Fitment Results
Year Make Model 2007 Toyota Tundra 2008 Toyota Tundra 2008 Toyota Sequoia 2009 Toyota Tundra 2009 Toyota Sequoia 2010 Toyota Tundra 2010 Toyota Sequoia 2011 Toyota Tundra 2011 Toyota Sequoia 2012 Toyota Tundra 2012 Toyota Sequoia 2013 Toyota Tundra 2013 Toyota Sequoia 2014 Toyota Tundra 2014 Toyota Sequoia 2015 Toyota Tundra 2015 Toyota Sequoia 2016 Toyota Tundra 2016 Toyota Sequoia 2017 Toyota Tundra 2017 Toyota Sequoia 2018 Toyota Tundra 2018 Toyota Sequoia 2019 Toyota Tundra 2019 Toyota Sequoia 2020 Toyota Tundra 2020 Toyota Sequoia 2021 Toyota Tundra 2021 Toyota Sequoia 2022 Toyota Sequoia
