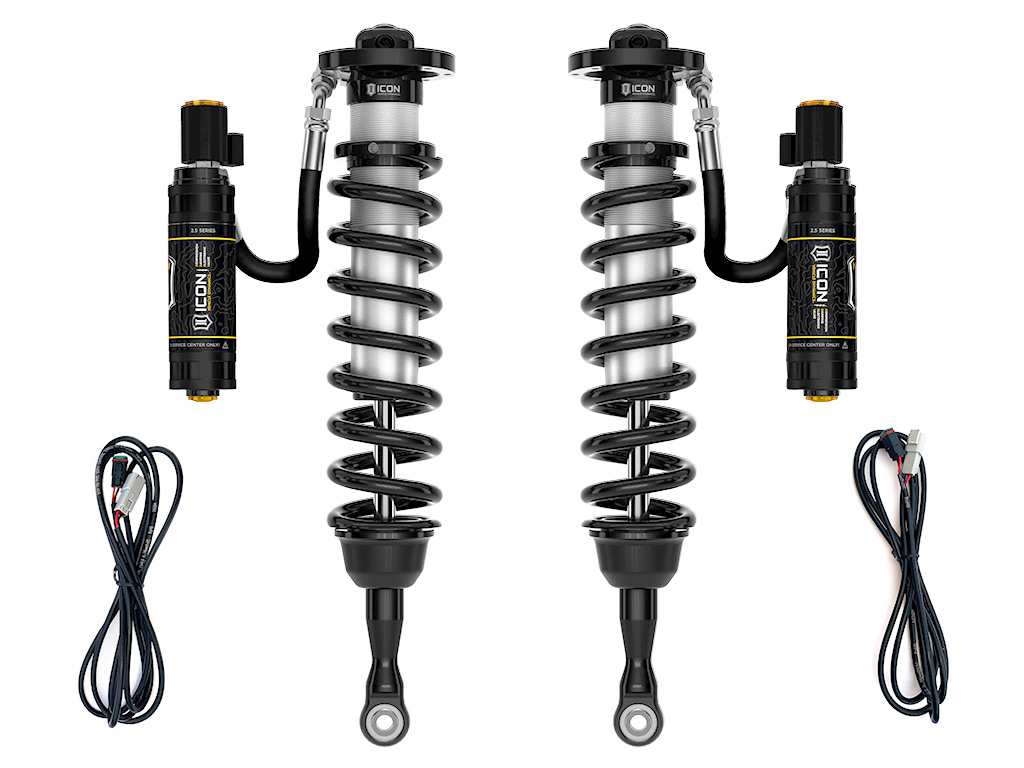

14-21 Toyota Tundra Coilover Spring and Shock Assembly - Front - ICON Vehicle Dynamics - 58750E

COILOVER KIT
TUNDRA 2.
5 VS RR CDEV COILOVER KIT
OEM Wheels and Tires Fitment: Yes
Recommended Aftermarket Wheels: ICON Alloys - 17x8.
5" w/ 5.
75” Backspace / 25mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 6.
00” Backspace / 25mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.
625” Backspace / 16mm Offset
Recommended Aftermarket Tires: 35" x 12.
50" (Larger tires may fit but fender trimming and modifications will be required.
)
TECH NOTE: Also requires installation of IIC kit (Part # 53506) and CDEV rear shocks (Part # 57823EP)
TECH NOTE: Only compatible with models equipped with 5.
7L V8 engine
14-21 TUNDRA 2.
5 VS RR CDEV COILOVER KIT
2014-2021 TOYOTA TUNDRA 2.
5 VS REMOTE RESERVOIR CDEV COILOVER KIT
The ICON Vehicle Dynamics V.
S.
Series 2.
5” remote reservoir coilover shocks w/ CDCV are an incredible upgrade for the front end of the 2014-2021 Toyota Tundra.
ICON’s Vehicle-specific valving provides a sport tuned feel on and off-road while offering 1-3” of lift height adjustability for use of larger, more aggressive wheel and tire combinations.
ICON's larger 2.
5” shock body and increased piston area over stock components provides improved damping ability and outstanding ride characteristics across varying types of terrain.
Remote reservoirs ensure optimum performance by increasing the duration of consistent damping regardless of situation, keeping the shocks at a cooler operating temperature during heavy use.
The ICON CDE Valve upgrade is included for those desiring an easy way to tune the ride electronically from inside the vehicle.
Compression Damping Electronic Valve (CDEV) is an electronically controlled valve that meters the flow of oil to regulate the amount of damping force that is created by the shock when compressed.
This infinitely variable valve can react in less than 40ms and has the ability to make extremely precise adjustments for varying terrain.
CDEV’s hydraulic circuits are also custom tailored per application to create the highest resolution and dynamic range allowable for each specific vehicle.
Powered by ICON Intelligent Control and proprietary ICON mobile app, the system uses information from the onboard G-force sensor and Gyroscope to perform calculations based on algorithms and user-defined settings to predict terrain and adjust shock settings via the CDEV accordingly.
ICON's CDE Valve technology allows for in vehicle adjustment of compression damping settings and active adjustment via the ICON Intelligent Control (IIC)
Increased wheel travel and ride quality over stock
Vehicle specific tuned for superior shock damping and control
Adjustable for 1-3" of lift height over stock
ICON engineered Eibach Springs
External reservoirs to attain cooler operating temperatures during extended off-road use
6061 Aircraft grade aluminum CNC machined components
Corrosion resistant CAD plated shock bodies with 7/8" induction hardened, chrome plated shafts
FK rod end bearings for extended longevity and minimal deflection
Bolt-on kit - no cutting or welding necessary for installation
100% Rebuildable
100% Revalveable
ICON 2014-21 Toyota Tundra, 2.
5 VS RR/CDEV Coilover Kit, 58750E
ICON 2014-21 Toyota Tundra, 2.
5 VS RR/CDEV Coilover Kit.

Detailed Fitment Results
Year Make Model 2014 Toyota Tundra 2015 Toyota Tundra 2016 Toyota Tundra 2017 Toyota Tundra 2018 Toyota Tundra 2019 Toyota Tundra 2020 Toyota Tundra 2021 Toyota Tundra
