Toyota Coilover Spring and Shock Assembly - Front - ICON Vehicle Dynamics - 58750C

COILOVER KIT
58750C
OEM Wheels and Tires Fitment: Yes
Recommended Aftermarket Wheels: ICON Alloys - 17x8.
5" w/ 5.
75” Backspace / 25mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 6.
00” Backspace / 25mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.
625” Backspace / 16mm Offset
Recommended Aftermarket Tires: 35" x 12.
50" (Larger tires may fit but fender trimming and modifications will be required.
)
APPLICATION NOTE #24: Factory UCA's will not align properly past 2.
5” of lift.
Above 2.
5” of lift an aftermarket UCA is recommended.
APPLICATION NOTE #55: Shocks are fully serviceable.
Coilover heights indicated are for a stock equipped vehicle
APPLICATION NOTE #110: Trimming required for recommended tire size
APPLICATION NOTE #111: Bump stop spacer kit available that can be installed to increase threads showing beyond max recommendation.

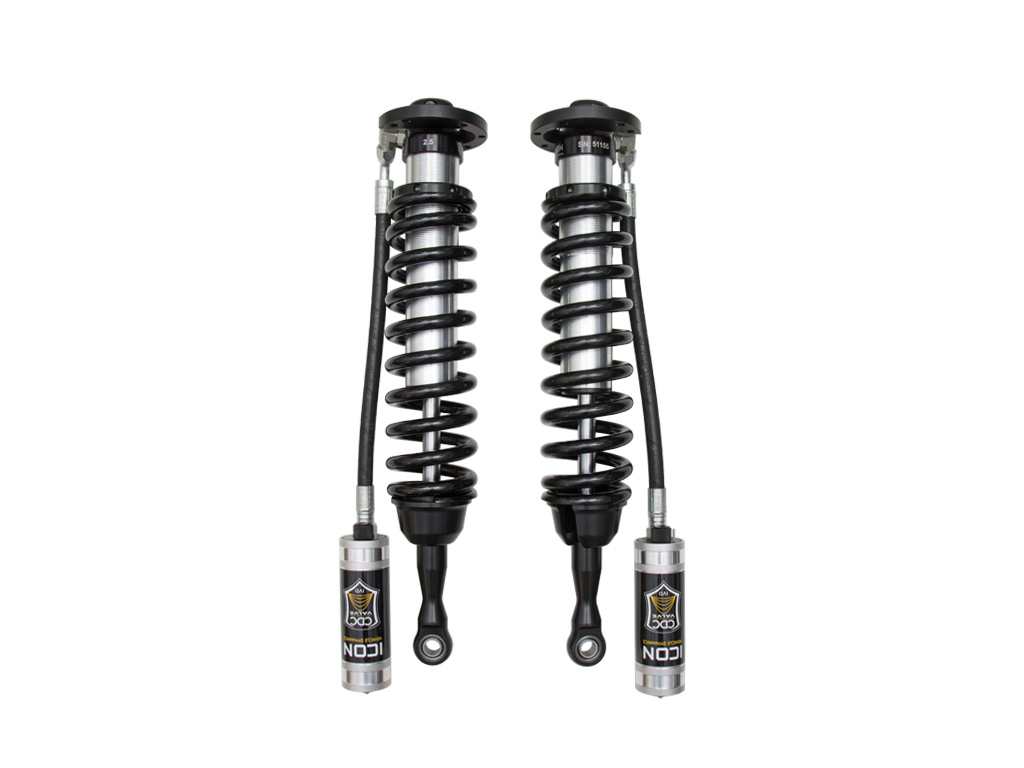

07-21 TUNDRA/08-22 SEQUOIA 2.
5 VS RR CDCV COILOVER KIT
These ICON coilovers feature 2.
5 Series shocks and coil springs optimized for this application.
The shock’s larger 2.
5” body and increased piston area improves damping ability and ride quality across varying types of terrain.
The ICON Vehicle Dynamics V.
S.
Series 2.
5” remote reservoir coilover shocks w/ CDCV are an incredible upgrade for the front end of the 2007-2021 Toyota Tundra and 2008-2022 Toyota Sequoia.
ICON’s Vehicle-specific valving provides a sport tuned feel on and off-road while offering 1-3” of lift height adjustability for use of larger, more aggressive wheel and tire combinations.
ICON's larger 2.
5” shock body and increased piston area over stock components provides improved damping ability and outstanding ride characteristics across varying types of terrain.
Remote reservoirs ensure optimum performance by increasing the duration of consistent damping regardless of situation, keeping the shocks at a cooler operating temperature during heavy use.
The ICON CDC Valve upgrade is included for those desiring an easy way to tune the ride externally with 10 adjustment settings from soft to hard.
When paired with ICON rear 2.
0 Aluminum Series or 2.
5 Series shocks, vehicle control will be balanced front to rear resulting in the best overall driving experience for your Tundra or Sequoia.
Vehicle specific tuned for superior shock damping, vehicle control, and improved ride quality over stock
Vehicle specific shock length yields maximum wheel travel
Height-adjustable coilovers offer 1.
-3" of lift height adjustment over stock
2.
5" diameter shock bodies with remote reservoirs
Remote reservoirs maintain cooler operating temperatures during extended off-road use
ICON CDCV equipped for 10 settings of external compression damping adjustment
ICON engineered coil springs
6061 Aircraft grade aluminum CNC machined components
Corrosion resistant CAD plated shock bodies with 7/8" diameter shafts
FK rod end bearings for extended longevity and minimal deflection
Fully rebuildable and re-tunable
ICON 2007-2021 Toyota Tundra/2008-2022 Toyota Sequoia, V.
S.
2.
5 Series Coilover Kit, Remote Reservoir w/ CDCV, 58750C
ICON 2007-2021 Toyota Tundra/2008-2022 Toyota Sequoia, V.
S.
2.
5 Series Coilover Kit, Remote Reservoir w/ CDCV
ICON 07-21 TUNDRA/08-22 SEQUOIA 2.
5 VS RR CDCV COILOVER KIT.

Detailed Fitment Results
Year Make Model 2007 Toyota Tundra 2008 Toyota Tundra 2008 Toyota Sequoia 2009 Toyota Tundra 2009 Toyota Sequoia 2010 Toyota Tundra 2010 Toyota Sequoia 2011 Toyota Tundra 2011 Toyota Sequoia 2012 Toyota Tundra 2012 Toyota Sequoia 2013 Toyota Tundra 2013 Toyota Sequoia 2014 Toyota Tundra 2014 Toyota Sequoia 2015 Toyota Tundra 2015 Toyota Sequoia 2016 Toyota Tundra 2016 Toyota Sequoia 2017 Toyota Tundra 2017 Toyota Sequoia 2018 Toyota Tundra 2018 Toyota Sequoia 2019 Toyota Tundra 2019 Toyota Sequoia 2020 Toyota Tundra 2020 Toyota Sequoia 2021 Toyota Tundra 2021 Toyota Sequoia 2022 Toyota Sequoia
