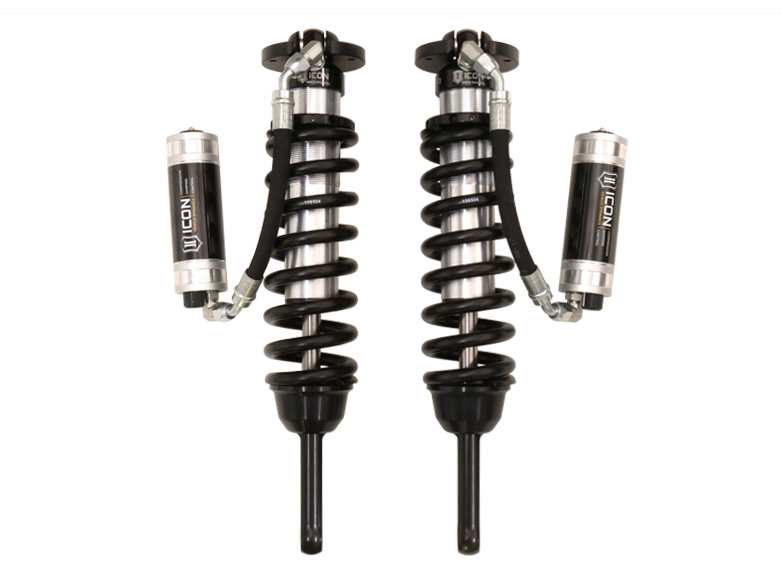

Lexus, Toyota Coilover Spring and Shock Assembly - Front - ICON Vehicle Dynamics - 58747C

COILOVER KIT
58747C
Factory Wheels and Tires Fitment: Yes
Recommended Aftermarket Wheels: ICON Alloys - 17x8.
5 w/ 4.
75" Backspace / 0mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 18x9 w/ 5" Backspace / 0mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 20x9 w/ 5" Backspace / 0mm Offset
Recommended Aftermarket Tires: 33" x 11.
50" (Larger Tires May Fit but Fender Trimming and Modifications will be Required)
APPLICATION NOTE #18: These systems are to be used with aftermarket upper control arms only.
APPLICATION NOTE #47: 700lb coil spring available for heavier equipped vehicles.
APPLICATION NOTE #55: Shocks are fully serviceable.
Lift heights indicated are for a stock equipped vehicle.
APPLICATION NOTE #111: Bump stop spacer kit available that can be installed to increase threads showing beyond max recommendation.
10-14 FJ/10-24 4RNR/10-23 GX EXT TRAVEL 2.
5 VS RR CDCV COILOVER KIT
These extended-travel ICON VS 2.
5 Series coilovers offer increased wheel travel but also require the installation of aftermarket upper control arms.
They are vehicle specific, 100% rebuildable, and 100% revalveable.
The ICON Vehicle Dynamics V.
S.
2.
5 Series remote reservoir coilover shocks are an incredible upgrade for the front end of the Toyota FJ Cruiser, 4Runner, and Lexus GX platforms.
ICON’s Vehicle-specific valving provides a sport tuned feel on and off-road while offering 0-3.
5” of lift height adjustability for use of larger, more aggressive wheel and tire combinations.
ICON's larger 2.
5” shock body and increased piston area over stock components provides improved damping ability and outstanding ride characteristics across varying types of terrain.
Remote reservoirs ensure optimum performance by increasing the duration of consistent damping regardless of situation, keeping the shocks at a cooler operating temperature during heavy use.
The ICON CDC Valve upgrade is included for those desiring an easy way to tune the ride externally with 10 adjustment settings from soft to hard.
These extended length versions offer increased wheel travel but also require the installation of aftermarket upper control arms in conjunction with the coilovers.
Adjustable coilovers yield 0-3.
5" of front lift height
Increased wheel travel and vehicle specific valving provides unrivaled ride quality across a wide range of on and off-road use
Extended Travel length requires installation of aftermarket front upper control arms
Superior low speed control reduces body roll and increases on-road stability
External reservoir to attain cooler operating temperatures during extended off-road use
ICON's CDC Valve technology allows for 10 levels of high-resolution compression adjustability with the turn of a knob
High quality ICON-engineered coil springs guaranteed for life against sagging or breaking
Corrosion resistant CAD plated shock body with 7/8" shaft
FK Rod End bearings provide extended longevity and minimal deflection
Fully serviceable design allows for revalves, rebuilds, and an immeasurable service life
Bolt-in design makes for an easy install into OEM shock location
ICON 2010-2024 Toyota 4Runner/2010-2014 FJ Cruiser/2010-2023 Lexus GX460, 0-3.
5" Lift, V.
S.
2.
5 Series Extended Travel Coilover Kit, Remote Reservoir w/ CDCV, 58747C
ICON 2010-2024 Toyota 4Runner/2010-2014 FJ Cruiser/2010-2023 Lexus GX460, 0-3.
5" Lift, V.
S.
2.
5 Series Extended Travel Coilover Kit, Remote Reservoir w/ CDCV
ICON 10-14 FJ/10-24 4RNR/10-23 GX EXT TRAVEL 2.
5 VS RR CDCV COILOVER KIT.

Detailed Fitment Results
Year Make Model 2010 Lexus GX460 2010 Toyota 4Runner 2010 Toyota FJ Cruiser 2011 Lexus GX460 2011 Toyota 4Runner 2011 Toyota FJ Cruiser 2012 Lexus GX460 2012 Toyota 4Runner 2012 Toyota FJ Cruiser 2013 Lexus GX460 2013 Toyota 4Runner 2013 Toyota FJ Cruiser 2014 Lexus GX460 2014 Toyota 4Runner 2014 Toyota FJ Cruiser 2015 Lexus GX460 2015 Toyota 4Runner 2016 Lexus GX460 2016 Toyota 4Runner 2017 Lexus GX460 2017 Toyota 4Runner 2018 Lexus GX460 2018 Toyota 4Runner 2019 Lexus GX460 2019 Toyota 4Runner 2020 Lexus GX460 2020 Toyota 4Runner 2021 Lexus GX460 2021 Toyota 4Runner 2022 Lexus GX460 2022 Toyota 4Runner 2023 Lexus GX460 2023 Toyota 4Runner 2024 Toyota 4Runner
